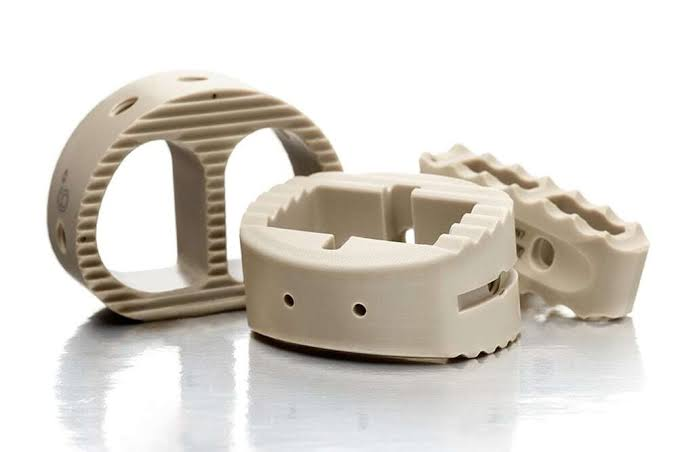

At Dongguan PRES Group Co., Ltd., we manufacture and supply high-performance PEEK materials—including PEEK granules, sheets, rods, tubes, powders, and 3D-printing filaments—for overseas brands, wholesalers, and manufacturers requiring dependable OEM support. For demanding components such as large PEEK sealing rings, bearing rings, wear rings, and electrically insulating rings, annealing PEEK machined parts is not an optional finishing step. It is a controlled engineering process that helps prevent internal-stress cracks, dimensional movement, ovality, and premature field failure.
Large rings are especially sensitive because they combine thick cross-sections, long machining paths, interrupted cuts, internal and external diameters, and sometimes tight roundness or concentricity requirements. A ring can appear perfect immediately after CNC machining, then distort, crack, or drift out of tolerance hours or days later as residual stress redistributes. The solution is not simply "heat the part." It is to control material selection, blank conditioning, rough machining, annealing, cooling, final machining, inspection, and service validation as one integrated process.
PRES helps customers reduce this risk from the beginning by supplying suitable PEEK stock shapes and supporting OEM projects with material, machining, and process-oriented thinking.
PEEK is a high-performance semi-crystalline thermoplastic valued for its heat resistance, chemical resistance, wear performance, electrical insulation, and mechanical strength. Those same characteristics make it highly suitable for demanding industries—but they also mean that processing history matters.
Residual stress may already exist in extruded rod, sheet, tube, compression-molded blanks, injection-molded preforms, or previously machined components. Additional stress can be introduced during CNC turning, milling, boring, drilling, slotting, clamping, and uneven cooling.
For a large ring, the stress field is rarely uniform. Material near the outer diameter, inner diameter, faces, and local features may respond differently during machining or heat exposure. Once material is removed, internal stress can rebalance. That release may produce:
- Radial cracking, often starting at sharp corners, tool marks, holes, slots, or notches.
- Hoop-stress cracking, especially in thick-wall rings with high residual stress.
- Ovality, where a circular ring becomes slightly egg-shaped after unclamping or after temperature exposure.
- Face warpage, which affects flatness, sealing performance, and axial runout.
- Dimensional drift, where ID, OD, wall thickness, or groove dimensions change after final inspection.
- Delayed cracking, in which a component looks acceptable after machining but develops visible damage later.
The risk increases when a ring has a large diameter, a thick radial wall, thin local sections, deep grooves, windows, bolt holes, abrupt geometric transitions, or very tight tolerance requirements.
Material suppliers and machining guidance consistently identify annealing as a method to reduce stress, improve dimensional stability, and increase or stabilize crystallinity in PEEK components. Victrex specifically recommends annealing very thick sections to relieve stress, while machining specialists commonly recommend an additional annealing cycle after semi-finishing or rough machining where internal stress is likely to be released.
A crack is often treated as a machining defect. In many large PEEK rings, however, machining is only the moment when a deeper material issue becomes visible.
PEEK sheet, rod, and tube may retain stress from extrusion, molding, cooling gradients, forming pressure, or inconsistent thermal history. If the surface solidifies and cools differently from the core, the polymer structure can retain locked-in stress.
This does not automatically mean the stock is defective. It means the material must be matched to the component's geometry, tolerance, machining allowance, operating temperature, and reliability target.
At PRES, we recommend reviewing the following before starting a large-ring project:
| Project factor | Why it matters for PEEK rings |
|---|---|
| Material grade | Unfilled PEEK, glass-filled PEEK, carbon-filled PEEK, and bearing grades can respond differently to machining and heat treatment |
| Starting stock form | Sheet, tube, rod, molded blank, or near-net preform creates different stress and machining conditions |
| Maximum wall thickness | Thick sections need more time for uniform heat penetration and controlled cooling |
| Final tolerances | Tight ID, OD, concentricity, flatness, and roundness call for staged machining and stabilization |
| Service temperature | Thermal cycling can reveal stress that was not apparent at room temperature |
| Chemical environment | Chemicals, pressure, and elevated temperature can accelerate crack propagation from surface damage |
| Ring features | Grooves, holes, thin bridges, sharp transitions, and keyways create stress concentrations |

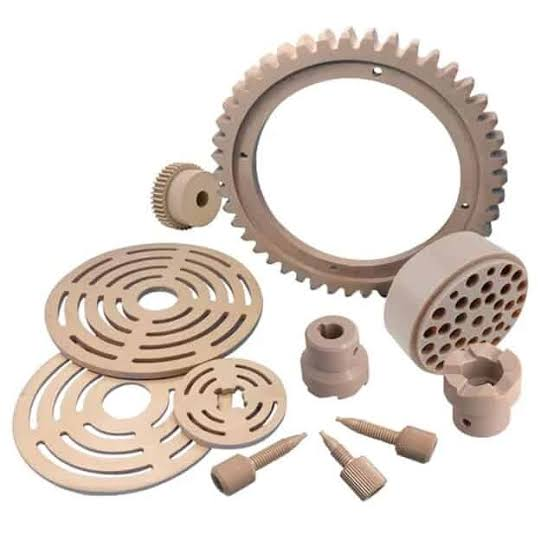

Even well-made PEEK stock can become stressed during aggressive CNC machining. Frictional heat, dull tooling, heavy cuts, excessive clamping, poor chip evacuation, and unsuitable cutting parameters can all introduce new stress.
A large ring is particularly vulnerable when the operator removes most of the material from one side before machining the opposite side. This creates an imbalance: one region is relieved or heated more than another, and the ring moves.
Common machining-related causes include:
- High material-removal rates without enough stabilization time.
- Deep cuts that create excessive local heat.
- Dull inserts or tools that rub instead of cut cleanly.
- Over-tight chuck jaws, fixtures, expanding mandrels, or clamps.
- Insufficient support of a thin or large-diameter ring.
- One-sided roughing that leaves uneven wall thickness.
- Final machining immediately after roughing, before the ring has stabilized.
- Sharp internal corners, small radii, and surface scratches that become crack initiation points.
For large rings, our preferred approach is usually multi-stage stabilization, not a single annealing cycle performed only at the end. The exact cycle must be validated according to the PEEK grade, initial stock condition, ring geometry, cross-sectional thickness, tolerance requirements, machining sequence, and end-use environment.
The basic objective is straightforward:
1. Heat the material gradually and uniformly.
2. Hold it long enough for the ring's full cross-section to reach a stable temperature.
3. Allow residual stress to relax without creating new thermal gradients.
4. Cool slowly and consistently.
5. Machine the stabilized part with low additional stress.
6. Verify dimensions after thermal equilibration.
Published PEEK machining and annealing guidance commonly emphasizes slow heating, controlled holding periods, and slow cooling rather than rapid thermal changes. Depending on the supplier, grade, and part dimensions, annealing schedules can include staged heating around 150°C and higher-temperature stress-relief stages around 190–200°C or above. The key point is that there is no one universal schedule for every PEEK ring. The thermal cycle must be engineered and qualified.
| Stage | Purpose | Practical control point |
|---|---|---|
| Material review | Match PEEK grade and stock to the application | Confirm grade, filler, dimensions, traceability, and expected service conditions |
| Pre-anneal blank | Reduce stock-form residual stress before major cutting | Use controlled ramp, soak, and cooling profile |
| Rough machining | Remove bulk material while preserving finishing allowance | Keep wall removal balanced across ID, OD, and faces |
| Intermediate anneal | Relax machining-induced stress before finish cuts | Particularly important for thick-wall or tight-tolerance rings |
| Finish machining | Achieve final dimensions with minimal heat and force | Use sharp tools, stable fixturing, light finishing cuts |
| Conditioning | Allow the component to reach inspection conditions | Stabilize at controlled ambient temperature before measurement |
| Final inspection | Confirm geometry and visible integrity | Check ID, OD, roundness, concentricity, flatness, and surface condition |
| Application validation | Confirm real-world reliability | Use thermal cycling, chemical exposure, pressure, or load testing as relevant |
For large, precision-machined PEEK rings, a two-stage annealing strategy often provides better stability than a single post-machining treatment.
The first cycle targets residual stress already present in the stock shape. This is especially relevant for thick PEEK plate, rod, tube, or near-net blanks.
A controlled circulating-air oven is normally preferred because uniform heat distribution is essential. The ring should be positioned so air can circulate around all surfaces. Avoid stacking rings tightly together or placing heavy parts in ways that restrict airflow.
Key controls include:
- Use a programmable oven with verified temperature uniformity.
- Support the ring evenly to avoid sagging, distortion, or point loading during heat treatment.
- Heat gradually rather than placing cold PEEK directly into a high-temperature oven.
- Soak according to the thickest effective cross-section, not only the ring's overall diameter.
- Cool slowly in a controlled manner; do not quench in water, forced cold air, or uncontrolled drafts.
- Record the thermal profile for repeatability and customer traceability.
A common industrial principle is that thick PEEK sections require longer soak times and conservative cooling rates because the core must reach thermal equilibrium before stress relaxation can occur. Guidance from plastic stock-shape specialists includes staged heating and thickness-dependent holding periods for PEEK.
Rough machining exposes new material and can release pre-existing stress. It may also create new thermal and mechanical stress from cutting and workholding. For that reason, the intermediate annealing cycle is frequently the difference between a ring that holds tolerance and one that changes shape after final machining.
After roughing, leave controlled stock for finishing. The correct allowance depends on component size, geometry, expected movement, tooling capability, and final tolerance. Do not assume a single allowance fits every design.
The intermediate cycle helps the rough-machined ring relax before final dimensions are created. After cooling and stabilization, finish machining can be performed using light, symmetrical cuts.
This sequence is especially valuable for:
- Large-diameter PEEK rings.
- Thick-wall rings.
- Rings with deep internal grooves.
- Components requiring tight circularity or concentricity.
- Parts exposed to elevated service temperatures.
- Sealing rings where flatness and groove accuracy affect performance.
- Rings with thin sections beside thick sections.
- High-value parts where scrap or field failure is costly.
Annealing does not compensate for poor machining practice. A strong process combines stress-relieved PEEK stock with low-stress cutting methods.
Remove material as evenly as possible from the OD, ID, and faces. Avoid aggressively machining one surface while leaving the opposing area untouched. Balanced removal reduces the chance of uneven stress release.
For example, instead of fully finishing the outside diameter first, use staged passes across the OD and ID so the remaining wall stays more uniform throughout the operation.
PEEK benefits from clean cutting action. Worn tools generate friction and heat, which can smear the polymer surface, create stress, and reduce dimensional control.
Use tooling designed for plastics or carefully selected geometries for polymer machining. Maintain sharp cutting edges and monitor tool wear. A clean chip is usually a better sign than a melted, stringy, or discolored cutting zone.
PEEK has excellent heat resistance, but local frictional heat can still damage surface quality or create thermal gradients. Use machining parameters that prioritize controlled cutting over maximum removal rate.
Potential controls include:
- Moderate cutting speeds appropriate to the tool and geometry.
- Light finishing passes.
- Controlled feeds that prevent rubbing.
- Air blast or suitable cooling strategy when compatible with the process.
- Effective chip removal from deep bores and grooves.
- Pauses between heavy operations when a large ring becomes warm.
A large ring can be forced out of round by the fixture itself. Once unclamped, it may spring back and measure out of tolerance.
Use soft jaws, segmented fixtures, low-distortion mandrels, or custom supports designed around the ring geometry. Apply only the clamping force needed to resist cutting loads. Check roundness both in-fixture and after release when practical.
Sharp corners, scratches, abrupt wall transitions, and poorly finished grooves can become crack initiation sites. Add radii where the design permits. Avoid unnecessary tool marks. Inspect critical ID grooves, bolt holes, and transitions under appropriate lighting and magnification.
Before releasing a large PEEK machined part, use this practical checklist:
- Confirm the PEEK grade is correct for temperature, chemical, load, wear, and electrical requirements.
- Select annealed or anneal-capable PEEK stock with documented material traceability.
- Review the ring's thickest section, thin areas, grooves, and sharp transitions before defining the thermal cycle.
- Pre-anneal the blank when stock stress, thickness, geometry, or tolerance requirements justify it.
- Rough machine with balanced removal from ID, OD, and faces.
- Keep sufficient material for final finishing after stabilization.
- Perform intermediate annealing after rough machining for critical or large rings.
- Use sharp tools and avoid excessive frictional heat.
- Use low-distortion workholding and avoid over-clamping.
- Allow the part to stabilize at controlled inspection conditions before final measurement.
- Inspect roundness, concentricity, flatness, surface finish, groove geometry, and visible cracking.
- Perform application-relevant thermal cycling or environmental testing for mission-critical components.
A single cycle may be insufficient when the part is unusually large, thick, heavily machined, tightly toleranced, or expected to operate under harsh thermal conditions.
Consider additional process development when:
- The ring moves noticeably after unclamping.
- Final dimensions drift after 24 hours.
- Ovality returns after thermal exposure.
- Fine cracks appear near grooves, holes, or sharp corners.
- The ring is used in hot chemical service, high-pressure sealing, aerospace, semiconductor, oil and gas, medical, or high-voltage electrical applications.
- Material removal is high relative to the original blank size.
- The ring combines thick and thin sections.
- A filled PEEK grade changes machining behavior or thermal response.
A useful engineering practice is to measure the ring at several points: after rough machining, after intermediate annealing, after finish machining, and after a defined conditioning period. This creates a dimensional movement record. It also helps identify whether the main problem originates from stock stress, machining stress, fixture distortion, or thermal exposure.
PRES is positioned to support OEM customers that need more than a generic plastic material supplier. We understand that a high-performance PEEK ring is not only a product; it is the outcome of material selection, stock quality, process control, dimensional strategy, and clear communication.
Our product range supports multiple routes to a finished PEEK component:
- PEEK resin granules for processing and compounding applications.
- PEEK sheets for CNC-machined rings, plates, seals, and structural components.
- PEEK rods for turned rings, bushings, bearings, and custom components.
- PEEK tubes for tubular parts and ring blanks.
- PEEK powders for specialty processing requirements.
- High-performance PEEK 3D-printing filament for prototyping and additive manufacturing applications.
- OEM-oriented support for overseas brands, wholesalers, distributors, and manufacturers.
For large-ring projects, our team can help you discuss the material grade, required stock form, ring geometry, potential annealing route, machining allowance, and inspection requirements before production begins. This early-stage collaboration helps prevent expensive rework later.
Need a stable, crack-resistant PEEK ring for your application? Contact Dongguan PRES Group Co., Ltd. with your drawing, material grade, annual quantity, tolerance requirements, operating environment, and target delivery schedule. We will help you evaluate the right PEEK stock and OEM manufacturing route for your project.
PEEK rings can crack after machining because residual stress from extrusion, molding, cooling, machining heat, or excessive clamping is released unevenly. Cracks often begin at stress concentrators such as sharp corners, grooves, holes, scratches, and abrupt section changes.
For large, thick, or precision PEEK rings, the strongest approach is often both: anneal the blank before major material removal, then perform a second annealing cycle after rough machining and before final machining. This reduces stock-related stress and machining-induced stress.
The appropriate annealing temperature depends on the PEEK grade, stock form, part thickness, prior processing history, and performance requirements. Published guidance includes staged thermal cycles involving approximately 150°C pre-drying or stress-relief stages and higher annealing stages around 190–200°C or more. The cycle should be validated for the specific project rather than copied blindly.
Yes. Rapid cooling can create temperature gradients between the ring surface and core, which can lock in or introduce new stress. Controlled, slow cooling is a central requirement of a reliable annealing process for thick or large PEEK parts.
Yes. Proper annealing can reduce residual stress and help stabilize the semi-crystalline structure of PEEK. This can reduce post-machining movement, warpage, and dimensional drift, particularly in thick sections and tight-tolerance components.
Not necessarily. Glass-filled, carbon-filled, PTFE-filled, and bearing-grade PEEK can have different thermal conductivity, stiffness, anisotropy, machining behavior, and stress response. Their annealing and machining plans should be reviewed separately.
Use a stress-relieved blank, remove material symmetrically, avoid excessive chuck force, perform intermediate annealing after rough machining, use stable low-distortion fixturing, finish-machine with light cuts, and measure the ring after it has stabilized outside the fixture.
1. Victrex. [PEEK Polymers from Victrex]. Discusses PEEK processing and recommends annealing for very thick sections to relieve stress. [victrex]
2. Victrex. [VICTREX PEEK Finishing Operations Guide]. Technical resource covering finishing operations for PEEK. [victrex]
3. Advanced EMC Technologies. [Guidelines for Machining PEEK, PAI and Other Advanced Polymers]. Provides machining guidance, discusses residual-stress release, intermediate annealing, skim cuts, and controlled machining practices. [advanced-emc]
4. Boedeker Plastics. [Annealing Guidelines for Plastic Stock Shapes]. Provides PEEK annealing guidance using staged heating, thickness-related holding times, and controlled cooling. [boedeker]
5. ECOREPRAP. [What Is Annealing PEEK for Machining?]. Describes a staged PEEK annealing approach, including gradual heating, soaking, and slow cooling. [ecoreprap]
6. Sage Journals. [The Effect of Cooling Rate and Annealing on Residual Stress]. Research addressing the relationship between cooling rates, annealing, and residual stress in polymer composites. [journals.sagepub]
7. ScienceDirect. [Optimizing Annealing Temperature and Hold Time for PEEK]. Discusses heat treatment as a way to increase crystallinity, relieve residual stresses, and stabilize semi-crystalline PEEK materials. [sciencedirect]
