Uncontrolled electrostatic discharge (ESD) remains one of the costliest hidden threats in advanced manufacturing, particularly within microelectronics, semiconductor fabrication, and hazardous, potentially explosive environments. As an industry-leading provider of high-performance engineering plastics, PRES (Professional Engineering Solutions) recognizes that achieving reliable static protection requires more than just "off-the-shelf" materials—it demands precise material engineering, rigorous testing, and a deep understanding of application-specific performance requirements.
This guide provides a deep dive into the engineering principles of ESD plastics, helping design engineers, procurement specialists, and safety managers navigate the complex landscape of high-performance polymers.
At its core, ESD is the rapid, spontaneous transfer of electrostatic charge between two bodies at different potentials [intertek] . In industrial environments, this is typically induced by high electrostatic fields generated during handling, assembly, or storage . To mitigate this, materials are engineered to manage the flow of electrons, either by preventing charge buildup or by dissipating existing charges in a controlled manner [intertek].

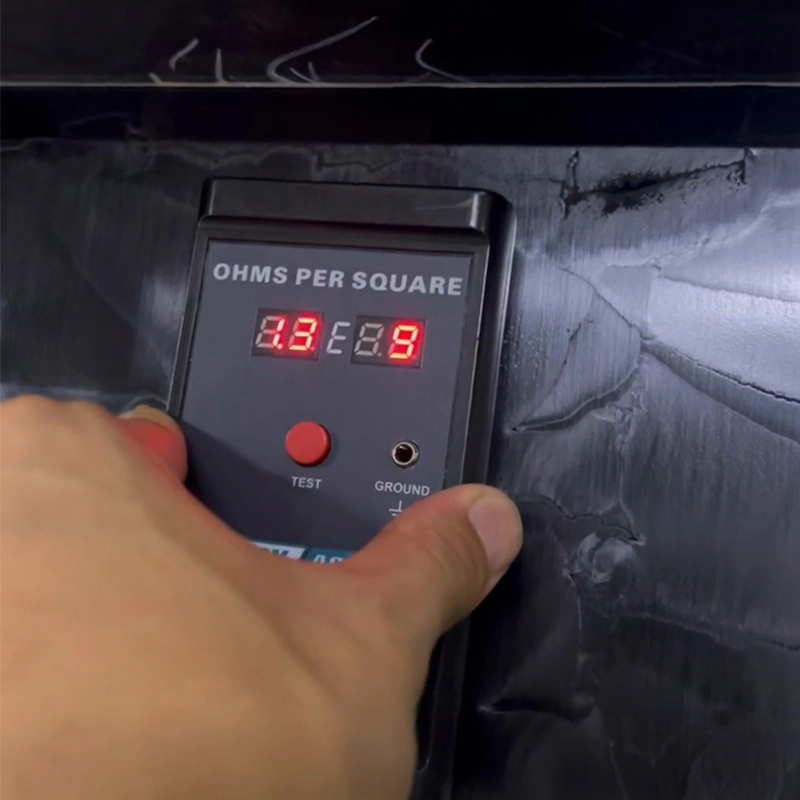

The most critical metric for evaluating an ESD plastic is its surface resistivity and volume resistivity. According to industry norms, materials are classified into three primary functional categories based on their electrical properties:
| Material Type | Surface Resistivity ($\Omega$/sq) | Functional Description |
|---|---|---|
| Conductive | $< 10^5$ | Allows charges to flow easily; grounds static quickly intertek . |
| Static Dissipative | $10^5 - 10^{11}$ | Provides a controlled discharge, preventing sudden, damaging arcs intertek . |
| Insulative | $> 10^{12}$ | High electrical resistance; retains charge for extended periods; not suitable for ESD applications intertek. |
*Note: While Conductive materials ground static rapidly, they can sometimes trigger sudden discharge events, making Static Dissipative materials the preferred choice for many sensitive microelectronics applications because they "bleed off" charge in a controlled manner [intertek] .*
At PRES, we understand that electrical performance must never compromise mechanical integrity. Our high-performance polymers (PEEK, PPS, PPSU, PSU, PEI) are modified with proprietary conductive and anti-static additives to meet exact specifications without sacrificing their inherent "classic" traits.
- PEEK-ESD: The gold standard for extreme thermal and mechanical applications. Our PEEK-ESD series maintains dimensional stability, wear resistance, and high-temperature performance (up to 250°C), making it ideal for aerospace, medical device components, and wafer handling.
- PEI-ESD (Ultem®-based): Offers excellent mechanical strength, flame retardancy, and a wide processing window. PEI-ESD is frequently utilized in precision electronics enclosures and components requiring high-flow characteristics for thin-wall geometries.
- PPS-ESD: Known for high rigidity, high melting points (280°C), and exceptional chemical resistance, our PPS-ESD series provides a cost-effective solution for structural components in automotive and industrial sensors.
For facilities handling flammable liquids, gases, or explosive dusts, selecting the correct material is a safety imperative—not just a quality assurance task [polyonics].
1. Understand ATEX/EX Requirements: Many manufacturers erroneously believe a component needs "ATEX certification." In reality, ATEX regulations typically govern the *entire machine* or *system*. Components (like bearings or housings) must be selected based on their electrical conductivity to prevent charge buildup that could ignite an atmosphere [polyonics].
2. Beyond Surface Resistivity: While surface resistivity is a critical indicator, ensure your material supplier performs Volume Resistivity testing to guarantee consistent electrical performance through the entire cross-section of the part, not just the surface layer [intertek] .
3. The Humidity Factor: Surface resistance can fluctuate significantly with humidity . Ensure your material provider tests for stable resistivity performance across various environmental conditions.
PRES is not just a material supplier; we are your integrated manufacturing partner. By controlling the material formulation and the precision processing, we ensure total traceability and compliance with your technical specifications.
* Precision CNC Machining: Tailored for complex geometries, ensuring tight tolerances for high-precision components used in microelectronics handling.
* Injection Molding: Optimized for high-volume production, utilizing our proprietary ESD-modified resins to maintain consistent electrical properties part-to-part.
* Custom Fabrication: We work with your engineering team to determine the optimal balance of resistivity, thermal stability, and mechanical strength for your specific application.
1. [Infinita Lab: Surface & Volume Resistivity Testing (ASTM D257)]
2. [InchR ESD: ESD Materials for Static Protection - Complete Guide]
3. [IGUS: Bearings for ATEX or Explosive Environments - Expert Guide]
4. [Plastics Technology: Anti-Stat Compounds for Explosive Environments]
5. [Premix: Safety in ESD and ATEX Environments (Industry Whitepaper)]
1. Q: What is the difference between "Conductive" and "Static Dissipative" materials?
A: Conductive materials have lower resistivity ($< 10^5 \Omega$/sq) and ground charges rapidly, whereas Static Dissipative materials ($10^5 - 10^{11} \Omega$/sq) provide a slower, controlled discharge, which is safer for highly sensitive electronic components.
2. Q: Do I need ATEX certification for my plastic components?
A: Typically, no. ATEX regulations usually apply to the final machine or assembly. However, you must choose component materials that are electrically conductive to prevent the buildup of dangerous static charges, as required by the overall system's ATEX safety case.
3. Q: Why is volume resistivity important if surface resistivity is already measured?
A: Surface resistivity only measures the outer layer. Volume resistivity assesses the material's internal conductivity, ensuring consistent static protection throughout the entire part, which is critical for long-term safety and performance.
4. Q: How often should ESD materials be tested in a production environment?
A: Industry standards (such as IEC 61340-5-1) recommend periodic testing. While internal checks can be frequent, an annual independent audit using calibrated test equipment is strongly advised to maintain evidence of compliance.
5. Q: Can PRES customize PEEK or PEI to have specific ESD properties?
A: Yes. We offer customized ESD series for PEEK, PEI, and PPS, which can be modified for specific resistivity targets while retaining the desired mechanical, thermal, and wear-resistant characteristics of the base polymer.
