For OEMs developing infrared-enabled components, PEI material for infrared imaging offers a valuable balance of near-infrared transmission, high refractive index, heat resistance, dimensional stability, and scalable processing. Dongguan PRES Group Co., Ltd. supplies high-performance PEI materials—including pellets, sheets, rods, tubes, powders, and 3D-printing filaments—to international brand owners, wholesalers, and manufacturers requiring consistent OEM-grade material solutions.
However, "transparent" does not automatically mean suitable for every infrared application. The optical clarity, refractive index, surface quality, thickness, additive package, molding conditions, and operating wavelength must all be evaluated together. In real infrared imaging systems, material selection is not simply a resin decision—it is an optical-engineering decision.

At Dongguan PRES Group Co., Ltd., we work with customers who need more than standard engineering plastic. They need materials that can be processed consistently, machined accurately, and perform reliably in demanding thermal and optical environments.
Our PEI product portfolio supports multiple stages of infrared-component development:

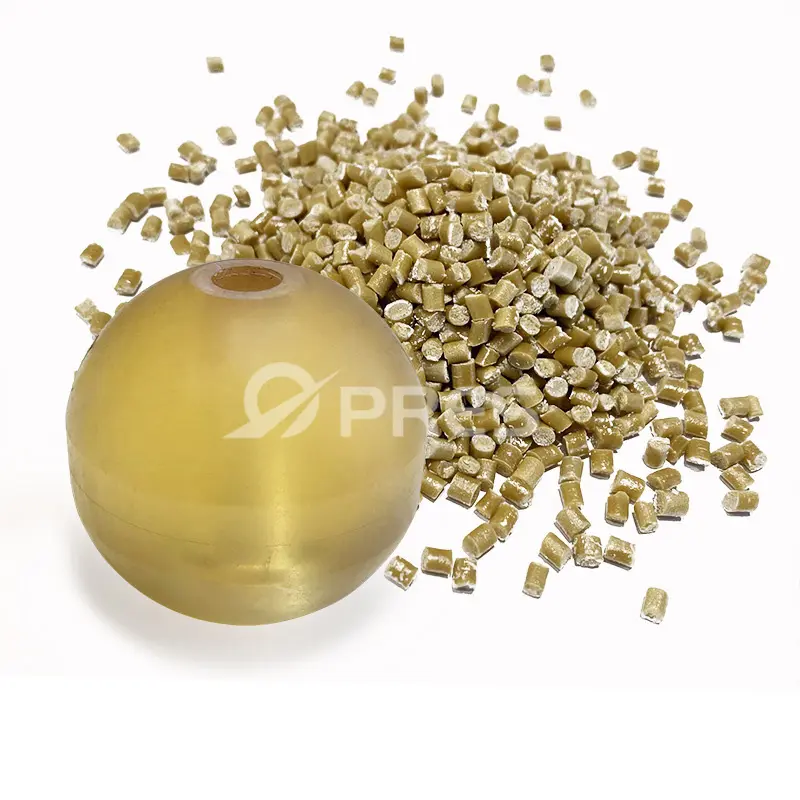

- PEI resin pellets for injection molding and extrusion
- PEI sheets for CNC machining, prototyping, covers, and optical-support structures
- PEI rods and tubes for precision-machined parts
- PEI powder for specialized processing and additive manufacturing workflows

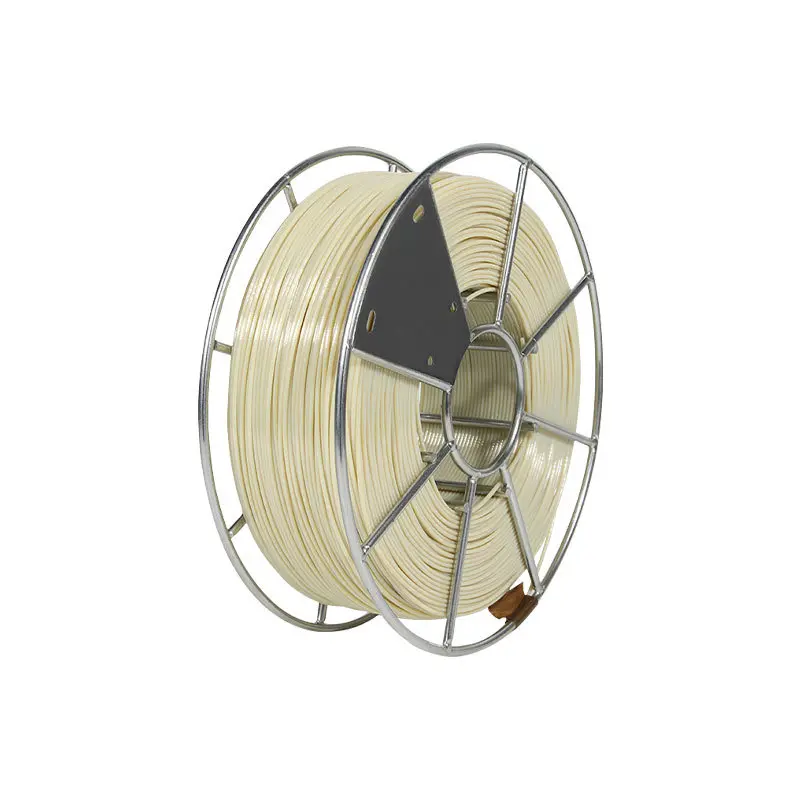

- High-performance PEI 3D-printing filament for rapid functional prototypes
- OEM material supply for overseas brands, distributors, and industrial manufacturers
For infrared imaging assemblies, customers commonly investigate PEI for:
- Near-infrared optical windows
- Sensor housings and alignment frames
- Lens holders and optical mounts
- LiDAR-related optical and structural parts
- Fiber-optic connector components
- Heat-resistant protective covers
- Prototype infrared enclosures made by FDM 3D printing
The practical value of PEI lies in its ability to combine optical functionality with structural performance. A material may transmit light well but deform under heat. Another may remain stiff but create excessive haze, stress birefringence, or absorption. PEI is often considered when designers need a more balanced engineering solution.
PEI is an amorphous high-performance thermoplastic that is generally transparent to translucent with a characteristic amber color. Its visual appearance can be misleading in optical development: a part that looks less clear in visible light may still perform effectively in selected near-infrared wavelength ranges.
When evaluating PEI optical clarity for infrared imaging, engineers should separate four different concepts:
| Optical factor | What it means | Why it matters for IR imaging |
|---|---|---|
| Light transmission | The percentage of light passing through the material | Higher transmission can improve signal intensity |
| Haze | Light scattered by internal structure or surface defects | High haze reduces image contrast and sharpness |
| Absorption | Light energy absorbed by polymer chemical bonds | Absorption can reduce transmission at specific wavelengths |
| Surface quality | Smoothness and fidelity of the part surface | Surface roughness can introduce scatter and distortion |
| Refractive index | How much light bends and slows inside the polymer | Determines lens behavior, reflection loss, and optical design |
For optical PEI grades, published data for a transparent material at 1.0 mm thickness indicates around 88% transmission at 850 nm and 89% at 1350 nm. Those values are particularly relevant to near-infrared systems such as fiber-optic communication, machine vision, illumination, sensing, and certain active imaging designs.
Yet optical performance always depends on the finished part—not just a datasheet. A thicker component has a longer optical path. A rough-molded surface scatters more light. Glass fibers, pigments, flame-retardant packages, contamination, moisture, and poor drying may also reduce clarity.
Visible optical clarity and infrared transmission overlap, but they are not identical.
A PEI component can appear amber because it selectively absorbs portions of visible light. That does not necessarily prevent it from being useful in the near-infrared region. In fact, specific optical PEI grades have been developed for near-IR transmission while maintaining heat resistance and low thermal expansion.
For example, SABIC reports that a specialized PEI grade can achieve near-infrared transmission above 85% while providing improved dimensional stability. Another application example reports more than 88% transmission in the 850–1550 nm range for an IR-transparent PEI material used in single-mode optical components.
The key design lesson is simple:
Do not select PEI for infrared imaging based only on its visible appearance. Measure the transmission spectrum at the exact operating wavelength and final wall thickness.
Refractive index describes how strongly a material bends light. It is one of the most important properties in lenses, windows, light guides, optical couplers, and imaging assemblies.
A published reference for polyetherimide lists a refractive index of approximately 1.682 at 589 nm, while one optical PEI grade reports values of 1.639 at 850 nm and 1.626 at 1350 nm.
This wavelength-dependent change is called dispersion. In practical terms, PEI's refractive index generally decreases as wavelength increases across the visible-to-near-infrared range.
A relatively high refractive index can be useful for several reasons:
- It enables compact optical geometries in lens and light-guiding designs.
- It affects focal length and optical power in molded lens concepts.
- It influences Fresnel reflection at air-to-polymer interfaces.
- It supports optical coupling and controlled light propagation.
- It helps engineers model ray paths accurately in simulation software.
At the same time, a higher refractive index also increases surface reflection if no coating or optical design strategy is used. For a flat PEI window, reflected light can reduce transmitted signal and create unwanted ghosting. The exact impact depends on wavelength, incident angle, polarization, surface finish, and whether an anti-reflective coating is present.
One common specification mistake is requesting "the refractive index of PEI" as though there is only one value. In reality, the value varies with:
- Wavelength
- Polymer grade
- Resin chemistry
- Temperature
- Processing history
- Molecular orientation
- Moisture condition
- Measurement method
- Fillers and additives
For infrared imaging projects, a useful specification format is:
"Refractive-index data required from 850 to 1550 nm, at 23°C, for a molded PEI part at the final production thickness."
This is much more actionable than requesting a general refractive-index figure at a visible wavelength.
PEI can be a strong candidate in the near-infrared range, but it is not automatically the best material for all IR bands.
| Infrared range | Approximate wavelength | PEI suitability | Key engineering consideration |
|---|---|---|---|
| Near infrared, NIR | 0.75–2.5 µm | Often suitable | Verify transmission at the exact wavelength and thickness |
| Short-wave IR, SWIR | About 1–3 µm | Application-dependent | Review absorption bands and signal requirements |
| Mid-wave IR, MWIR | About 3–5 µm | Usually limited | Polymer absorption often becomes more significant |
| Long-wave IR, LWIR | About 8–14 µm | Usually unsuitable as a transmitting window | Dedicated IR materials are often required |
Most thermoplastic optical polymers transmit well in visible and near-infrared regions but have much more limited transmission in ultraviolet, mid-wave infrared, and long-wave infrared ranges. This limitation comes from molecular vibrational absorption: chemical bonds in the polymer absorb energy at specific infrared wavelengths.
Therefore, PEI is often better positioned for NIR imaging, optical communication, sensing, and IR-assisted machine vision than for thermal cameras operating in the 8–14 µm long-wave infrared band.
At PRES, we recommend treating infrared material selection as a structured qualification process rather than relying on a single generic property sheet.
Start by identifying the actual wavelength range:
- 850 nm illumination
- 940 nm sensing
- 1064 nm laser-related systems
- 1310 nm fiber-optic communication
- 1550 nm optical communication and LiDAR-related systems
- SWIR, MWIR, or LWIR imaging bands
A PEI grade that performs well at 850 nm may not deliver the same result at 1550 nm or beyond.
Determine whether the PEI part is:
- A protective window
- A lens
- A lens array
- A light guide
- A sensor cover
- A structural holder outside the optical path
- A reflective or metallized component
- A housing that must preserve optical alignment
This distinction changes the requirements. A lens needs tightly controlled refractive index, molding fidelity, and low birefringence. A housing may prioritize thermal stability and dimensional precision over maximum transmission.
A 1.0 mm flat test plaque does not represent every finished component. In production, thickness may vary across a dome, lens, curved cover, or ribbed housing.
For best optical results:
- Keep the optical path as thin as practical.
- Specify low-haze, optical-grade resin where required.
- Avoid fillers in direct optical paths unless performance is proven.
- Use polished tooling for visible optical surfaces.
- Control gate location and flow direction to reduce stress.
- Measure both sides of the finished part for surface roughness.
- Validate optical performance after thermal cycling.
The strongest validation method is testing the actual molded or machined part. Recommended checks include:
- Spectral transmission measurement
- Haze and visible transmission measurement
- Refractive-index verification
- FTIR analysis for wavelength-dependent absorption
- Thermal aging and humidity exposure
- Dimensional stability testing
- Imaging contrast and signal-to-noise tests
- Environmental cycling under expected operating temperatures
Even a high-quality PEI resin can lose optical performance through poor manufacturing control. In our experience supporting OEM material projects, processing discipline is often the difference between a workable prototype and a reliable serial-production component.
PEI is sensitive to moisture during high-temperature processing. Inadequate drying may cause hydrolytic degradation, surface defects, splay, bubbles, reduced molecular weight, and visual inconsistency.
For optical or IR-transmitting parts, drying control should be treated as a quality-critical requirement rather than a routine preparation step.
Fast filling, uneven cooling, restrictive gates, and excessive packing can create orientation and internal stress. This may cause stress birefringence, which changes how light behaves as it travels through the part.
For a simple protective cover, this may be acceptable. For imaging optics or precision light-control features, it can reduce image quality or cause polarization-related artifacts.
For molded PEI lenses, windows, and micro-optical features, tool polish and process consistency directly affect surface quality. Roughness, weld lines, flow marks, sink, and contamination can increase scatter and reduce contrast.
PRES can support material formats suited to development and production workflows, including pellets for molding, sheets for CNC trial parts, and PEI filament for early-stage functional prototypes.
PEI is especially compelling where optical requirements meet harsh operating conditions. Unlike many conventional transparent plastics, PEI provides a high glass-transition temperature and strong dimensional stability.
One optical PEI grade reports a glass-transition temperature of 217°C, alongside low warpage, hydrolytic stability, and IR-transparency-related characteristics. This combination can matter when an IR component must stay aligned near heat-generating electronics, undergo elevated-temperature assembly processes, or maintain precision through changing temperatures.
Potential application areas include:
- Fiber-optic connectors and lens-array structures
- Automotive sensing and ADAS-related optical systems
- Near-IR machine-vision assemblies
- Industrial sensing covers
- Analytical instruments
- Medical-device optical structures
- Laser-adjacent housings and alignment features
- Electronic modules requiring thermal and optical reliability
SABIC identifies IR transparency as one reason PEI is used in ADAS-related parts, including LiDAR mirrors, lenses, covers, and radomes. This does not mean every PEI grade is suitable for every automotive optical component; it demonstrates the practical relevance of tailored PEI materials in demanding infrared-adjacent applications.
Choosing PEI material for infrared imaging requires more than comparing a few catalog values. The correct solution depends on wavelength, optical path thickness, part geometry, temperature, surface requirements, processing method, and validation standards.
Dongguan PRES Group Co., Ltd. helps overseas customers source and develop high-performance PEI materials in forms appropriate for their manufacturing route. Whether you need PEI pellets for injection molding, sheet for CNC machining, rod or tube for precision parts, powder for specialized processing, or 3D-printing filament for prototypes, we can support an OEM-oriented material program.
Contact PRES with your target wavelength, part drawing, thickness range, processing method, annual demand, and required test standards. Our team can help you define a practical PEI material path for your infrared imaging or near-IR optical project.
PEI can provide useful transmission in selected near-infrared wavelengths, particularly for specially formulated optical grades. It is generally less suitable for mid-wave and long-wave infrared transmission because polymer molecular absorption becomes more significant in those regions.
The refractive index depends on wavelength and material grade. Published values include approximately 1.682 at 589 nm, while one optical PEI grade reports 1.639 at 850 nm and 1.626 at 1350 nm.
Yes, PEI may be used for NIR optical components when transmission, refractive index, haze, molding precision, and surface quality meet the system requirements. Finished-part validation is essential, especially for lenses and lens arrays.
Usually not for conventional LWIR thermal cameras operating around 8–14 µm. PEI may be more appropriate for near-infrared optical systems, while LWIR windows typically require materials engineered for that specific spectral region.
Increasing thickness generally increases the optical path length, which can increase absorption and lower transmission. Thickness also affects internal reflection and may influence image contrast depending on the optical design.
Yes. Dongguan PRES Group Co., Ltd. provides PEI pellets, sheets, rods, tubes, powders, and high-performance 3D-printing filaments for international OEMs, wholesalers, and manufacturers. Customers should provide their target wavelength, part requirements, processing route, and performance targets for material evaluation.

1. SABIC. [ULTEM™ Resin 1010UCL Material Datasheet]. Optical transmission at 850 nm and 1350 nm, refractive-index data, glass-transition temperature, and processing-related material attributes.
2. RefractiveIndex.INFO. [Refractive Index of Polyetherimide (PEI)]. Refractive-index and extinction-coefficient data for PEI across 0.4–20 µm.
3. SABIC. [ULTEM™ Resin Optical Material Portfolio Expansion]. Near-IR transmission and dimensional-stability information for optical PEI grades.
4. SABIC. [Blovelight Selects ULTEM™ Resin for Single-Mode WDM Module]. Application example involving IR-transparent PEI, optical components, and 850–1550 nm performance.
5. SABIC. [ULTEM™ Resin for Automotive Applications]. Information on IR transparency and ADAS-related applications.
6. G&H. [Transmission Curves for Polymer Optics]. General discussion of polymer-optics transmission limitations across visible, NIR, MWIR, and LWIR regions.
7. Syntec Optics. [Optical Materials Overview]. Published PEI refractive-index information and optical-material context.
