15% PTFE Reinforced Wear Resistance PPS

Name: 15% PTFE Reinforced Wear Resistance PPS
Brand: PRES
SKU: 563370317
Rating: 5.0 (45 reviews)

15% PTFE filled polyphenylene sulfide material has low friction coefficient, low wear, high mechanical properties, and excellent chemical and heat resistance. This product is mainly used to make products with low friction coefficient and low friction consumption requirements, such as gears, high-temperature shaft sleeves, sliding bearings, etc.

Material:	15% PTFE filled PPS
Color:	nature black custom
MOQ:	1KG
Packing:	25kg/bag
Availability:

Quantity:



Inquire Add to Basket

Model:
PPS-FE15
Brand:
PRES

Product Description

PPS FE15 Product Description

		High-temperature resistant
	1.Glass transition temperature: 90°C 2.Heat distortion temperature: 93°C 3.Long-term using temperature: 200-240°C 4.Short-term using temperature: 260°C
		Corrosion resistance
	It remains stable in most inorganic acids, bases and salts,The corrosion resistance is close to PTFE
		hydrolysis resistanc
	1.It can work for a long time in 120°C steam , and mechanical properties remain at 70% 2.Withstand 1000℃ steam cycle disinfection 3.After aging in high-pressure steam at 232℃ for 5,000 hours, it still maintains a mechanical strength> 50%
		Wear resistance
	Frictional coefficient can reach 0.18,Excellent wear resistance performance

|Wear resistance PPS Application

1.PPS material has high temperature resistance, oil resistance, and chemical corrosion resistance, making it suitable for harsh environments such as engine compartments likeTransmission gears, pump valve components, sensor housings, and fuel system components suitable for the automotive industry

2.PPS material has high insulation, dimensional stability, and flame retardancy, meeting the requirements of precision electronics.

3.Electronic and electrical connectors, sockets, coil frames, circuit board substrates.

Mechanical industry bearings, guide rails, gears, wear-resistant bushings. Plastic has high rigidity and low friction coefficient, making it suitable for high load friction components.

4.It also has acid and alkali corrosion resistance, suitable for environments with strong chemical media. Chemical industry valves, pipelines, reactor liners

PPS wear-resistant cylinder

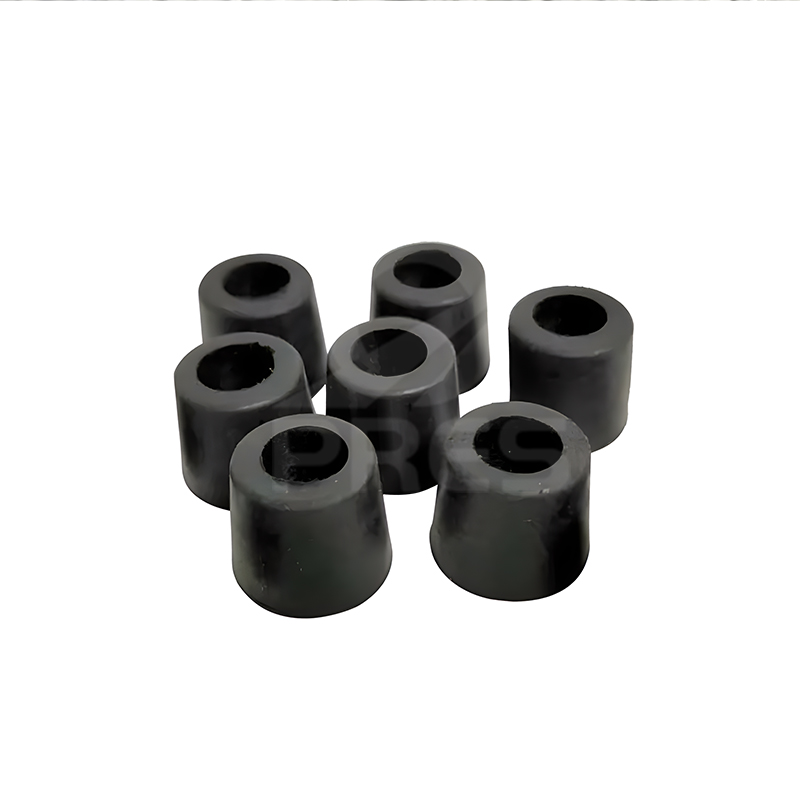

PPS wear-resistant shaft ring

PPS wear-resistant disc

| PPS Classification

Glass fiber reinforced PPS

10% Glass fiber reinforced PPS

20% Glass fiber reinforced PPS

30% Glass fiber reinforced PPS

40% Glass fiber reinforced PPS

50% Glass fiber reinforced PPS

60% Glass fiber reinforced PPS

Read more

Wear resistance PPS

By filling PTFE material that have excellent low friction coefficient to improve wear resistance performance.

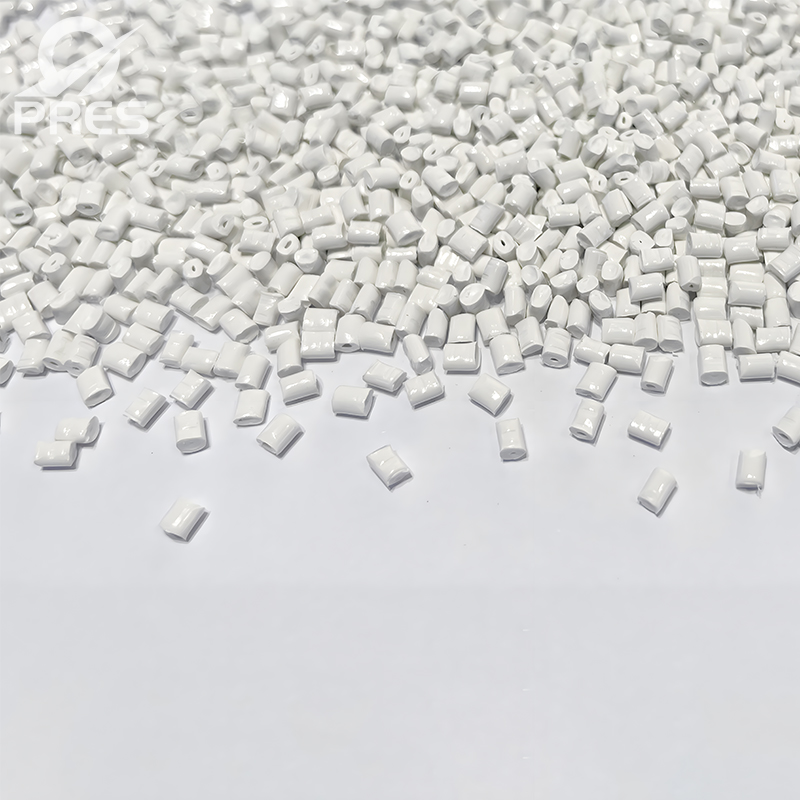

15%PTFE reinforced PPS

30%PTFE reinforced PPS

PTFE+Glass fiber reinforced PPS

Read more

Coffe Color PPS

Coffee-colored PPS has a good appearance and has many application. This is a colored PPS pellets in stock.

And we have small quantity red color,blue color instock.

Read more

Custom color PPS

We have rich experience in color matching and can precisely control the proportion of pigments. We can mix accurate colors according to color numbers or samples in a relatively short time.

Read more

|Shipping & Payment

We can accept US dollars, rubles, and Chinese yuan

We can ship by sea,by air and express.

UPS

DHL

FEDEX

Certifications

Data Sheet

Test Item	Test Method	Conditions	Units	Test Data
Mechanical Data
Tensile Strength	ISO 527	Yield, 23℃	MPa	55
Flexural Strength	ISO 178	Yield,23℃	MPa	85
Flexural Modulus	ISO 178	23℃	GPa	3.1
Charpy Impact Strength	ISO 179	Notched	kJ/m²	8.5
Charpy Impact Strength	ISO 179	Unnotched	kJ/m²	20
Thermal Data
Melting Point	ISO 11357	-	℃	280
Flame retardancy	UL-94	-	-	V0
Heat DeflectionTemperature	ISO 75		℃	110
wear resistant performance
frictional coefficient	GB/T 3690			0.18
Injection molding conditions
Drying temperature			℃	130-150
Drying time			Hrs	3-4
Cylinder temperature			℃	290-320
Nozzle temperature			℃	300-320
Mold temperature			℃	120-150
Injection pressure			MPa	80-150
Back pressure			MPa	30-70

Testing Quality

We will test the performance of PPS material every batch,test including:

Flow rate

Tensile strength

Bending strength

Fracture elongation, etc

impact resistance plastic
