Unfilled PEI sheet  has good toughness. The dielectric loss factor (tanδ) of PEI resin is very small, and it still performs excellently at high frequencies, with very stable dielectric strength.
It can achieve UL94 V-0 level without adding flame retardants, with a high oxygen index (about 47%), low smoke emission and low toxicity during combustion, ensuring extremely high safety

PEI 2300 sheet has enhanced  bending strength and higher rigidity than ultem 1000 sheet, it also has improved the load-bearing capacity  at high temperatures, and maintained good electrical insulation even with the addition of glass fiber

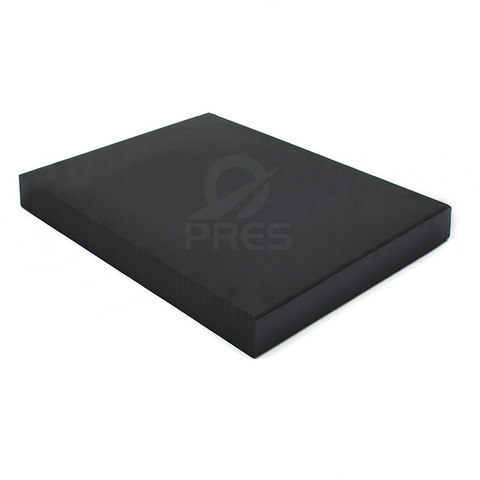

Permanently Stable Resistivity:​ Surface resistivity locked at 10^6–10^9 Ω/sq per IEC 61340-2-3, stable from -50°C to 260°C. Custom high-impedance option 10^9–10^11 Ω/sq available on request. Built into the carbon-filled matrix—no coating to wear, no particulate sloughing in cleanroom.
Ultra-Clean & Non-Particulating:​ Carbon-fiber/conductive matrix eliminates shedding during CNC turning. Meets ISO Class 5 semiconductor handling requirements for FOUP carrier pins, wafer transfer arms and static-sensitive assembly.
High-Temperature Resistance:​ Heat deflection temperature 310°C under 1.8 MPa load (ISO 75-f); continuous service rated 260°C (UL 746B RTI Elec), short-term excursion to 300°C, melting point 343°C. Ideal for high-heat ESD-safe processing.
Superior Mechanical Performance (CF30 structural grade):​ Tensile strength ~260 MPa, flexural strength ~380 MPa, flexural modulus ~23 GPa at 23°C. Fiber network retains load capacity above Tg 143°C, enabling lightweight metal-replacement for ESD-bearing components.
Chemical Inertness & Sterilization Ready:​ Resists all organic solvents except concentrated sulfuric acid. Autoclave-compatible for repeated steam cycles. Inherent UL 94 V-0 flame retardancy; compound compliant with RoHS/REACH ESD material control

Natural PPSU sheet is our most comprehensive stock offering. We maintain the widest inventory breadth for amber PPSU plates, ensuring immediate availability for urgent projects.
 Featuring an unmatched thickness range from ultra-thin 1mm​ sheets for precision medical components to heavy-duty 120mm​ gauge plates for industrial tooling, our translucent amber stock delivers inherent FDA compliance and visual flow inspection—all ready for rapid dispatch.

Anti-static ESD PEEK sheets not only have excellent mechanical properties but also stable anti-static performance. They can be used for a long time in high-temperature environments without significant changes in performance and resistance

PEEK GF30 Sheet is a structural grade engineering plastic sheet formed by uniformly dispersing 30% short cut glass fibers in a high-performance polyether ether ketone (PEEK) matrix and extruding them at high temperature and high pressure. The mesh reinforcement effect of glass fiber makes the bending modulus of the material reach 11.3 GPa (about 2-3 times that of unreinforced PEEK), and the tensile strength is ≥ 170 MPa. Combined with extremely low creep rate and thermal expansion coefficient, it endows the sheet metal with structural rigidity and long-term load-bearing stability.

Unfilled PEEK Sheet, also known as Natural PEEK Sheet, is engineered for high-purity applications. Made from virgin resin with zero fillers, it offers a continuous service temperature of 260°C, excellent chemical resistance, and superior insulation. Full-size sheets are kept in stock and available for precision cut-to-size processing. Virgin Purity:​ Referred to as Natural PEEK Sheet, this unfilled grade contains no additives, ensuring compliance with medical and semiconductor standards.
High Performance:​ Withstands continuous temperatures up to 260°C while maintaining exceptional chemical resistance and electrical insulation.
Ready to Ship:​ Standard stock sizes are available with custom cutting services to meet your machining requirements.

To 2026, 30% carbon filled PEEK material is currently one of the most outstanding thermoplastic composite materials in terms of performance.
Its temperature resistance and mechanical strength have been significantly improved, with less deformation at high temperatures, making it a reliable precision material with high temperature resistance

Unreinforced polyetherimide (PEI) rods are translucent amber  color, has excellent toughness, naturally exhibit UL-94V0 flame retardancy, and produce very little smoke when burning.

PEI has excellent dimensional stability，even without fiber reinforcement, PEI does not warp. As a non-crystalline plastic, it generates  high temperatures during processing and does not easily deform after cooling, is a suitable plastic rod for high precision machining.

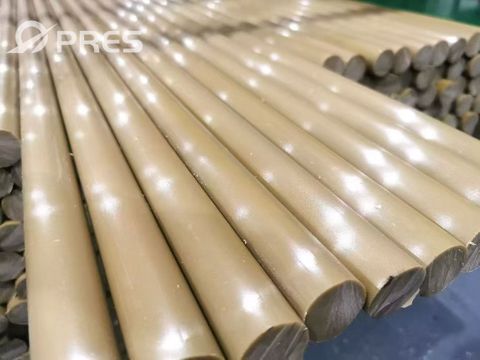

The deformation of glass fiber reinforced PEI material under high temperature and heavy load is very small, enabling it to maintain dimensional stability. It is a material that can well replace metals. It has high rigidity and strength while being very lightweight. It is commonly used in structural load-bearing components in the aerospace and automotive fields.
The interface bonding strength between PEI and glass fibers is extremely high. PEI itself has a highly rigid imide ring structure, and through the filling of glass fibers, it greatly inhibits the thermal motion of molecular chains at high temperatures.

PEEK GF30 rods are engineered to excel in applications requiring maximum dimensional stability under load. By incorporating 30% glass fibers, the material achieves a flexural modulus of 11 GPa, providing the stiffness necessary to support significant weight without deformation.
Unlike unreinforced PEEK, which may exhibit creep under sustained pressure, the glass fiber reinforcement locks the polymer structure in place. This results in exceptional high static load capacity, ensuring that components such as support brackets, insulating mounts, and structural frames remain stable even at elevated temperatures (HDT up to 328°C).

Fiber reinforced PEEK rods have excellent bending strength and modulus, and superior bending resistance. The thermal expansion coefficient and shrinkage rate significantly decrease. Can be used to manufacture precision components that are resistant to high temperatures.
Compared to PEEK GF30, carbon fiber PEEK rods have higher rigidity and tensile strength, lower density, better wear resistance, and faster thermal conductivity


PEEK CF30 Rods​ are high-performance extruded bar stock reinforced with 30% carbon fiber, delivering the highest stiffness, superior wear resistance, and permanent ESD-safe behavior in the PEEK family. With a long-term service temperature of 260°C​ (short-term up to 300°C), UL 94 V-0 flammability rating, and volume resistivity in the range of 103–1012 Ω·cm, these black rods are engineered for the most demanding applications across aerospace, semiconductor, oil & gas, and precision industrial manufacturing.

Product:​ Injection Grade Antistatic PEI Pellets
Core Advantages:
ESD Safety:​ Permanent control (10⁸–10¹⁰ Ω/sq), no carbon black migration.
Cleanroom Ready:​ Ultra-low particle generation for ISO Class 5/Class 100 environments.
Thermal Stability:​ 170°C continuous use, HDT 200°C, UL94 V-0.
Process Efficiency:​ High melt flow rate, excellent release, sterilizable.
Applications:​ IC trays, surgical instruments, aircraft interiors, EV charging parts.

Glass fiber has greatly enhanced the bending strength and rigidity of PEI, improved the load-bearing capacity of PEI material at high temperatures, and maintained good electrical insulation even with the addition of glass fiber

The toughness of unfilled PEEK resin is better than PEEK GF30 or PEEK CF30,Pure PEEK has better impact resistance performance.Pure PEEK resin wears tools (carbide/diamond) extremely slowly, has low processing costs, and easily achieves high quality surface.
When many holes or screw threads need to be drilled, PEEK resin rod is a good choice, and the processed products also have good precision
