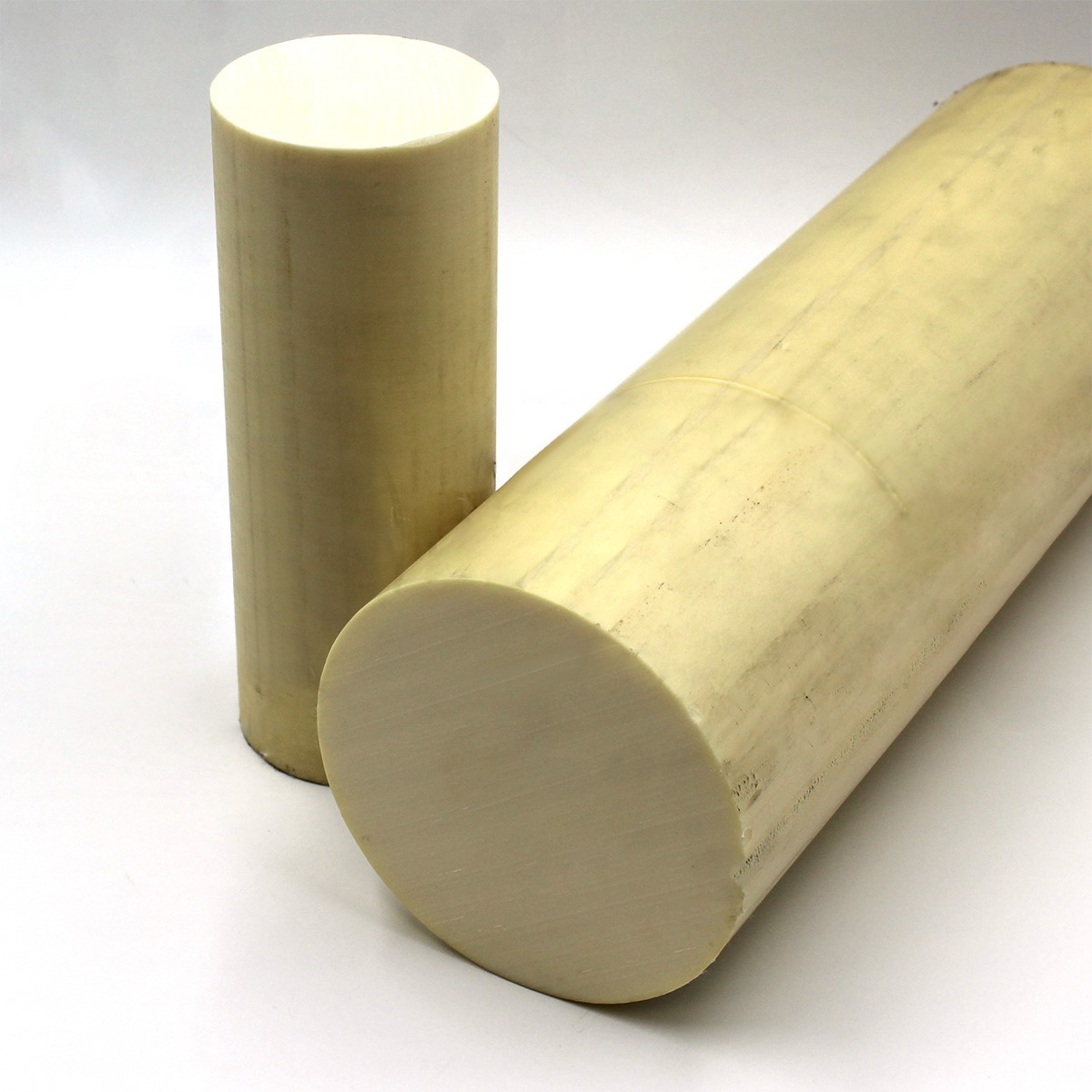

30% Glass Fiber Reinforced PEI 2300 Rod

Name: 30% Glass Fiber Reinforced PEI 2300 Rod
Brand: PRES
SKU: 599118117
Rating: 5.0 (66 reviews)

Glass fiber has greatly enhanced the bending strength and rigidity of PEI, improved the load-bearing capacity of PEI material at high temperatures, and maintained good electrical insulation even with the addition of glass fiber

Material:	30% glass fiber reinforced PEI
Color:	NATURE
MOQ:	1PCS
Packing:	boxes
Availability:

Quantity:



Inquire Add to Basket

Model:
PEI 2300
Brand:
PRES

Product Description

PEI 2300 Rod Product Description

		High-temperature resistant
	1.Glass transition temperature: 215-217 °C 2.Heat distortion temperature: 220°C 3.Long-term using temperature: 170°C 4.Short-term using temperature: 200°C
		High moulds and high tensile strength
		Better Dimensional stability and lower thermal expansion than PEI 1000
	30% glass fiber reinforced PEI has excellent rigidity and can maintain good dimensional stability in normal and high-temperature environments
		Chemical stability
		Flame retardancy UL-94V0

|PEI 2300 Rod Size table

Why are there dimensional errors in PEI rod?

For the margin of subsequent processing, the actual thickness of the PEI plate will be thicker than that marked. You can contact us to obtain the actual measured dimensions.

PEI 2300
Diameter MM	Tolerance MM	Density KG/M⊃3;	Weight KG/M
6	+0.2-+0.6	1.5	0.05
8	+0.5-+0.8	1.5	0.09
10	+0.4-+0.6	1.5	0.13
12	+0.3-+0.9	1.5	0.19
15	+0.6-+1	1.5	0.28
20	+0.3-+1	1.5	0.49
25	+0.3-+1	1.5	0.86
30	+0.4-+1	1.5	1.17
35	+0.2-+1	1.5	1.61
40	+0.2-+0.8	1.5	2.17
45	+0.3-+1.5	1.5	2.58
50	+0.4-+2.0	1.5	3.14
60	+0.8-+2.0	1.5	4.52
70	+0.5-+3.0	1.5	6.15
75	+0.5-+3.0	1.5	6.99
80	+0.5-+3.0	1.5	8.07
85	+0.5-+2.0	1.5	8.9
90	+0.4-+3.0	1.5	10.1
100	+0.3-+2.3	1.5	12.4
110	+0.6-+3.0	1.5	15.3
120	+0.5-+3.0	1.5	18.1
130	+0.5-+3.0	1.5	21.2
140	+0.5-+3.0	1.5	24.4
150	+0.5-+3.0	1.5	27.9
160	+0.5-+3.0	1.5	31.9
180	+0.5-+3.0	1.5	40.2

| PEI Sheet Classification

Unfilled pure PEI 1000 sheet

Unreinforced PEI has excellent toughness and high transparency

Read more

Carbon fiber reinforced PEEK sheet

Has higher elastic modulus, mechanical strength, creep resistance, and wear resistance.

Read more

Glass fiber reinforced PEI 2300 Sheet

Read more

Shipping & Payment

We can accept US dollars, rubles, and Chinese yuan

We can ship by sea,by air and express.

UPS

DHL

FEDEX

Data Sheet

Physical Properties	Units	Test	value
Density	g/cm³	ISO 1183-1	1.50
Water Absorption, 24 hrs.	%	D570	0.16
Water Absorption, Saturation	%	D570	0.9
Mechanical Properties
Tensile Strength	MPa	ISO527	160
Tensile Modules	MPa	ISO527	3200
Flexural Strength	MPa	ISO178	240
Flexural Modulus	GPa	ISO178	9.6
Hardness Rockwell M	-	ASTM D785	110
Coefficient of Linear Thermal Expansion	cm/cm/°C	D696	4.8*10^-5
Glass Transition Temperature	ºC	D3418	210
Thermal Conductivity	W/m-°C	ISO 8302	0.31
Flame retardant	-	UL94	V-0
Electrical Properties
Volume Resistivity	Ω.cm	IEC 60093	1.E+15
Dielectric Constant	@1.1 GHz		3.51
Dissipation Factor	@ 5 GHz		3.59
Surface Resistivity	Ω	IEC 60093	1.E+15
