50mesh - 1000mesh PEEK powder

Name: 50mesh - 1000mesh PEEK powder
Brand: PRES
Rating: 5.0 (20 reviews)

PEEK 990G is an unfilled pure resin with standard flowability and high melt strength, suitable for extrusion of profiles and manufacturing of PEEK films.

PEEK material is currently one of the best temperature resistant thermoplastic materials, with a wide range of applications

Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 990G
Brand:
PRES

Product Description

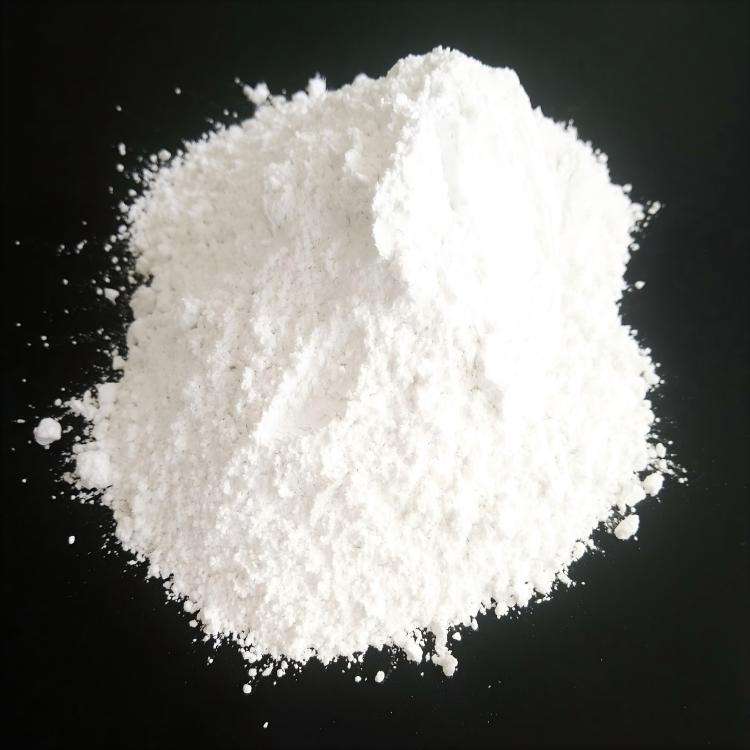

PEEK Powder Product Description

		High-temperature resistant
	1.Glass transition temperature: 143°C 2.Heat distortion temperature: 152°C 3.Long-term using temperature: 260°C 4.Short-term using temperature: 300°C 5.Melting point: 343°C
		High toughness and impact resistance
	1.Pure PEEK has excellent toughness, does not break under notched impact. 2.Pure PEEK's Fatigue resistance is betterthan fiber-reinforced PEEK
		Self-lubrication wear resistance
		Chemical stability

|PEEK Powder Application

PEEK resin has uniform particles, low gel content, less impurities, good toughness and good impact resistance; Disinfection can be carried out using methods such as steam, ethanol, and X-rays, which are widely used in medical, pharmaceutical, food processing, automotive, and electronic information applications.

990G is high melt viscosity，Suitable for extrusion of PEEK products：

Shipping & Payment

We can accept US dollars, rubles, and Chinese yuan

We can ship by sea,by air and express.

UPS

DHL

FEDEX

Certifications

Data Sheet

Test Item	Test Method	Conditions	Units	Test Data
Mechanical Data
Tensile Strength	ISO 527	Yield, 23℃	MPa	100
Tensile Elongation	ISO 527	Break, 23℃	%	45
Flexural Strength	ISO 178	Yield,23℃	MPa	165
Flexural Modulus	ISO 178	23℃	GPa	4.1
Compressive Strength	ISO 604	23℃	MPa	125
Charpy Impact Strength	ISO 179/1eA	Notched	kJ m-2	7
Charpy Impact Strength	ISO 179/1U	Unnotched	kJ m-2	-
Mould Shrinkage	ISO 294-4	Along Flow	%	1
Mould Shrinkage	ISO 294-4	Across Flow	%	1.3
Thermal Data
Melting Point	ISO 11357	-	℃	343
Glass Transition (Tg)	ISO 11357	Onset	℃	143
Special Heat Capacity	DSC	23℃	kJ kg-1 ℃-1	2.2
Coefficient of ThermalExpansion	ISO 11359	Along flow below Tg	ppm K-1	45
Coefficient of ThermalExpansion	ISO 11359	Along flow above Tg	ppm K-1	120
Heat DeflectionTemperature	ISO 75	1.8 Mpa	℃	152
Thermal Conductivity	ISO 22007-4	23℃	W m-1 K-1	0.29
Flow
Melt Index	ISO 1133	380℃,5kg	g 10min-1	10
Miscellaneous
Density	ISO 1183	Crystalline	g cm-3	1.3
Density	ISO 1183	Amorphous	g cm-3	1.26
Shore D Hardness	ISO 868	23℃		85
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	24h, 23℃	%	0.07
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	Equilibrium, 23℃	%	0.4
