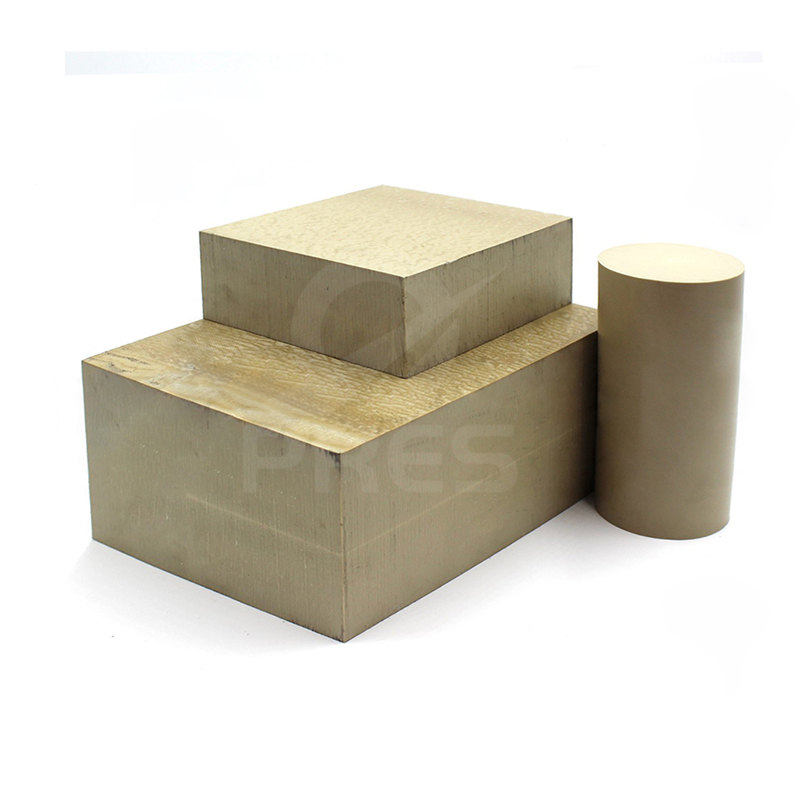

High-temperature Resistant And High-rigidity Plastic Sheet PEEK GF30

PEEK 990GL30 is 30% fiberglass reinforcement, significantly improved mechanical strength compared to pure PEEK, and better dimensional stability.

Same as PEEK 990G,990GF30 is also suitable for extrusion and injection molding
Material:
30% glass fiber reinforced PEEK
Color:
NATURE
MOQ:
1KG
Packing:
25kg/bag
Availability:
Quantity:
Inquire Add to Basket

  • PEEK 990GF30

  • PRES

|

 PEEK GF30 Sheet Product Description

GF30 peek SHEET application ri

High-temperature resistant

1.Glass transition temperature: 143°C

2.Heat distortion temperature: 328°C

3.Long-term using temperature: 260°C

4.Short-term using temperature: 300°C

5.Melting point: 343°C

ri

 High moulds and high tensile strength

1.Ｇlass fiber significantly improves the tensile strength of PEEK,up to 165MPa

 2.Bending modulus 11 GPa of PEEK, enabling it to withstand greater loads and stresses

ri

 Dimensional stability and low thermal expansion

ri

 Chemical stability

|PEEK 990GL30 Sheet Size table

Why are there dimensional errors in PEEK boards?

For the margin of subsequent processing, the actual thickness of the PEEK plate will be thicker than that marked. You can contact us to obtain the actual measured dimensions.

Thickness

MM

Tolerance

MM

Density

KG/M⊃3;
6 +0.2-+0.7 1.4
8 +0.2-+0.7 1.4
10 +0.2-+1.2 1.4
12 +0.3-+1.5 1.4
15 +0.3-+1.5 1.4
17 +0.3-+1.5 1.4
20 +0.3-+1.5 1.4
25 +0.3-+1.5 1.4
30 +0.5-+2.5 1.4
35 +0.5-+2.5 1.4
40 +0.5-+2.5 1.4
45 +0.5-+2.5 1.4
50 +0.5-+2.5 1.4
60 +0.5-+3.5 1.4
80 +0.5-+5.0 1.4
100 +0.5-+5.0 1.4
120 +0.5-+5.0 1.4

| PEEK  Classification

glass fiber reinforced PEEK

Unfilled pure PEEK resin

Has excellent toughness and impact strength

Excellent fatigue resistance

Read more

CF PEEK

Carbon fiber reinforced PEEK

Has higher elastic modulus, mechanical strength, creep resistance, and wear resistance.

Read more

Ceramic reinforced PEEKCeramic reinforced PEEK

Excellent corrosion resistance and high mechanical strength

Read more

CF PEEK

Bearings grade FC30 PEEK

Low friction coefficient, wear-resistant, with thermal conductivity

Read more

|

 Shipping & Payment

We can accept US dollars, rubles, and Chinese yuan

We can ship by sea,by air and express.

微信图片_20250501115928

UPS

微信图片_20250501115948

DHL

微信图片_20250501115943

FEDEX

|

 Certifications

3
4
5
6

|

 Data Sheet

Test Item Test Method Conditions Units Test Data
Mechanical Data
Tensile Strength ISO 527 Yield, 23℃ MPa 100
Tensile Elongation ISO 527 Break, 23℃ % 45
Flexural Strength ISO 178 Yield,23℃ MPa 165
Flexural Modulus ISO 178 23℃ GPa 4.1
Compressive Strength ISO 604 23℃ MPa 125
Charpy Impact Strength ISO 179/1eA Notched kJ m-2 7
ISO 179/1U Unnotched kJ m-2 -
Mould Shrinkage ISO 294-4 Along Flow % 1
Across Flow % 1.3
Thermal Data
Melting Point ISO 11357 - ℃ 343
Glass Transition (Tg) ISO 11357 Onset ℃ 143
Special Heat Capacity DSC 23℃ kJ kg-1 ℃-1 2.2
Coefficient    of    ThermalExpansion ISO 11359 Along flow below Tg ppm K-1 45
Along flow above Tg ppm K-1 120
Heat DeflectionTemperature ISO 75 1.8 Mpa ℃ 152
Thermal Conductivity ISO 22007-4 23℃ W m-1 K-1 0.29
Flow
Melt Index ISO 1133 380℃,5kg g 10min-1 10
Miscellaneous
Density ISO 1183 Crystalline g cm-3 1.3
Amorphous g cm-3 1.26
Shore D Hardness ISO 868 23℃
85
Water Absorption（3.2mmthick Tensile Bar）（by immersion） ISO 62 24h, 23℃ % 0.07
Equilibrium, 23℃ % 0.4
