Carbon Fiber Reinforced PEEK High Temperatureresistance And Wear Resistance PEEK 990CA30

Name: Carbon Fiber Reinforced PEEK High Temperatureresistance And Wear Resistance PEEK 990CA30
Brand: PRES
SKU: 570468417
Rating: 5.0 (91 reviews)

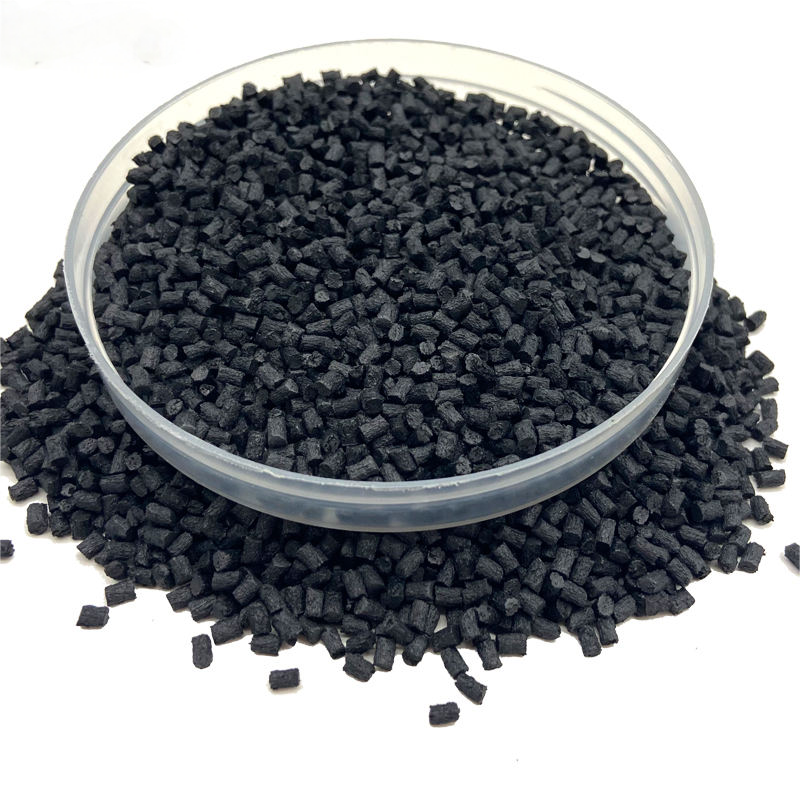

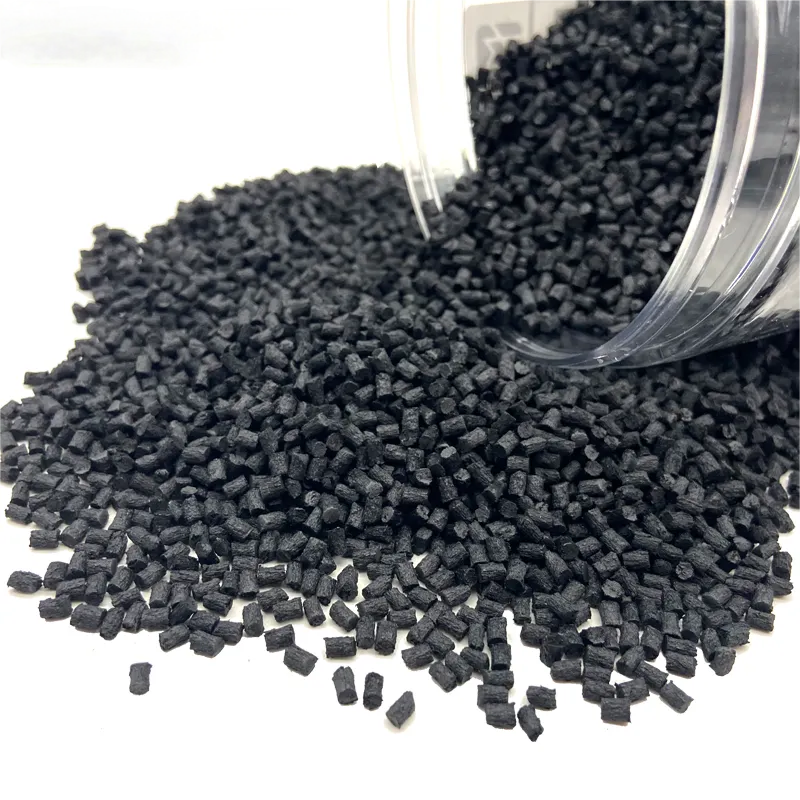

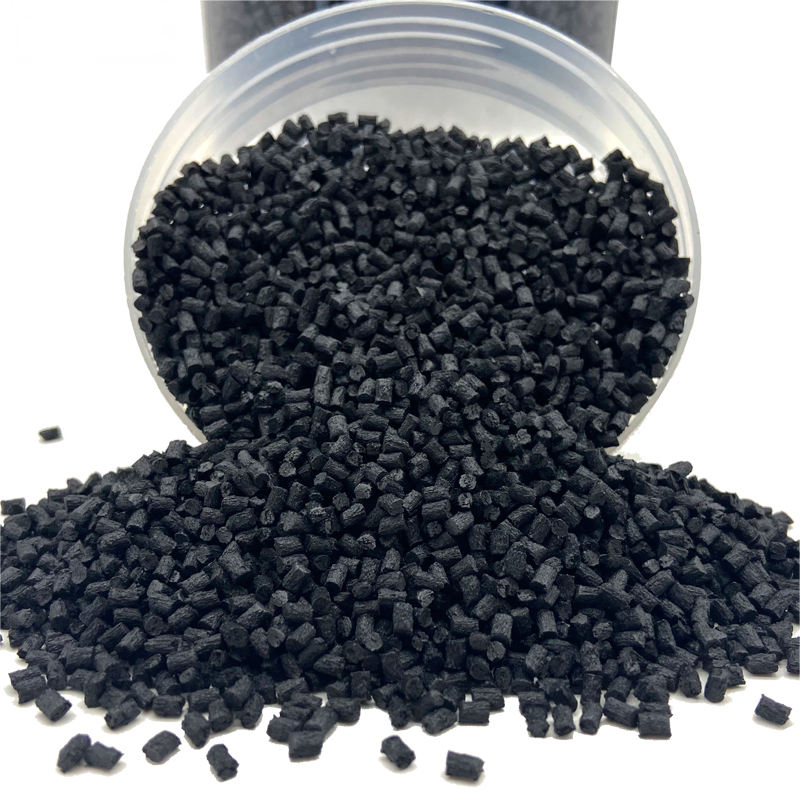

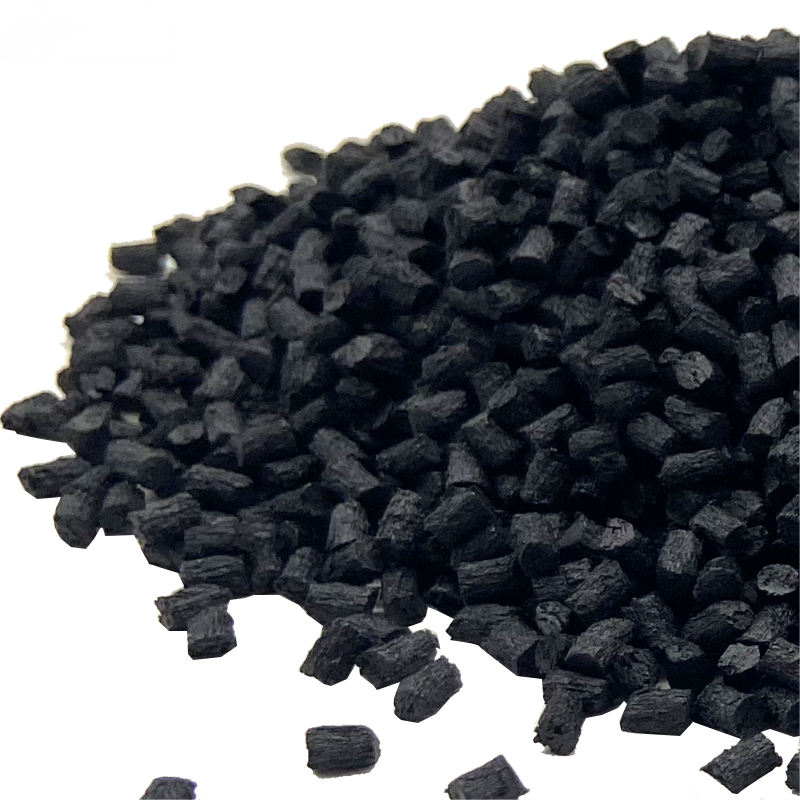

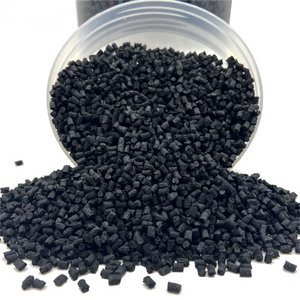

PRES PEEK 990CA30 is a 30% carbon fiber reinforced high‑viscosity PEEK compound.

MFI: 2.3 g/10 min (ISO 1133, 380°C / 5 kg).

The higher melt viscosity minimizes fiber attrition during injection molding, contributing to improved fiber retention and enhanced tensile and flexural properties of molded parts.

Material:	carbon fiber reinforced PEEK
Color:	BLACK
MOQ:	1KG
Packing:	25kg/bag
Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 990CA30
Brand:
PRES

Product Description

|

PEEK 990CA30 Product Description

		High-temperature resistant
	1.Glass transition temperature: 143°C 2.Heat distortion temperature: 315°C 3.Long-term using temperature: 260°C 4.Short-term using temperature: 300°C 5.Melting point: 343°C
		Light weight and high strength
	1.Carbon fiber significantly improves the tensile modulus of PEEK,up to 24GPa 2.High tensile strength of 260MPa, density of 1.4 g/cm³, can reduce weight and improve structural strength
		Low friction coefficient -wear resistance
		Creep resistance

|PEEK 990CA30 Application

PEEK 990CA30 is a commonly used high viscosity 30% carbon fiber reinforced grade, mainly for parts with thick walls, high load structure, and high fiber retention requirements.

In our project, it often appears in these scenarios:

Thick walled gears, heavy-duty ring gears (especially for large module, high torque transmissions)
Compressor piston rings, sealing rings, and support rings - these are its main applications

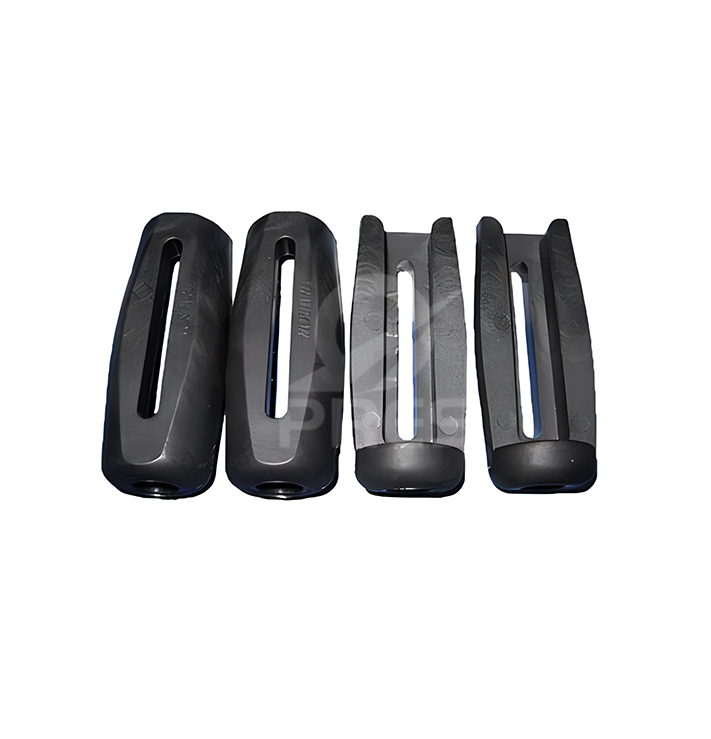

High load sliding bearings, bearing seats

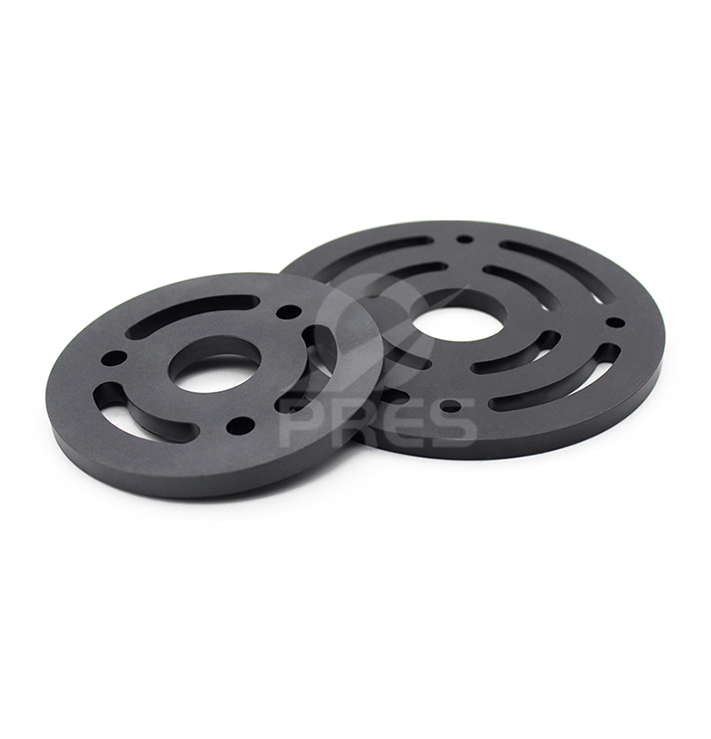

Thick walled valve body and pump body (wall thickness generally ≥ 2mm)
Automotive transmission load-bearing components, high-voltage insulation structural components
Large structural components of semiconductor/photovoltaic equipment

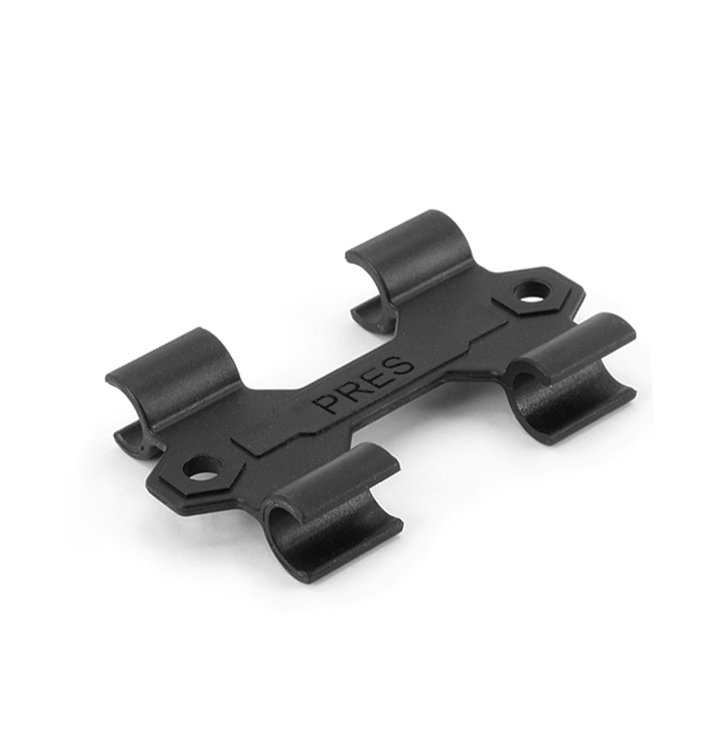

Aerospace load-bearing brackets and fixtures
Components with high requirements for strength and creep resistance in textile machinery and medical equipment

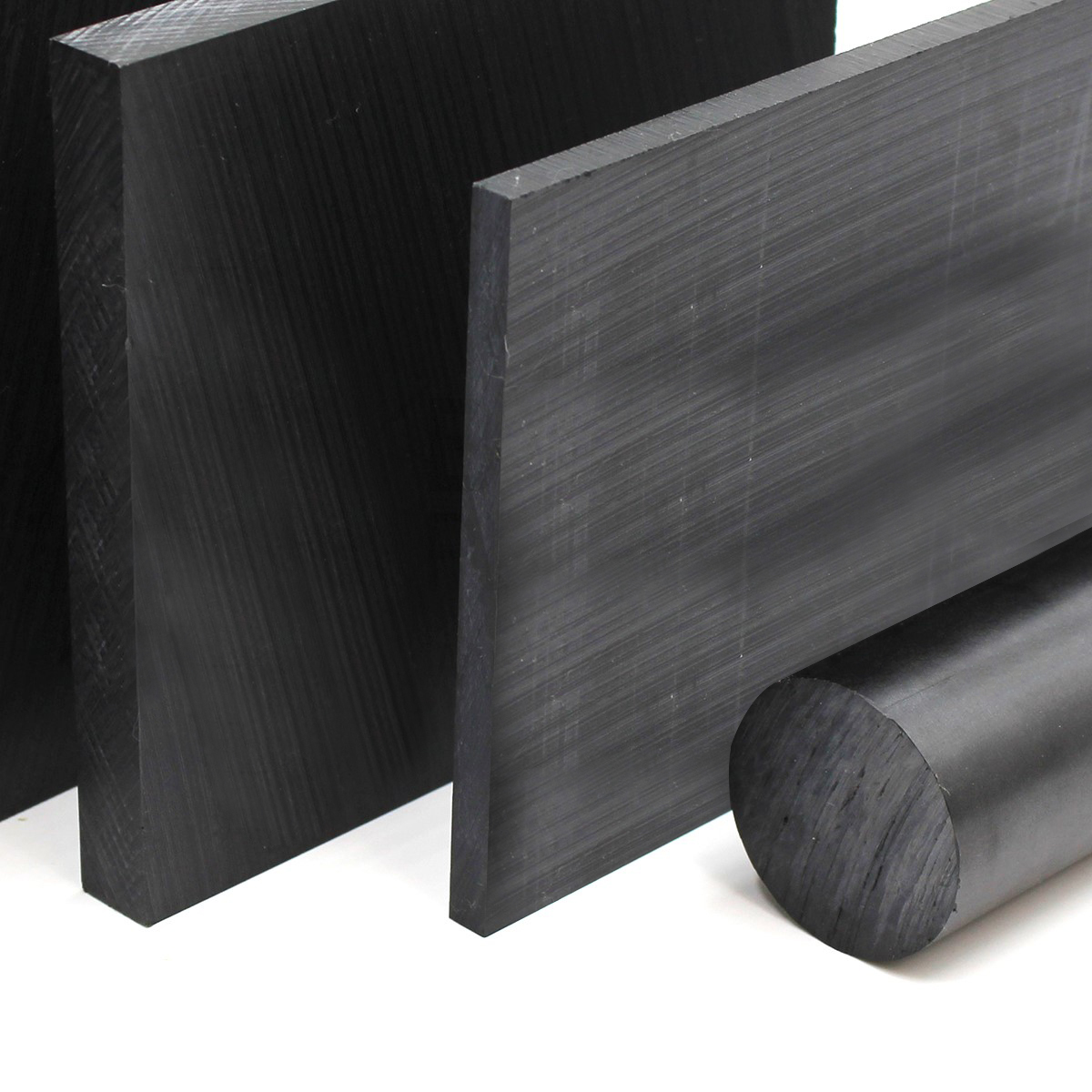

|Typical Case 1 : PEKK sheet&rods extrusion

High-viscosity PEEK extrusion rod& sheet

PEEK 990CA30 has a high molecular weight and long molecular chains, giving it high melt strength.

With 30% carbon fiber reinforcement, it offers significantly increased rigidity and dimensional stability.

It is also suitable for extruding thick‑wall PEEK tubing with a wall thickness greater than 3 mm.

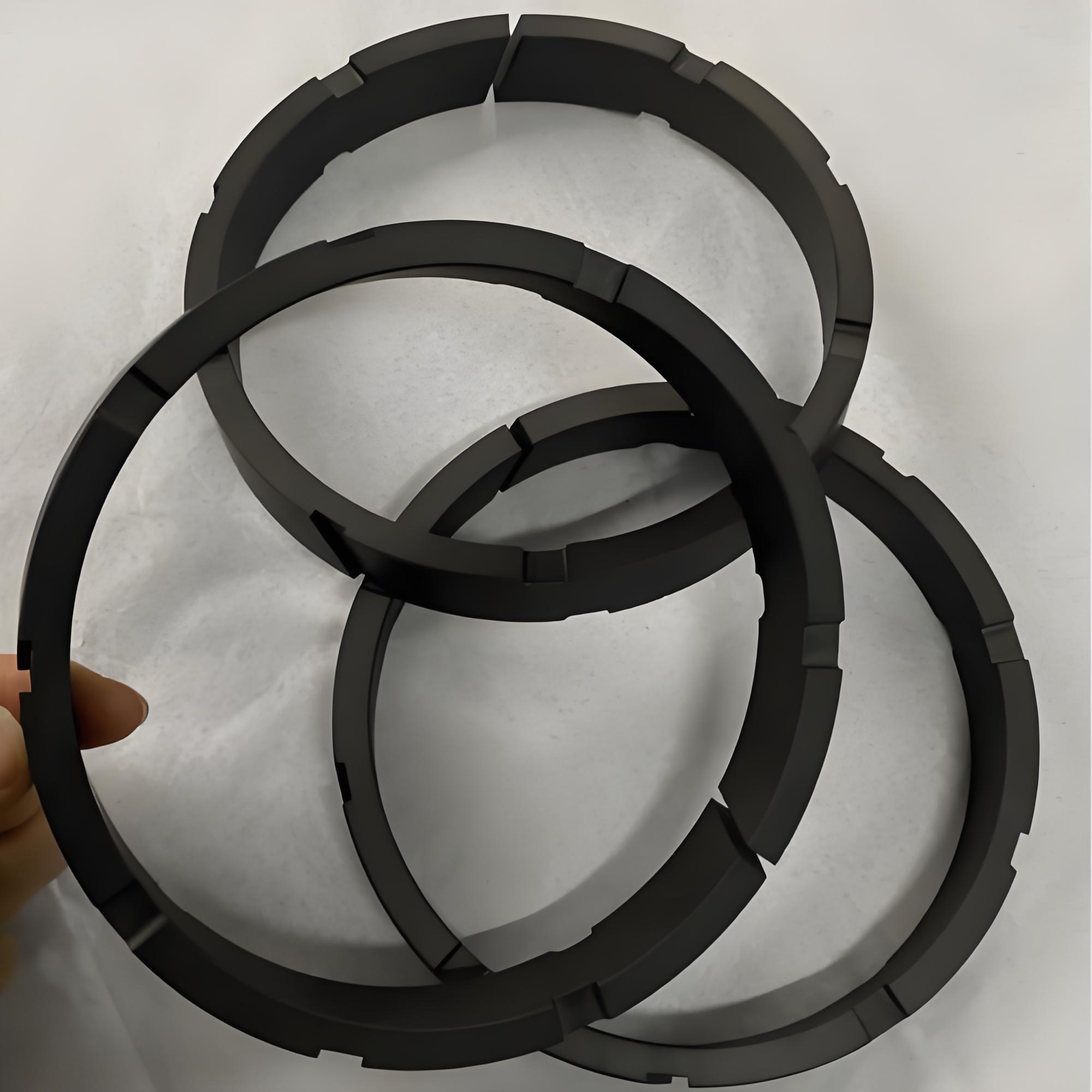

|Typical Case 2 : Thick walled PEEK sealing ring

This PEEK sealing ring has a wall thickness of ≥ 3 mm and is specifically designed for high-pressure working conditions.

molded high viscosity PEEK 990CA30 , it has extremely high rigidity and creep resistance, and can maintain dimensional stability under long-term high pressure.

The shear rate of 990CA30 melt is relatively low, which can effectively compensate for the thick wall area during the pressure holding stage, reduce the depression (shrinkage mark) on the inner side of the sealing ring, and ensure the dimensional and positional accuracy of the finished product.

|

Certifications

|

Data Sheet

Download PEEK Technical data sheet

PRESPEEK990CA30.pdf

Test Item	Test Method	Conditions	Units	Test Data
Mechanical Data
Tensile Strength	ISO 527	Yield, 23℃	MPa	260
Tensile Elongation	ISO 527	Break, 23℃	%	1.7
Flexural Strength	ISO 178	Yield,23℃	MPa	380
Flexural Modulus	ISO 178	23℃	GPa	23
Compressive Strength	ISO 604	23℃	MPa	300
Charpy Impact Strength	ISO 179/1eA	Notched	kJ m-2	7
Charpy Impact Strength	ISO 179/1U	Unnotched	kJ m-2	45
Mould Shrinkage	ISO 294-4	Along Flow	%	0.1
Mould Shrinkage	ISO 294-4	Across Flow	%	0.3
Thermal Data
Melting Point	ISO 11357	-	℃	343
Glass Transition (Tg)	ISO 11357	Onset	℃	143
Special Heat Capacity	DSC	23℃	kJ kg-1 ℃-1	1.8
Coefficient of ThermalExpansion	ISO 11359	Along flow below Tg	ppm K-1	5
Coefficient of ThermalExpansion	ISO 11359	Along flow above Tg	ppm K-1	6
Heat DeflectionTemperature	ISO 75	1.8 Mpa	℃	336
Thermal Conductivity	ISO 22007-4	23℃	W m-1 K-1	0.95
Flow
Melt Index	ISO 1133	380℃,5kg	g 10min-1	2.3
Miscellaneous
Density	ISO 1183	Crystalline	g cm-3	1.4
Density	ISO 1183	Amorphous	g cm-3	-
Shore D Hardness	ISO 868	23℃		88
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	24h, 23℃	%	0.04
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	Equilibrium, 23℃	%	0.3
