880CA30 is a 30% carbon fiber reinforced standard flow PEEK pellets. Under the ISO1133 testing standard, the flowability under testing conditions (380 ° C, 5kg) is 5g/10min The use of medium-viscosity Carbon fiber PEEK pellets not only provides excellent mold-filling capability but also satisfies the routine mechanical property requirements of the final parts. Compared to high-flow grades, a moderate melt flow index (MFI) effectively reduces the shear rate during processing, it can reduce carbon fiber damage caused by over-shearing. This helps preserve fiber length and maintain the reinforcement efficiency of the PEEK pellets. This contributes to higher flexural modulus and improved creep resistance in finished parts.
ESD PEEK granules (also known as anti-static PEEK pellets) are carbon-fiber modified compounds engineered for injection molding of semiconductor components. They deliver stable surface resistivity of 10⁶–10⁹ Ω/sq, protecting sensitive circuits from static damage while retaining PEEK's high-temperature strength. Designed for cleanroom environments, these electrostatic dissipative granules offer continuous service at 260°C and excellent chemical resistance. ESD PEEK is the preferred material for test sockets, wafer carriers, and precision gear systems requiring both EMI protection and structural reliability
PEEK 990GF30 is a high-viscosity, 30 % glass fiber reinforced PEEK pellets that delivers substantially higher tensile strength, flexural modulus and improved dimensional stability compared to unfilled PEEK. The high melt viscosity provides stable extrusion behavior and minimizes warpage in thick-section molded parts. With reduced coefficient of thermal expansion (CTE) and good creep resistance at elevated temperature, it is suitable for extrusion of rod, sheet and tube, as well as thick-walled injection molding requiring structural rigidity. Not recommended for thin-wall or long-flow-path injection due to limited melt flow (MFR ≈ 4.5 g/10 min, ISO 1133, 380 ℃/5 kg).
881G is a high purity virgin grade PEEK pellets,It is specifically designed for the production of PEEK 3D printing filaments. It has excellent fluidity. The 3D printed filaments made from it print very smoothly, significantly reducing the risk of clogging the nozzle, and it also has excellent toughness.
PEEK 880G is our Enhanced Flow unfilled PEEK pellets (MFR 20 g/10min, ISO 1133), offering easier mold filling for thin-walled or complex injection parts while retaining the inherent toughness of virgin PEEK. Compared with high-viscosity PEEK 990G, 880G provides lower melt viscosity; vs. ultra-high-flow grades it has higher molecular weight and better fatigue resistance. Download TDS and selection guide.
PEEK pellets 990G is an unfilled pure resin with standard flowability and high melt strength, suitable for extrusion of profiles and manufacturing of PEEK films.
PEEK material is currently one of the best temperature resistant thermoplastic materials, with a wide range of applications

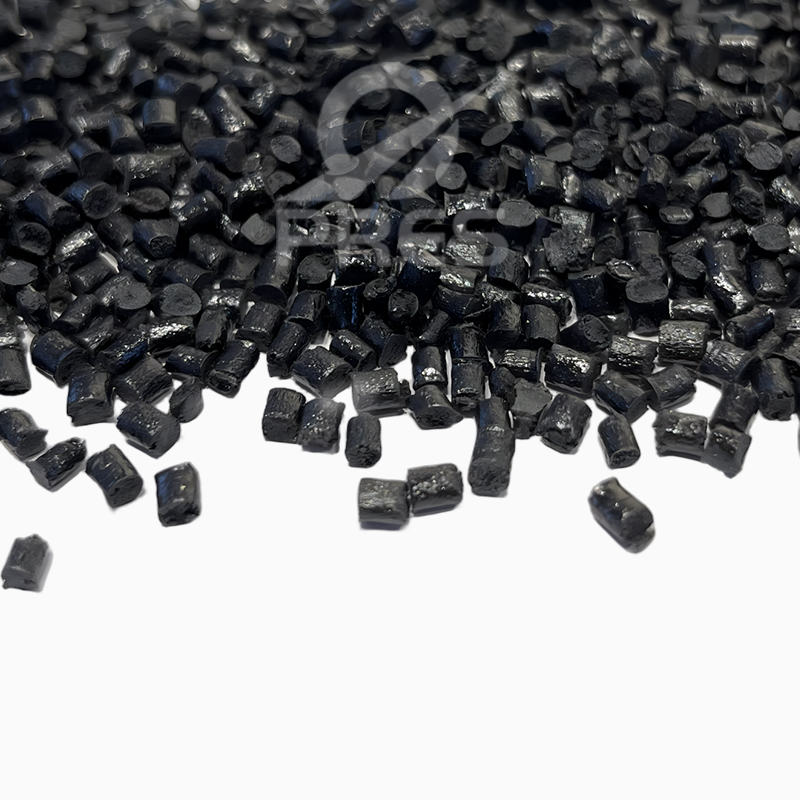

PRES PEEK 990CA30 is a 30% carbon fiber reinforced high‑viscosity PEEK compound.
MFI: 2.3 g/10 min (ISO 1133, 380°C / 5 kg).
The higher melt viscosity minimizes fiber attrition during injection molding, contributing to improved fiber retention and enhanced tensile and flexural properties of molded parts.
PEEK Pellets Manufacturer – Premium Grade for High-Performance Applications
PEEK Pellets is a material with excellent comprehensive properties. It boasts outstanding fatigue resistance, corrosion resistance, a long-term operating temperature of 260°C, and high mechanical strength. It can be used for injection molding, extrusion, and compression molding. It is applicable to various harsh environments such as high temperatures and strong chemical corrosion. It has multiple enhanced models to meet various performance requirements, such as high strength, wear resistance, conductivity and anti-static properties.
PRES is a PEEK pellets manufacturer supplying seven production grades from our own granulation and compounding lines in Dongguan, China.
Unfilled 990G (MFR 10 g/10 min) and 880G (MFR 20 g/10 min) cover extrusion of rod, sheet and tube and thin-wall injection; 881G is a high-purity unfilled grade for drawing PEEK 3D printing filament.
Reinforced grades extend the range: 990GF30 delivers 175 MPa tensile and 11.3 GPa flexural modulus, 880CA30 reaches 250 MPa and 22 GPa at standard flow, and 990CA30 reaches 260 MPa and 23 GPa with CTE 5 ppm/K. All grades share a 343 °C melting point and 260 °C continuous service temperature.
PEEK pellets :Virgin and reinforced grade,how to choose?
PEEK inherently exhibits a relatively high melt viscosity, which makes melt flow an important criterion when selecting PEEK pellets.
Medium ~high flow grade:Parts with complex geometries, long flow paths, fine details or thin walls,this gradeensure complete filling of the cavity.
Standard-flow or high-viscosity:Part withSimple, thick-walled injection moulded parts, or extrusion applications this grade is more appropriate, as it provides higher melt strength,better toughness and better dimensional stability.
Unfilled Pure PEEK pellets
Unfilled PEEK pellets possess excellent toughness and fatigue resistance. The unfilled PEEK pellets have superior chemical corrosion resistance compared to the fiber-filled PEEK pellets.
High Purity / High Flow PEEK Pellets: Designed specifically for producing 3D printing filaments where melt flow and consistency are paramount.
Electrostatic dissipation(ESD PEEK pellets):By filling carbon fibers and strictly controlling the resistance value, the characteristics of high strength and anti-static are achieved.
The flowability data listed below were measured in accordance with ISO 1133 under test conditions of 380 °C and a 5 kg load, and are provided for reference only.
How to Select: Unfilled vs GF30 vs CF30 vs Bearing Grade vs ESD
Need more detail about different grades,check PEEK material selection guide to find out which grade conform to the long-term working conditions of the product
Elongation at break 45%, no fiber abrasion concerns
PEEK Pellet Injection Molding Parameters
Grade
Drying
Melt Temperature
Mold Temperature
Injection Speed
Notes
Virgin PEEK
150°C / 4h
380-420°C
150–200°C
Medium–High
General injection
GF30 PEEK
150°C /4 h
380-420 °C
150–200°C
low-Medium
Dimensional stability
CF30 PEEK
150°C /4 h
380-420 °C
150–200°C
low-Medium
Control fiber breakage
ESD PEEK
150°C /4 h
380-420 °C
150–200°C
high speed
Resistivity affected by processing
The above parameters are the initial reference values. The actual settings need to be adjusted according to the material type, equipment, mold, part thickness and crystallization requirements. The resistivity of the ESD material should also be verified through actual molded samples.
If you need detailed PEEK particle processing parameters, please refer to the PEEK pellets injection guide. If you need to adjust the surface resistance value of the ESD PEEK injection product, please refer to the ESD PEEK injection guide.
About PRES Manufacturer and Our High‑Performance Materials
The PEEK raw materials of PRES are all produced in China. China already had the capability to synthesize PEEK (polyetheretherketone) materials, and the annual output is gradually increasing. The prices are generally lower than those of imported PEEK materials.
The modified PEEK Pellets from PRES are using high-purity PEEK raw materials and fillers. We Purchase the fillers from the leading enterprises . Therefore, the PEEK materials of PRES have excellent performance and high purity.
Why Choose PEEK Pellets from PRES?
Analyze your formula :we have our testing room ,we can test the performance of the PEEK pellets you have,and manufacture the same grade as your existing PEEK particles，.
Testing each batch: From R&D through granulation, modification,we bring complete control over PEEK pellet production and processing,We have our own testing room and spline injection molding machines. We can conduct ISO/ASTM standard tests on each batch of particles, including tests for tensile elongation, impact strength, fluidity, etc.
Customisation Capability: As a PEEK Pellets Manufacturer we can tailor flow, reinforcement, colour, ESD, and other properties to your specific design and processing requirements.
Application‑Driven Support: We guide customers from material selection through processing guidelines, mould design, and downstream machining, ensuring maximal value from our pellets.
Typical Applications of Our PEEK Pellets
As a dedicated PEEK Pellets Manufacturer, our products serve across a broad spectrum of industries:
Industrial Machinery / Chemical Processing: Seals, valves, pumps, gears, and sliding surfaces where high wear resistance and chemical stability are required.
Frequently Asked Questions
Q: What is the difference between CF30 and CA30? A: CF30 denotes the 30% carbon-fiber-reinforced PEEK category. CA30 (e.g., 880CA30, 990CA30) is the PRES internal grade within that category. They refer to the same formulation family.
Q: Is 881G a finished 3D printing filament? A: No. 881G is a high-purity, high-flow PEEK pellet grade designed for extruding 3D printing filament. It is raw material for filament producers, not finished filament.
Q: How do I verify the surface resistivity of ESD PEEK parts? A: Surface resistivity must be measured on the actual injection-molded part using ASTM D257 or IEC 60093. Pellet-level resistivity is not a substitute for post-molding verification, as gate design, screw speed, fill ratio and mold temperature all affect the conductive network.
Q: Where can I download the TDS for each grade? A: TDS PDFs are linked in the grade comparison table above for 880G, 881G, 990G, 880GF30, 990GF30, 880CA30, 990CA30, 880ESD and 990ESD. Bearing-grade TDS is available on request.
As a high-performance plastic supplier in China, PRES offers a range of high-performanceplastic products, including plastic pellets, plastic plates, plastic rods, plastic tubes, plastic powders, and high-performance 3D printing filaments. Meanwhile, we provide mold design & manufacturing & injection molding services.
