At Dongguan PRES Group Co., Ltd., we see the same pattern again and again: when engineers need a material that can survive heat, chemicals, wear, and dimensional stress, they often turn to polyetheretherketone material properties as the benchmark. PEEK is not just another engineering plastic; it is a high-performance polymer that helps manufacturers replace metal, extend service life, and improve reliability in demanding environments. [dielectricmfg]
For OEM buyers, brand owners, wholesalers, and industrial manufacturers, understanding PEEK's true properties is essential before choosing a grade, a form, or a processing method. That is why this guide explains the material from both a technical and practical perspective, with a focus on real production value from a China-based OEM supplier. [mcam]
Polyetheretherketone, commonly called PEEK, is a semi-crystalline thermoplastic known for its balanced combination of thermal, mechanical, and chemical performance. Its molecular structure gives it high rigidity, excellent heat resistance, and strong resistance to hydrolysis and many aggressive chemicals. [eureka.patsnap]
Unlike many general-purpose plastics, PEEK keeps its performance in harsh operating conditions. That is why it is widely used in aerospace, automotive, electrical, industrial, and medical applications. [specialchem]
The strongest reason PEEK is so widely adopted is its property balance. It is not only heat-resistant; it is also tough, stable, and chemically resilient. [aon3d]
PEEK can operate continuously at around 250°C to 260°C, with short-term resistance above that range depending on grade and application. It also has a glass transition temperature around 145°C and a melting temperature around 340°C to 345°C, which gives it a wide working window for demanding parts. [peekchina]
PEEK offers high tensile strength, rigidity, and fatigue resistance, making it suitable for structural and load-bearing components. Industry data from advanced material suppliers show tensile strength around 115 MPa for unfilled grades, with good elongation and modulus values for engineering applications. [eureka.patsnap]
PEEK resists many solvents, acids, alkalis, and hydrolysis, which makes it valuable in chemically aggressive environments. This resistance helps preserve part performance and reduces failure risk in seals, valves, pumps, and process equipment. [plasticmachininginc]
PEEK naturally performs well in wear applications and can deliver low friction in moving parts. In practice, this makes it a strong candidate for bearings, bushings, gears, and sliding components where lubrication may be limited. [dielectricmfg]
Low moisture absorption is one of PEEK's most important advantages for precision parts. Because it absorbs very little water, it maintains size, shape, and mechanical consistency in humid or variable environments. [aon3d]
PEEK is often selected when standard engineering plastics reach their limit. It is a metal-replacement material in many applications because it combines lower weight with strong performance under heat and load. [performanceplastics]
Here are the most common reasons engineers specify PEEK:
- High temperature resistance.
- Excellent chemical resistance.
- Strong wear resistance.
- Low moisture absorption.
- Good electrical insulation.
- Excellent dimensional stability.
- Long service life in harsh environments. [dielectricmfg]
For manufacturers, these properties can translate into fewer failures, less maintenance, and better product consistency.
PEEK is often compared with PPS, PI, PTFE, and other advanced polymers. The main difference is its balance: some plastics may resist heat well but lack toughness, while others may be chemically stable but not mechanically strong. [peekchina]
| Material | Strength | Heat Resistance | Chemical Resistance | Wear Resistance | Typical Use |
|---|---|---|---|---|---|
| PEEK | Very high | Very high | Very high | Very high | Aerospace, medical, industrial parts eureka.patsnap+1 |
| PPS | High | High | High | Medium | Electrical, automotive |
| PI | Very high | Extremely high | High | Medium | Extreme-temperature applications peekchina |
| PTFE | Medium | High | Excellent | High | Seals, low-friction parts |
For many OEM programs, PEEK becomes the practical choice when multiple performance requirements must be met at once.
PEEK is used across industries because it performs well where failure is expensive. In aerospace, it is used for structural and internal components that need high strength, low weight, and heat resistance. [peekchina]
In medical and dental applications, PEEK is valued for its biocompatibility and stability. In electrical and electronics, it is used for connectors, insulators, and precision components that must retain insulation under heat. [eureka.patsnap]
Common PEEK applications include:
- Bearings and bushings.
- Gears and wear rings.
- Seals and valve components.
- Electrical connectors and insulators.
- Aerospace brackets and structural parts.
- Medical device components.
- Industrial pump and compressor parts. [plasticmachininginc]

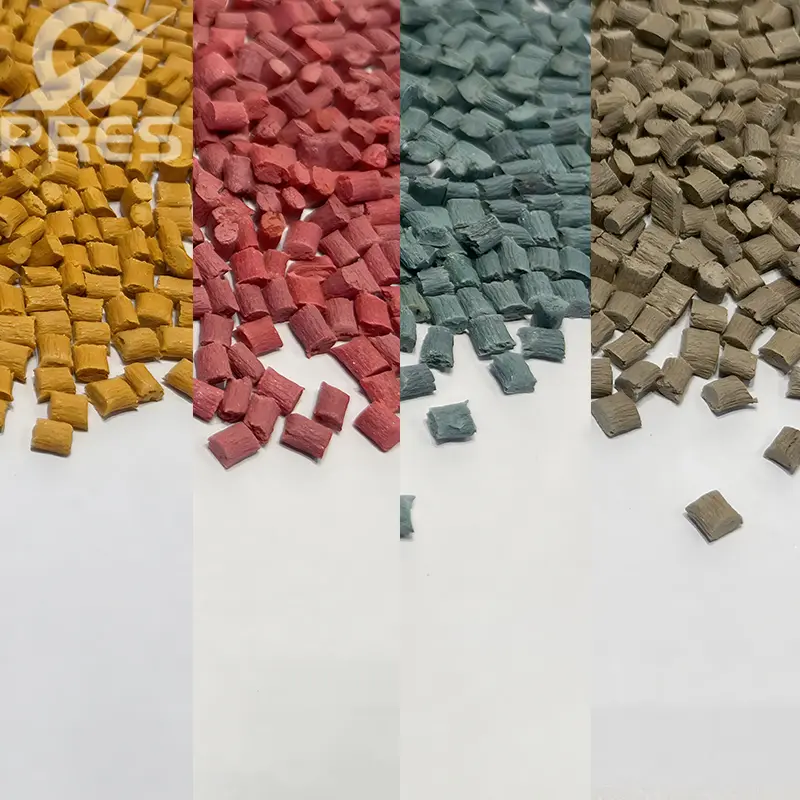

At Dongguan PRES Group Co., Ltd., we support OEM and industrial customers with multiple PEEK product formats, including pellets, sheets, rods, tubes, powders, and high-performance 3D printing filaments. This matters because the right format reduces machining loss, improves process efficiency, and helps buyers match production needs more precisely. [dgpres.en.made-in-china]
Our form-based supply model is especially useful for brand owners and manufacturers that need stable sourcing across different production stages. For example, pellets may support injection molding, while rods and sheets are better for machining precision components.
A good PEEK supplier does more than deliver raw material. It must help customers choose the right grade, manage consistency, and align the material with end-use requirements. [rosmould.gefera]
That is why OEM buyers often look for a partner that can provide:
1. Stable production capability.
2. Multiple product forms.
3. Custom specifications.
4. Fast communication.
5. Export-ready support.
6. Application guidance for processing and performance.
For global brands and wholesalers, this combination reduces sourcing risk and shortens development cycles.
PEEK is powerful, but it is not a casual material to process. Its high melting point and processing sensitivity mean temperature control and mold design matter more than with standard plastics. [mcam]
Practical processing guidance includes:
- Keep drying and storage conditions controlled.
- Use accurate temperature profiles during molding or extrusion.
- Plan for shrinkage and crystallinity effects.
- Match the grade to the part's mechanical and thermal load.
- Validate the finished part under real operating conditions.
This is where factory experience adds value: the same material can perform very differently depending on how it is processed.
Recent material guides continue to show strong demand for PEEK in high-stress industries, especially where lightweighting, corrosion resistance, and reliability are priorities. As advanced manufacturing grows, PEEK is increasingly used in applications that once depended on metal parts. [aon3d]
One important trend is the rise of high-performance 3D printing and precision machining. This expands the ways buyers can prototype and produce PEEK parts, especially when they need faster development and lower inventory complexity.
If your project requires high heat resistance, chemical stability, low wear, and dependable dimensional performance, PEEK is one of the strongest material choices available today. For OEM buyers, the key is not only choosing PEEK, but choosing the right supplier and the right product form for your process. [plasticmachininginc]
Dongguan PRES Group Co., Ltd. supports global customers with high-performance plastic products and OEM services designed for industrial reliability and application fit. If you are developing products that must perform under pressure, PEEK deserves serious evaluation. [plastic-material]
PEEK is known for high heat resistance, strong mechanical performance, chemical resistance, low moisture absorption, and excellent wear behavior. [dielectricmfg]
Many technical sources place PEEK's continuous service temperature around 250°C to 260°C, depending on grade and application. [americanadditive]
PEEK can replace metal in many parts because it is lighter, corrosion-resistant, and still strong enough for demanding applications. [performanceplastics]
Aerospace, medical, automotive, electrical, and industrial manufacturing are among the most common users of PEEK. [peekchina]
Dongguan PRES Group Co., Ltd. supplies PEEK pellets, sheets, rods, tubes, powders, and high-performance 3D printing filaments. [dgpres.en.made-in-china]
Yes. PEEK is widely used in high-performance 3D printing when printers and process conditions can handle its high thermal requirements. [plastic-material]
