In the rapidly evolving world of additive manufacturing, high-performance thermoplastics have moved from the fringe to the forefront of industrial production. Among these, Polyether ether ketone—widely known as PEEK—stands out as a "super polymer." If you are an engineer, product designer, or medical device manufacturer, you may have asked: What is PEEK 3D filament?

At its core, PEEK is an advanced, semi-crystalline engineering thermoplastic known for its exceptional strength-to-weight ratio, chemical inertness, and superior thermal resistance [10, 11, 15]. Unlike standard materials like PLA or ABS, PEEK 3D filament is engineered to perform in the most demanding environments, from aerospace engine components to patient-specific medical implants [8, 11, 14].

PEEK 3D Printing Filaments (1)

Why Choose PEEK for Advanced Additive Manufacturing?

The primary appeal of PEEK filament lies in its ability to replace metal parts while offering significant weight reduction—often by as much as 80% compared to stainless steel—without sacrificing structural integrity [4].

- Exceptional Thermal Resistance: PEEK maintains its mechanical properties at continuous-use temperatures up to ~250 °C [8].

- Chemical & Fatigue Resistance: It resists a wide range of fuels, oils, solvents, and industrial fluids, making it ideal for harsh operating conditions [1, 16].

- Biocompatibility: PEEK is biologically inert and radiolucent, making it a gold standard for orthopedic, trauma, and spinal implants [14, 15, 18].

- Flame Retardancy: Its inherent resistance to fire, smoke, and toxicity meets the stringent safety requirements of the aerospace industry [11, 16].

PEEK vs. Other High-Performance Polymers

Material	Key Advantage	Best Use Case
PEEK	Versatile balance of strength, heat, and chemical resistance [10]	Medical implants, aerospace parts
PEKK	Superior layer adhesion and easier to print than PEEK [16]	Large, complex functional prototypes
PEI (ULTEM)	Extreme flame retardancy and high heat tolerance [8]	Aerospace interior components

Mastering the Challenges of Printing PEEK Filament

While PEEK is a powerhouse material, it is not "plug-and-play." Achieving high-quality results requires specialized equipment and strict adherence to process controls [6, 9].

- High-Temperature Requirements: Printing PEEK typically requires a high-temperature 3D printer equipped with a heated chamber (to prevent warping) and an all-metal hotend capable of reaching 370°C to 450°C [1, 2, 6].

- Crystallization Control: The cooling and crystallization process must be precisely managed to ensure the material achieves its required density and mechanical properties [11].

- Moisture Sensitivity: Like many high-performance polymers, PEEK is hygroscopic. Drying the filament thoroughly before and during the print process is critical to avoiding porosity and structural defects [2, 3].

Industry Applications: Where PEEK Shines

1. Aerospace & Defense

Engineers leverage PEEK to design lightweight, robust components such as aircraft interiors, engine ducting, and structural brackets that must withstand extreme thermal cycling [3, 8].

2. Personalized Medical Devices

The additive manufacturing of PEEK has revolutionized surgical care. Hospitals are now using PEEK 3D printing to create patient-specific cranial and spinal implants that offer a faster, more accurate fit than traditional, generic machined alternatives [12, 17].

3. Industrial Tooling & Maintenance

For small-batch production and rapid prototyping, PEEK serves as a durable substitute for machined metal parts, allowing for quicker iteration and lower production costs in maintenance, repair, and overhaul (MRO) operations [1, 9].

Expert Insights: Tips for Successful PEEK Projects

As experts in advanced additive manufacturing, we observe that many users fail because they treat PEEK like standard filament. Here are three expert tips for success:

1. Invest in the Environment: Do not attempt high-quality PEEK prints on a standard open-frame printer. A fully enclosed, actively heated chamber is mandatory for preventing internal stresses and layer delamination [1, 11].

2. Optimize for Anisotropy: FDM-printed parts are anisotropic—meaning they are stronger along the filament path than across layers. Design your parts to account for load paths, orienting them to maximize strength in the direction of intended force [7].

3. Post-Processing Matters: Annealing your PEEK parts after printing can significantly enhance their crystallinity, leading to superior mechanical performance and thermal stability [1].

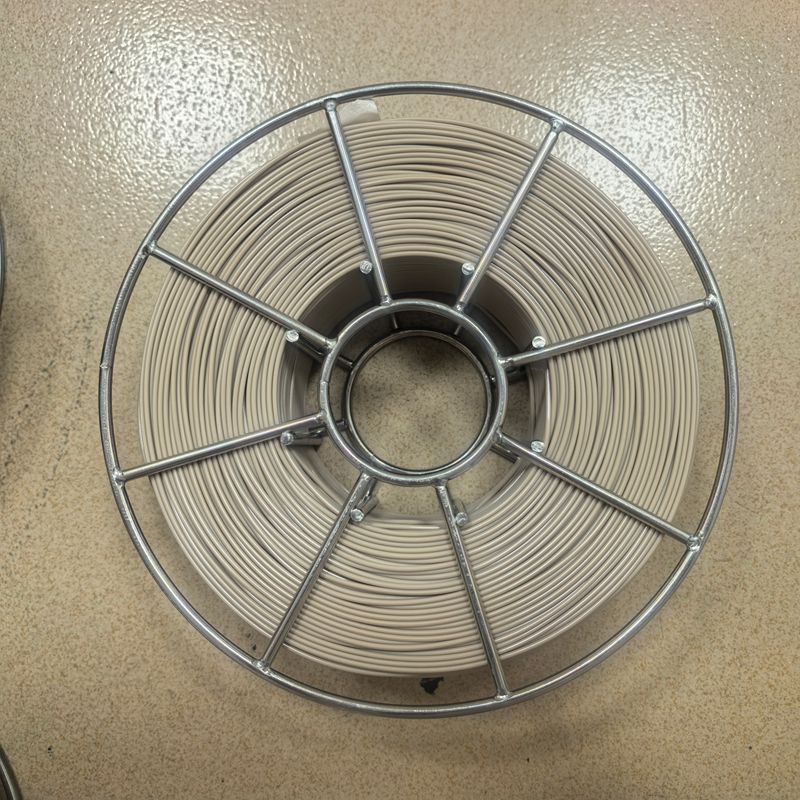

PEEK 3D Printing Filaments (2)

Future Outlook

The landscape for PEEK 3D filament is expanding rapidly. With ongoing research into fiber-reinforced PEEK (such as carbon-fiber or glass-fiber filled variants) and the increased accessibility of industrial-grade printers, we expect to see even broader adoption across robotics, automotive, and deep-sea exploration [3, 7, 12, 14].

Are you ready to elevate your engineering projects?

Whether you require specialized small-batch manufacturing for industrial spares or precision rapid prototyping for medical and aerospace applications, our advanced SLS and FDM solutions are tailored to your needs. Contact our team today to discuss how high-performance PEEK components can transform your production workflow.

Frequently Asked Questions (FAQ)

1. Is PEEK harder to 3D print than PLA?

Yes, significantly. PEEK requires extremely high temperatures, a controlled thermal environment, and specialized hardware. It is not recommended for beginners.

2. Can I use PEEK for food-contact applications?

Some grades of PEEK are certified for medical or food contact, but you must ensure you are purchasing the correct, certified filament grade for your specific application.

3. What is the difference between PEEK and PEKK?

Both are PAEK polymers. PEKK generally offers better layer adhesion and can be easier to print in large geometries, while PEEK is often preferred for its slightly higher thermal resistance [16].

4. Do I need to dry PEEK filament?

Absolutely. PEEK is hygroscopic and will absorb moisture from the air, which can lead to poor layer adhesion and surface defects. Always store and print from a dry environment.

5. Can 3D printed PEEK replace metal?

In many applications, yes. Its high strength-to-weight ratio allows it to replace aluminum or steel in non-critical structural or high-wear applications, significantly reducing component weight [1, 4, 15].
