At Dongguan PRES Group Co., Ltd., we supply high-performance PEI materials—including PEI pellets, sheets, rods, tubes, powders, and high-performance 3D-printing filaments—to overseas brands, wholesalers, and manufacturers through dependable OEM service. In our work with engineering-plastic applications, annealing PEI parts is one of the most effective post-processing methods for reducing residual stress, improving dimensional stability, and lowering the risk of distortion during CNC machining, assembly, and elevated-temperature service.
PEI, often known by the well-known ULTEM™ trade name, is an amorphous high-performance thermoplastic valued for high heat resistance, stiffness, flame resistance, and stable performance across demanding conditions. Yet even a premium PEI component can retain internal stress after extrusion, injection molding, machining, thermoforming, or FDM/FFF 3D printing. A controlled PEI annealing cycle helps the polymer relax those stresses—provided that temperature, support, hold time, and cooling rate are properly controlled.

Polyetherimide (PEI) is an amorphous engineering polymer with a high glass-transition temperature. For example, unfilled ULTEM™ 1000 PEI is commonly reported with a glass-transition temperature of approximately 217°C. This gives PEI excellent thermal capability, but it also means that processing history matters.
During manufacturing, PEI can develop non-uniform molecular orientation and residual stress:
- Injection molding may create frozen-in stress due to rapid cooling, packing pressure, and uneven wall sections.

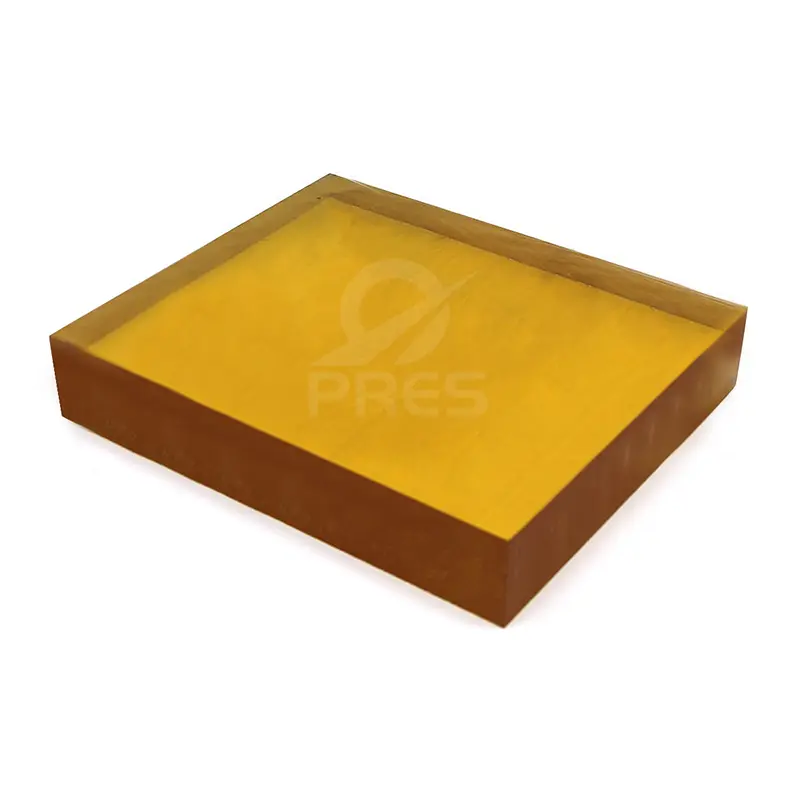

- Extruded PEI sheet, rod, and tube can retain stress from draw-down, cooling, and cutting.
- CNC-machined PEI components may warp after material removal exposes internal stress gradients.
- 3D-printed PEI parts can retain thermal stress between layers due to rapid cooling and insufficient chamber temperature.
- Thin-wall or asymmetrical parts are especially vulnerable to movement during post-processing.
Annealing PEI parts is a controlled heat-treatment process that allows polymer chains to relax without melting the part. The objective is typically stress relief and dimensional stabilization, not crystallization. Unlike semi-crystalline polymers such as PEEK, PEI remains amorphous; its annealing behavior should therefore be understood as stress management rather than a major crystallinity-building treatment.
For manufacturers producing precision electrical housings, aerospace fixtures, medical-device components, semiconductor tooling, thermal-insulation parts, and high-temperature jigs, this distinction is critical. Annealing can help preserve tolerances when a part later sees heat, mechanical loads, machining operations, or chemical exposure.
A well-designed annealing process can improve consistency, but it cannot correct an inherently poor part design, excessive molding stress, bad printing conditions, or inadequate material drying. The most valuable benefit is usually predictability.
| Performance area | How annealing may help | What to monitor |
|---|---|---|
| Dimensional stability | Relieves frozen-in stress that can cause later movement | Critical dimensions before and after annealing |
| CNC machinability | Reduces the likelihood of post-machining warp or stress-related distortion | Flatness, bore size, parallelism, runout |
| 3D-print reliability | Helps relax thermal stress after FDM/FFF production | X/Y/Z dimensional change and warpage |
| Crack resistance | Can reduce stress concentration that contributes to crazing or cracking | Surface appearance and stress-crack testing |
| High-temperature service | Makes post-process movement more predictable before installation | Retained fit after thermal cycling |
| Batch consistency | Establishes a repeatable process window for OEM production | Furnace records, inspection trends, lot traceability |
Industry guidance for stock-shape annealing identifies PEI as a material that may be annealed to minimize stress crazing. One published guideline lists an air-annealing cycle for unfilled ULTEM® PEI of heating to 390°F (about 199°C) over four hours, holding for 30 minutes per 1/4 inch of thickness, then cooling at 50°F per hour (about 28°C/hour). Glass-filled grades may require a different cycle, including a higher listed target temperature of 400°F (about 204°C).
These figures are useful as a starting point—not as a substitute for a validated production specification. Always prioritize the resin supplier's current technical data, the grade-specific processing guide, and your own trial results.
[Suggested visual: A simple temperature-versus-time chart showing controlled ramp-up, hold, and controlled cool-down.]
In production, many annealing failures begin before the part enters the oven. We recommend treating PEI annealing as a documented manufacturing operation rather than an informal workshop task.
Do not use one schedule for every PEI material. Confirm whether the part is:
- Unfilled PEI.
- Glass-filled PEI.
- Carbon-fiber-filled PEI.
- A PEI blend.
- Flame-retardant, reinforced, or specially compounded PEI.
- Extruded stock shape, molded part, machined part, or 3D-printed part.
Reinforcement changes thermal expansion behavior, heat flow, stiffness, and warpage risk. A glass-filled PEI part may need a different thermal profile from an unfilled PEI component, even when both parts look similar.
At PRES, OEM customers should provide the material grade, color, geometry, thickness range, tolerance requirement, fabrication route, and end-use temperature. This allows the material and annealing recommendation to be developed around the application—not around a generic oven recipe.
PEI is hygroscopic. Moisture control is important before molding, extrusion, and 3D printing, and it can also matter when processing parts that have been exposed to humid storage conditions.
Before annealing, make sure parts are:
- Clean and free of oil, coolant, dust, labels, and release agents.
- Fully dry according to the material supplier's guidance.
- Protected from contaminants that could stain or mark the surface at high temperature.
- Loaded in a way that avoids direct contact marks on cosmetic surfaces.
For high-value components, use a dedicated clean oven. Do not use a food oven or a furnace with uncontrolled temperature overshoot, unknown contamination, or poor air circulation.
Measure the dimensions that matter before annealing. This turns annealing from guesswork into a controllable process.
At minimum, record:
- Overall length, width, and height.
- Hole diameter and center-to-center distance.
- Flatness and parallelism.
- Wall thickness.
- Threaded features or press-fit locations.
- Mass, if useful for quality documentation.
- Visual condition, including existing warp, sink, cracking, or surface defects.
Use calibrated tools appropriate to the tolerance: calipers for general screening, micrometers for thickness, CMM inspection for precision features, and flatness gauges or optical measurement for complex geometry.
The following workflow is a practical starting framework for annealing PEI parts for dimensional stability. Validate it through sample trials before applying it to production components.
Use a programmable, forced-air industrial oven with verified temperature uniformity. The oven should have:
- A calibrated independent temperature sensor.
- A stable and controlled ramp rate.
- Enough space for airflow around every part.
- Data logging for temperature and cycle traceability.
- A temperature range appropriate for PEI stress-relief work.
A common mistake is setting the oven to a temperature without confirming the true temperature at the part location. Local hot spots can cause uneven softening, distortion, discoloration, or loss of dimensional control.
Part support is as important as oven temperature. PEI softens as it approaches its glass-transition region. Without adequate support, gravity can introduce sagging or distortion.
Use supports suited to part geometry:
- Place flat parts on a level, clean, low-marking fixture.
- Use a conformal metal fixture for complex profiles.
- Support thin-wall housings internally to prevent collapse.
- Use a matched mold or fixture for parts with critical curvature.
- Keep unsupported spans as short as possible.
- Avoid point loads that may leave marks or create localized deformation.
For 3D-printed PEI parts, orient the part so the most dimensionally critical surfaces are supported. Hollow, low-infill, thin-wall prints require special caution. Practical annealing guidance for printed parts similarly recommends support molds or sand beds to reduce warpage during heating.
A gradual temperature ramp minimizes temperature differences between the part surface and core. Thick PEI parts need more time than thin sheet components because the center of the part heats more slowly.
A conservative process approach is:
1. Load parts at room temperature or at the beginning of a controlled cycle.
2. Increase temperature gradually to the validated annealing setpoint.
3. Allow the entire part—not only the oven air—to reach equilibrium.
4. Avoid opening the oven repeatedly during the ramp or soak period.
Published stock-shape guidance specifies a four-hour heat-up period to the listed PEI annealing temperature, reinforcing the need for controlled heating rather than rapid exposure to high heat.
The hold stage gives internal stresses time to relax. Hold time should be related to the thickest cross-section, not the average wall thickness.
One industry guideline for unfilled PEI identifies a hold of 30 minutes per 1/4 inch of thickness at its specified annealing temperature. For a part with a 1/2-inch maximum thickness, this framework would indicate a two-hour hold after the component has reached temperature.
However, do not automatically extend soak time indefinitely. Excessive heat exposure can increase the chance of color shift, fixture marks, geometric movement, or process inefficiency. The best hold time is the shortest validated time that delivers stable post-anneal dimensions.
Cooling too quickly can reintroduce thermal stress—the exact issue annealing is meant to reduce.
For PEI stock shapes, a published guideline specifies cooling at 50°F per hour, or about 28°C per hour, in air. Your actual cooling rate may vary by grade, thickness, and fixture mass, but the principle remains the same: cool slowly, evenly, and with the part supported.
Do not remove a hot PEI part and place it on a cold metal table. Do not use fans, cold air, water, or compressed air to accelerate cooling. Let the part cool in the oven or in a controlled cooling environment until it is sufficiently near room temperature.
After cooling, inspect the part before approving it for machining, assembly, shipping, or customer use.
Check:
- Critical dimensions against the pre-anneal baseline.
- Flatness, warpage, twist, and bow.
- Surface discoloration, gloss changes, marks, cracks, or crazing.
- Fit with mating components.
- Dimensional stability after 24 hours at room temperature when tolerances are tight.
For critical applications, add a short thermal-cycle or functional-fit test. The goal is not just to prove that the part passed immediately after annealing; it is to confirm that it remains stable in the conditions it will actually encounter.
The table below is a practical planning guide, not a universal material specification. It should be refined through trials using your exact PEI grade and part geometry.
| Process variable | Starting practice | Why it matters |
|---|---|---|
| Oven type | Programmable, calibrated forced-air oven | Reduces temperature variation |
| Part preparation | Clean, dry, measured, and documented | Prevents contamination and enables comparison |
| Fixture | Flat support, conformal fixture, or internal support | Limits sagging and warpage |
| Temperature | Use grade-specific supplier guidance; published PEI stock-shape guidance lists about 199–204°C | PEI grade and reinforcement affect the window |
| Heat-up | Slow, controlled ramp; published guidance lists four hours to target for stock shapes | Reduces thermal gradients |
| Hold time | Validate by maximum thickness; published guidance lists 30 minutes per 1/4 inch | Enables stress relaxation through the section |
| Cooling | Slow and controlled; published guidance lists 50°F/hour | Helps avoid newly induced stress |
| Inspection | Measure immediately and again after conditioning | Confirms true dimensional stability |
PEI's high glass-transition temperature gives it strong high-heat potential, but it also raises the importance of precise process control. PEI is widely recognized as among the more dimensionally stable thermoplastics across a broad temperature range; annealing helps manufacturers preserve that advantage in a finished component.
Annealing PEI 3D-printed parts requires extra care because FDM/FFF components are anisotropic: their properties and dimensional movement can vary by print orientation, layer bonding, infill, perimeter count, and thermal history.
A peer-reviewed study on additively manufactured ULTEM™ 9085 reported dimensional changes generally within 5% under the evaluated annealing process, while also emphasizing the material's distinct thermal behavior. That figure should not be used as an expected tolerance. For precision parts, a 5% shift may be unacceptable. Instead, it illustrates why validation is necessary.
- Print in a heated chamber suitable for PEI rather than relying on annealing to compensate for poor thermal management.
- Use adequate wall count and infill where geometry stability is important.
- Avoid very thin unsupported bridges and long cantilevers.
- Anneal first articles before committing to final CAD compensation.
- Measure shrinkage independently in X, Y, and Z directions.
- Scale future builds only after repeated measurements show a consistent, repeatable trend.
- Use fixtures or support media for delicate geometries.
- Validate mechanical and dimensional performance after annealing.
AON3D notes that PEI annealing is generally used for stress relief and improved dimensional stability, and that better in-process chamber temperature should be prioritized rather than expecting post-processing to correct inadequate thermal control during printing.
Likely causes: inadequate fixture support, temperature too high, uneven heating, thin unsupported geometry, or rapid cooling.
Corrective actions: redesign the fixture, lower the validated setpoint, slow the ramp, support internal cavities, and reduce unsupported spans.
Likely causes: insufficient pre-anneal stabilization, inconsistent material condition, overly aggressive cycle, orientation effects in 3D printing, or uneven part thickness.
Corrective actions: measure several trial parts, map directional shrinkage, adjust CAD allowances only after repeatability is confirmed, and separate different geometries into different annealing recipes.
Likely causes: dirty fixture surfaces, contamination, direct metal contact, local overheating, or excessive dwell time.
Corrective actions: clean the oven and fixtures, use compatible low-marking support materials, verify oven uniformity, and shorten the cycle only after confirming stress relief remains sufficient.
Likely causes: overly fast heat-up or cool-down, pre-existing defects, moisture-related processing issues, sharp internal corners, or incompatible chemicals.
Corrective actions: use slower transitions, inspect parts before annealing, improve upstream drying and molding/printing conditions, and redesign stress-concentrating features.
The strongest PEI annealing programs do not begin with an oven setting. They begin with a question: What dimensional risk are we trying to control?
For a PEI sheet that will be CNC machined into a semiconductor fixture, the priority may be flatness after material removal. For a molded electrical connector housing, the priority may be fit after elevated-temperature aging. For a 3D-printed aerospace prototype, the priority may be maintaining hole position and sealing-surface geometry after thermal exposure.
At PRES, our recommendation for OEM buyers is to validate the complete material-to-part workflow:
1. Select the correct PEI grade and form: pellet, sheet, rod, tube, powder, or 3D-printing filament.
2. Control drying, fabrication conditions, and lot traceability.
3. Anneal representative first articles with documented temperature data.
4. Measure critical dimensions before, after, and following room-temperature conditioning.
5. Confirm fit, function, and thermal performance.
6. Lock the validated recipe into your production control plan.
This approach provides more value than treating annealing as a final rescue step. It turns a variable post-process into a repeatable quality-control method.
Dongguan PRES Group Co., Ltd. supports global brands, wholesalers, processors, and manufacturers with high-performance plastic materials and OEM-focused service. Whether you need PEI pellets for molding, precision PEI sheet for machining, PEI rods and tubes, PEI powder, or high-performance PEI 3D-printing filament, our team can help you match the material format to your production requirements.
If you are developing a PEI component that requires better dimensional stability, contact PRES with your drawing, target tolerance, material requirement, processing method, annual volume, and end-use condition. We can help you evaluate the most suitable PEI material solution and build a practical path from material selection to stable finished parts.
The correct temperature depends on the exact PEI grade, reinforcement, geometry, and supplier recommendation. Published stock-shape guidance lists approximately 199°C for unfilled PEI and 204°C for certain glass-filled PEI grades, but you should validate a grade-specific cycle using your own parts and quality requirements.
No. PEI is an amorphous thermoplastic. Annealing PEI is generally used to relieve residual stress and improve dimensional stability, rather than to create the crystallinity increase associated with annealing semi-crystalline polymers such as PEEK.
Time depends mainly on maximum section thickness and thermal equilibrium. A published guideline for PEI stock shapes uses 30 minutes per 1/4 inch of thickness after the material has reached the target temperature. Treat this as a starting point for validation, not as a universal production rule.
It is not recommended for precision or production parts. Household ovens may have poor temperature uniformity, inadequate calibration, contamination risks, and limited process documentation. Use a dedicated, calibrated, programmable industrial oven for consistent results.
It can. PEI parts may undergo dimensional changes as residual stresses relax. The amount and direction of movement depend on grade, geometry, thickness, processing history, print orientation, and fixture design. Measure trial parts before and after annealing, then use the data to validate tolerances or establish CAD compensation where appropriate.
It depends on the component and tolerance strategy. Many manufacturers anneal PEI stock before final machining to reduce the chance that hidden stress causes movement after material removal. For extremely tight-tolerance components, a rough-machine, anneal, finish-machine sequence may be appropriate after validation.
No. Annealing is most valuable when parts have tight tolerances, thick or uneven geometry, high-temperature service demands, extensive machining, high stress-cracking risk, or demanding 3D-printing requirements. Simple, non-critical parts may not need it if their fabrication process already produces stable dimensions.

1. [SABIC — ULTEM™ Resin Family of High-Heat Solutions] — Background on PEI/ULTEM material characteristics, elevated-temperature performance, and dimensional stability. [sabic]
2. [SABIC — ULTEM™ Resin] — Comparative information on dimensional stability and application-oriented performance of ULTEM resin. [sabic]
3. [Boedeker Plastics — Plastic Annealing Guidelines] — Published PEI/ULTEM stock-shape annealing parameters, including heat-up, hold, and cool-down guidance. [boedeker]
4. [National Center for Biotechnology Information — The Effect of Annealing on Additive Manufactured ULTEM™ 9085] — Peer-reviewed research on annealing effects and dimensional change in additively manufactured ULTEM 9085. [pmc.ncbi.nlm.nih]
5. [AON3D — ULTEM 3D Printing Guide] — Guidance on PEI 3D-printing conditions and the role of annealing for stress relief and dimensional stability. [aon3d]
6. [UL Prospector — ULTEM™ Resin 1000 Datasheet] — Reported glass-transition temperature information for ULTEM 1000 PEI. [ulprospector]
7. [Unionfab — Guide to Annealing 3D Prints] — Practical annealing concepts including measurement, support methods, controlled cooling, and CAD compensation. [unionfab]
