Core performance characteristics

1. High temperature resistance performance (core advantage)

Glass transition temperature (Tg): approximately 217 ° C, which is the upper temperature limit for maintaining mechanical strength.

Hot deformation temperature (HDT): up to 210 ° C under a load of 1.8 MPa, and can be used continuously for a long time in an environment of 170-180 ° C.

Thermal stability: It can withstand higher temperatures in the short term and has minimal creep at high temperatures, with very stable dimensions.

2. Mechanical strength and rigidity

High rigidity: The bending modulus is about 8960 MPa, and the tensile strength is about 170 MPa, which is close to the texture of metal.

Brittle increase: Due to the presence of 30% fiberglass, its toughness has decreased compared to pure PEI, with a fracture elongation of only about 3%, exhibiting a hard and brittle characteristic.

3. Flame retardancy and safety (intrinsic flame retardancy)

No need to add flame retardants: The material itself has extremely high flame retardancy, with a maximum oxygen index (LOI) of 47-50%.

Certification level: UL94 V-0 level (thinnest up to 0.25mm), with extremely low smoke emission and low toxicity, commonly used in harsh scenarios such as aviation and high-speed rail.

4. Electrical and chemical properties

Insulation: High volume resistivity (about 3 × 10 ¹⁶Ω· cm), high dielectric strength, suitable for high-voltage connectors and coil skeletons.

Chemical resistance: resistant to hydrocarbons, alcohols, weak acids, especially hot water and steam (suitable for repeated steam disinfection).

5. Dimensional stability

Low shrinkage rate: Injection molding shrinkage rate is only 0.2% -0.4%, with extremely high dimensional accuracy.

Low moisture absorption: The 24-hour water absorption rate is about 0.16%, and the saturated water absorption rate is about 0.9%. It is not easily deformed in humid environments.

| PEI 2300 aplication

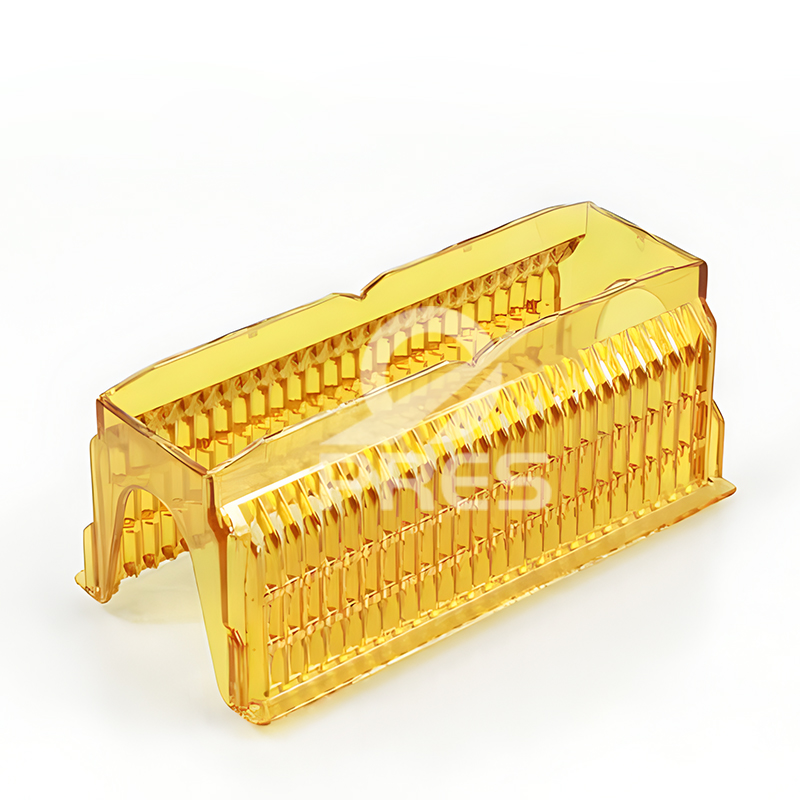

Electronic and Semiconductor (Core Applications)

• SMT reflow soldering fixture/carrier board

-No deformation during wave soldering/reflow soldering process (>240 ℃)

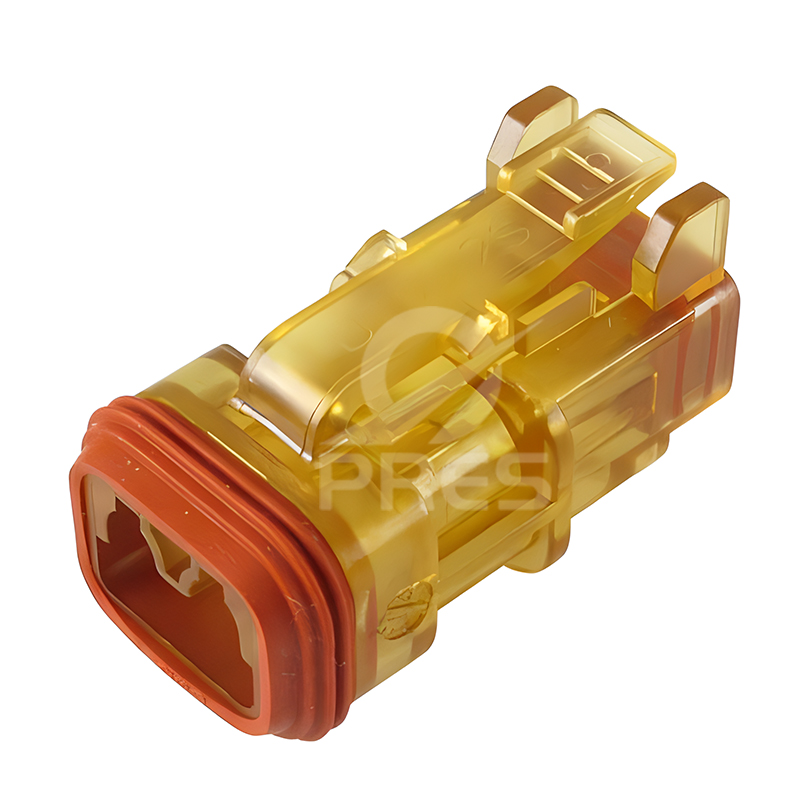

• High temperature connector/coil frame

-Insulation requirements in high temperature environments.

Aerospace and Transportation

By utilizing its low smoke toxicity and high specific strength, it can replace metals to reduce weight.

• Aircraft interior bracket: seat armrest structural components, ventilation system blades (meeting FAA flame retardant standards).

• Heat resistant fasteners: screws, nuts, washers (machined parts) that maintain pre tightening force at high temperatures.

• Sensor housing: High temperature resistant components around the engine.

  ---

4、 Industrial Machinery and Automotive

• Pump valve impeller/gear: corrosion-resistant and hot water resistant, used in chemical processes or hot water circulation pumps.

• Automotive engine sensor bracket: resistant to high temperature aging in the engine compartment.

| PEI Classification

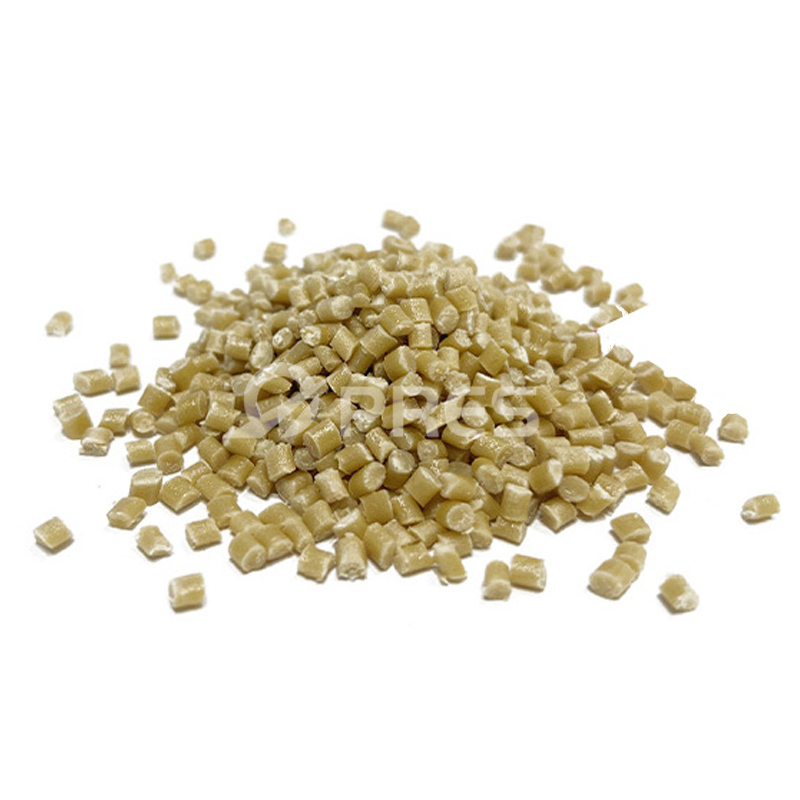

10-30%Glass fiber reinforced PEI

After adding  glass fiber, the mechanical properties are further improved, making it suitable for high load applications

Read more

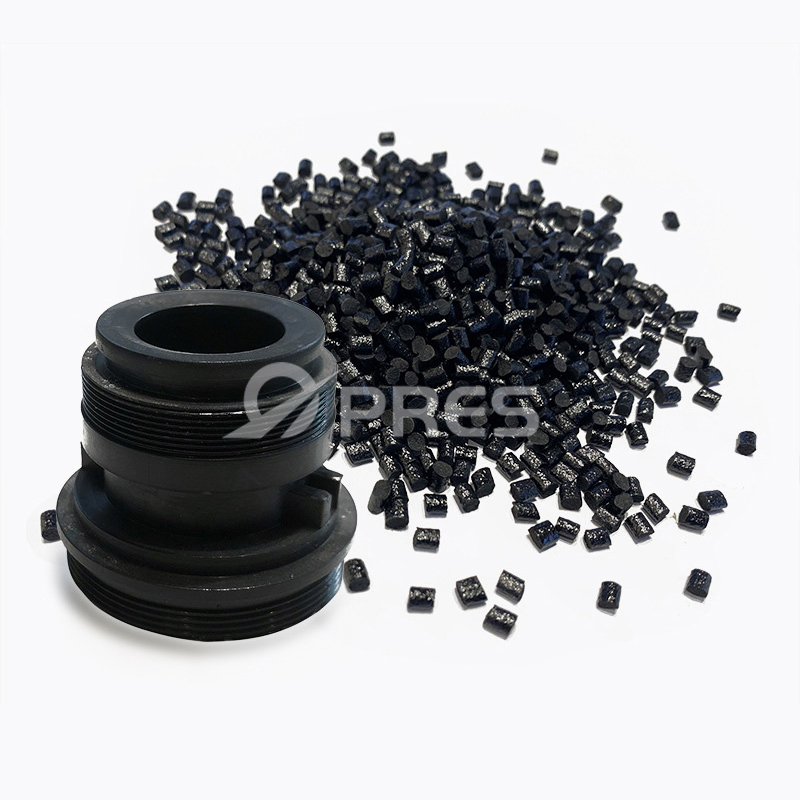

Carbon fiber reinforced PEI

Higher tensile, bending, and impact resistance, suitable for manufacturing components with high requirements for strength and stability

Read more

PEI color customization

Using high-temperature color powder for color matching can maintain color stability even at high temperatures

Multiple colors to choose

Read more
