At Dongguan PRES Group Co., Ltd., we specialize in delivering high-performance polyetherimide (PEI) sheets engineered specifically for precision laser cutting applications. Our PEI materials enable manufacturers to achieve clean, burr-free edges while maintaining dimensional stability even under intense thermal processing conditions. [a-laser]
Polyetherimide (PEI), commercially known as Ultem®, represents one of the most laser-cuttable high-performance thermoplastics available today. This amorphous polymer combines exceptional thermal stability with low thermal conductivity, making it uniquely suited for laser machining processes that demand precision without thermal deformation.

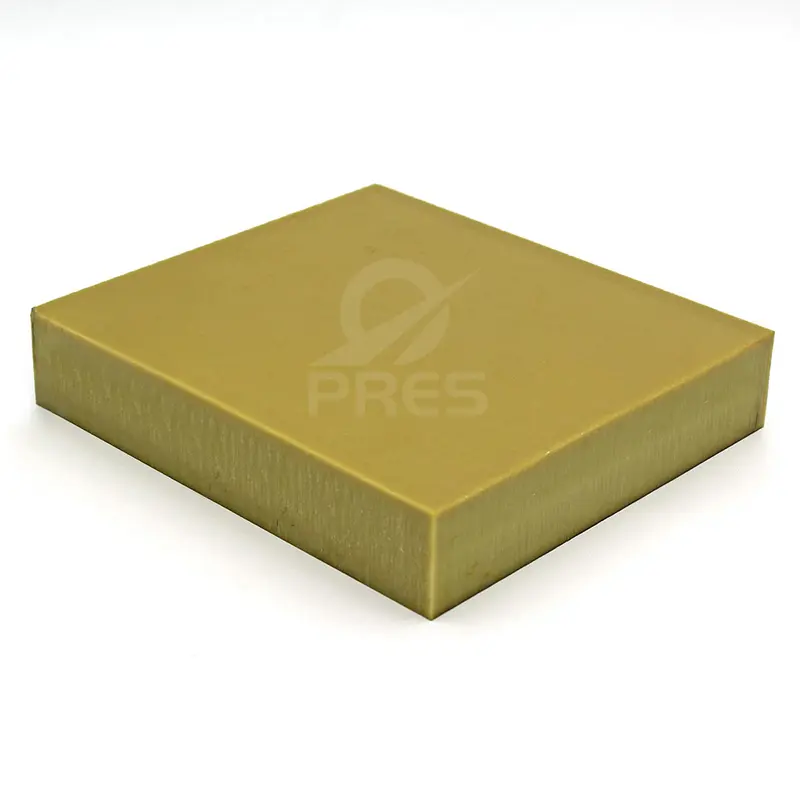

PEI sheets from PRES Group exhibit several critical characteristics that make them ideal for laser cutting:
- High glass transition temperature (Tg ≈ 217°C) allows the material to maintain structural integrity during laser exposure
- Low thermal conductivity prevents heat from spreading beyond the cut zone, minimizing the heat-affected zone (HAZ)
- Excellent dimensional stability ensures parts retain tight tolerances even after cutting
- Inherent flame resistance (UL94 V-0 rated) eliminates the need for additional flame retardants that could compromise cut quality
Our customers consistently report that PRES Group PEI sheets produce cleaner edges with less post-processing compared to competitive materials. This translates directly into reduced production costs and faster time-to-market for precision components.
Thermal deformation remains the primary challenge when laser cutting thermoplastic sheets. When a laser beam interacts with polymer material, it generates intense localized heat that can cause melting, warping, or edge discoloration if not properly controlled.
The heat-affected zone (HAZ) forms when thermal energy from the laser extends beyond the intended cut path. In PEI sheets, this manifests as:
- Edge melting and re-solidification, creating rough or uneven surfaces
- Thermal stress accumulation, leading to warping or dimensional changes
- Discoloration or charring, particularly problematic for aesthetic or medical applications
- Micro-cracking in severe cases, compromising mechanical integrity
Industry research shows that optimizing laser parameters can reduce HAZ width by up to 60% in amorphous thermoplastics like PEI. This improvement directly correlates with edge quality and part accuracy.
Achieving clean edges without thermal deformation requires precise control of laser parameters tailored to PEI's unique material characteristics. At PRES Group, we've developed parameter guidelines based on extensive testing with our PEI sheet inventory.
| Sheet Thickness | Laser Power | Cutting Speed | Assist Gas | Focus Position |
|---|---|---|---|---|
| 0.5-1.0 mm | 15-25W | 200-350 mm/min | Nitrogen (99.9%) | Surface |
| 1.0-2.0 mm | 25-40W | 150-250 mm/min | Nitrogen (99.9%) | 0.5mm below surface |
| 2.0-3.0 mm | 40-60W | 100-180 mm/min | Nitrogen (99.9%) | 1.0mm below surface |
| 3.0-5.0 mm | 60-80W | 80-120 mm/min | Nitrogen (99.9%) | 1.5mm below surface |
Key insight: Using ultra-short pulsed UV lasers (355nm wavelength) or femtosecond systems produces the highest edge quality with minimal thermal impact. These systems remove material through ablation rather than melting, virtually eliminating HAZ.
High-purity nitrogen (99.9% or better) serves as the optimal assist gas for PEI laser cutting. Nitrogen performs three critical functions:
1. Oxidation prevention - Shields molten material from oxygen, reducing edge discoloration
2. Debris removal - Blows away vaporized material from the cut zone
3. Cooling effect - Provides localized cooling to minimize thermal spread
Avoid using oxygen or compressed air as assist gases, as they promote oxidation and increase edge charring in PEI materials.
Beyond basic parameter optimization, several advanced techniques can further minimize thermal deformation in laser-cut PEI sheets. These methods have proven effective in our work with OEM customers across aerospace, medical, and electronics industries.
For thicker PEI sheets (>3mm), implementing a multi-pass cutting approach significantly reduces thermal accumulation. Rather than attempting a full-depth cut in a single pass, divide the cut into 2-3 progressive passes:
- First pass: Cut 40-50% of material thickness at higher speed
- Second pass: Cut 70-80% depth at moderate speed
- Final pass: Complete the cut at optimal parameters
This technique reduces peak temperature in the cut zone by 30-40%, dramatically improving edge quality.
The order in which you cut multiple parts from a single PEI sheet affects thermal deformation. Implement these cutting sequence strategies:
- Alternate cut zones - Skip adjacent parts and return to them after cooling
- Use leapfrog patterns - Cut non-adjacent features first to allow heat dissipation
- Start from center outward - Begin cutting from the sheet center and work toward edges to minimize warping
Real-world application: On large thin PEI panels (<1mm), cutting non-adjacent parts first allows the material to cool before processing remaining sections, reducing overall warpage by up to 50%.
Annealing PEI sheets before laser cutting can enhance dimensional stability and reduce thermal stress during processing. While PRES Group PEI sheets arrive stress-relieved, additional annealing may benefit critical applications:
- Heat to 180-200°C for 2-4 hours
- Cool slowly (≤30°C/hour) to room temperature
- Allow 24-hour stabilization before cutting
This process relieves residual stresses that could amplify during laser cutting, resulting in flatter, more dimensionally stable parts. [plastic-material]
PRES Group PEI sheets have enabled breakthrough applications across multiple high-performance industries. Here are real-world examples demonstrating clean-edge laser cutting without thermal deformation:
A leading medical device manufacturer replaced machined PEEK components with laser-cut PEI parts from PRES Group, achieving:
- 90% reduction in production time through automated laser cutting
- Tighter tolerances (±0.025mm) compared to CNC machining
- Zero edge charring using optimized UV laser parameters
- Cost savings of 45% per part through material efficiency
An aerospace supplier utilized PRES Group PEI sheets for laser-cut insulator plates in avionics systems:
- Maintained dimensional stability at operating temperatures up to 170°C
- Achieved burr-free edges eliminating secondary deburring operations
- Reduced part weight by 35% compared to aluminum alternatives
- Passed rigorous thermal cycling tests without edge cracking
A semiconductor equipment manufacturer adopted PRES Group PEI sheets for precision wafer handling components:
- Clean edges with no particulate generation critical for cleanroom environments
- Excellent chemical resistance to aggressive cleaning agents
- Tight tolerances (±0.05mm) maintained across 10,000+ part production runs
- Superior electrical insulation properties at high frequencies
Even with optimal materials, certain mistakes can compromise edge quality and cause thermal deformation in PEI sheets. Based on our experience supporting OEM customers, avoid these common pitfalls:
- Excessive laser power - Causes overheating, edge melting, and increased HAZ
- Insufficient cutting speed - Allows heat to accumulate, leading to thermal deformation
- Incorrect focus position - Results in wider kerf and rougher edges
- Using wrong wavelength - CO₂ lasers (10.6μm) produce more HAZ than UV (355nm) or fiber lasers
- Cutting contaminated sheets - Dust, oils, or moisture on sheet surface cause inconsistent cutting
- Improper fixturing - Inadequate clamping allows sheet movement, creating uneven edges
- Ignoring sheet orientation - Anisotropic properties may affect cut quality in different directions
- Reusing support slats - Debris from previous cuts can mar PEI sheet underside
- Skipping edge inspection - Minor defects can propagate during assembly or use
- Aggressive cleaning methods - Abrasive cleaning damages laser-cut edges
- Inadequate storage - Humidity absorption affects dimensional stability before assembly [plastic-material]
Implementing rigorous quality control ensures laser-cut PEI parts meet demanding application requirements. PRES Group recommends the following inspection protocols:
- Edge smoothness - No visible melting, roughness, or irregularities at 10x magnification
- Color consistency - Uniform edge color without dark spots or charring
- Perpendicularity - Cut edges should be 90°±2° to sheet surface
- Surface finish - No scratches, pits, or debris on cut surfaces
- Tolerance checking - Verify critical dimensions meet specification (typically ±0.05-0.1mm for laser-cut PEI)
- Flatness measurement - Ensure parts remain within warpage tolerances (<0.5mm per 100mm)
- Thickness consistency - Confirm no thermal thinning at edges
- Fit and assembly - Test parts in actual assemblies to verify proper fit
- Thermal cycling - Validate dimensional stability under application temperature ranges
- Mechanical testing - Confirm edge strength meets load requirements [plastic-material]
Dongguan PRES Group Co., Ltd. stands as China's premier OEM supplier of high-performance PEI sheets optimized for laser cutting applications. Our commitment to quality, technical support, and customer success differentiates us from competitors.
- PEI sheets - Thickness from 0.5mm to 50mm, various sizes and colors
- PEI rods and tubes - Precision-extruded for machining applications
- PEI pellets and powders - For custom compounding and 3D printing filaments
- Custom formulations - Glass-filled, carbon-filled, and specialty grades available [plastic-material]
We provide comprehensive support throughout your product development journey:
- Material selection guidance - Expert recommendations for your specific application
- Laser parameter optimization - Tested settings for common laser systems
- Sample programs - Free samples for evaluation and testing
- Custom sizing - Sheets cut to your exact dimensions before shipment
- Just-in-time delivery - Flexible manufacturing to match your production schedule [plastic-material]
PRES Group maintains rigorous quality standards:
- ISO 9001:2015 certified manufacturing facility
- RoHS and REACH compliant materials
- UL94 V-0 flame rating on standard PEI grades
- Full traceability from raw material to finished product [plastic-material]
Ready to experience the PRES Group advantage in laser-cut PEI components? Our team stands ready to support your project from prototype through full-scale production.
1. Contact our technical team - Discuss your application requirements and challenges
2. Request samples - Evaluate PRES Group PEI sheets in your laser cutting equipment
3. Optimize parameters - Work with our engineers to develop ideal cutting settings
4. Scale production - Transition smoothly from prototyping to volume manufacturing
Contact Dongguan PRES Group Co., Ltd. today for OEM PEI sheet supply, machining support, and material recommendations tailored to your high-precision laser cutting projects. [plastic-material]
A: PEI sheets as thin as 0.25mm can be laser cut successfully with minimal thermal deformation when using UV or femtosecond lasers with optimized parameters. For CO₂ lasers, we recommend minimum thickness of 0.5mm to prevent excessive heat buildup.
A: Laser cutting produces smoother, burr-free edges on PEI compared to CNC machining, which often leaves tool marks and requires secondary deburring. Laser cutting also achieves tighter tolerances (±0.025mm vs ±0.05mm) and eliminates mechanical stress from cutting forces.
A: Yes, colored and glass-filled PEI sheets from PRES Group can be laser cut with similar edge quality to natural PEI. However, glass-filled grades may show slight edge roughness due to fiber exposure, and darker colors may absorb more laser energy, requiring parameter adjustments. [plastic-material]
A: Most laser-cut PEI parts require minimal post-processing. Light cleaning with isopropyl alcohol removes any surface residue. For critical applications, gentle tumbling or vapor smoothing can further enhance edge quality. Avoid aggressive mechanical finishing that could damage the laser-cut edge.
A: PRES Group primarily supplies raw PEI sheets, rods, tubes, and other forms for customers to process. However, we can connect you with qualified laser cutting service providers in China and offer technical support to optimize your in-house laser cutting operations. [plastic-material]
