Why PEEK Operates at 260°C with a Glass Transition Temperature of Only 143°C
A persistent question in high-performance polymer selection is this:PEEK (Polyetheretherketone) has a glass transition temperature (Tg) of just 143°C, yet its rated continuous service temperature is 260°C—more than 100°C above Tg. How is this possible?The answer lies not in the amorphous phase, but in PEEK's semi-crystalline architecture: a rigid crystalline skeleton that remains structurally intact up to the melting point of ~343°C, long after the amorphous regions have softened. This article breaks down the Tg–Tm relationship, the role of crystallinity and backbone rigidity, and what it means for engineering design.
1. What Are Tg and Tm in PEEK Material: Two Distinct Thermal Transitions
Glass Transition Temperature (Tg) — 143°C — is the temperature at which the amorphous (non-crystalline) regions of the PEEK polymer gain sufficient thermal energy for segmental chain motion to occur. Free volume expands, and the material transitions from a glassy, brittle state to a rubbery, compliant state. Tg is an intrinsic property of the polymer repeat unit, governed by the mobility of the amorphous chains.
Melting Temperature (Tm) is the temperature at which the crystalline regions lose their ordered lamellar structure, and the PEEK material transitions into a melt. Tm is a first-order phase transition, whereas Tg is a second-order (glass) transition. For a semi-crystalline polymer, Tg and Tm are independent transitions occurring in different phases — and this distinction is the key to PEEK's thermal performance.
2. The Core Mechanism: Amorphous Softening, Crystalline Support
Above 143°C, PEEK’s amorphous regions do indeed become active: free volume increases, segmental mobility rises, and the amorphous phase loses stiffness.But the crystalline regions remain ordered, load-bearing, and dimensionally stable up to ~343°C. These crystalline domains act as a continuous “crystal skeleton” that mechanically locks the polymer chains in place even while the amorphous matrix around them softens.
The consequence is decisive: as long as the crystalline phase remains intact, the bulk part retains dimensional stability, creep resistance, and meaningful mechanical strength. The performance will not significantly decline at Tg because its structural integrity is not entrusted to the amorphous phase—it is carried by the crystals.
3. Crystallinity: The Decisive Variable
Typical PEEK crystallinity ranges from 20% to 45%, The crystallinity of our annealed PEEK profile standard stock products is usually around 40%.. The higher the crystallinity, the larger and more interconnected the crystal skeleton, and the better the retention of properties above Tg. Three factors control it:
Cooling rate: Slow cooling from the melt allows chains to fold into ordered lamellae, raising crystallinity; rapid quenching suppresses crystallization, lowering it.
Annealing: Post-processing heat treatment (e.g., 150°C for 2–4 hours, slow-cooled) promotes further crystallization and relaxes residual stress, pushing crystallinity toward the upper end and improving dimensional stability.
Reinforcement: Fillers such as glass or carbon fiber can act as nucleation sites, subtly increasing crystallinity, while also contributing their own stiffness independently of the crystal phase.
This is why processing history matters: two PEEK parts with identical chemistry but different thermal histories can exhibit noticeably different high-temperature performance.
4. Backbone Rigidity: The Molecular Reinforcement
Even above Tg, molecular motion in PEEK is restrained by its covalent backbone architecture. The chain is built from benzene rings (aryl groups) and ketone groups (C=O)in the repeating sequence –[–C₆H₄–O–C₆H₄–O–C₆H₄–C(=O)–]– (ether-to-ketone ratio 2:1). These rigid aromatic and polar units resist twisting and folding, maintaining mechanical stability well above 200°C and further suppressing the loss of modulus that would otherwise follow the Tg transition.
In short: Tg marks the softening of the amorphous regions, but backbone rigidity and crystalline zones together supply the strength and high-temperature capability.
5. Comparative Perspective: Tg and Tm Across High-Performance Polymers
| Polymer | Tg (°C) | Tm (°C) | Crystalline Nature |
|---|---|---|---|
| PEEK | ~143 | ~343 | Semi-crystalline |
| PPS | ~90 | ~285 | Semi-crystalline |
| PEI (Ultem) | ~217 | — (amorphous) | Amorphous |
| PPSU | ~220 | — (amorphous) | Amorphous |
| PI (Polyimide) | ~360 | — (amorphous, very high Tg) | Amorphous |
The contrast is instructive. Amorphous polymers such as PEI, PPSU, and PI have no crystalline skeleton; once their Tg is exceeded, modulus decays rapidly, and their usable temperature ceiling is tied closely to Tg. PEEK and PPS, being semi-crystalline, retain a rigid crystalline scaffold above Tg, decoupling usable temperature from Tg and tying it instead toward Tm. This is the structural origin of PEEK’s 260°C continuous-service rating.
6. From Theory to Practice: The Service-Temperature Criterion
A polymer’s continuous service temperature is therefore not “Tg + margin.” For semi-crystalline polymers it is governed by the temperature at which the crystalline scaffold + backbone rigidity can still bear load—typically benchmarked against a retained-property criterion (commonly ~50% of room-temperature strength, per standards such as UL 746B / ISO 2578 long-term thermal aging). PEEK’s 260°C rating reflects this engineering definition, not a simplistic comparison to Tg.
It also defines the processing window: PEEK must be heated above Tm (~343°C, typically 370–420°C for molding/extrusion) to melt the crystals, yet below thermal degradation; conversely, annealing is deliberately kept below Tm to grow crystals without remelting them.
7. Engineering Implications & Selection Guidance
For loads above 143°C: Choose semi-crystalline PEEK or PPS over amorphous alternatives when long-term stiffness retention is required.
For maximum thermal headroom: PEEK’s Tm of 343°C and 260°C service rating exceed those of PPS (~285°C / ~220°C service), making PEEK preferable for the most demanding hot-load applications.

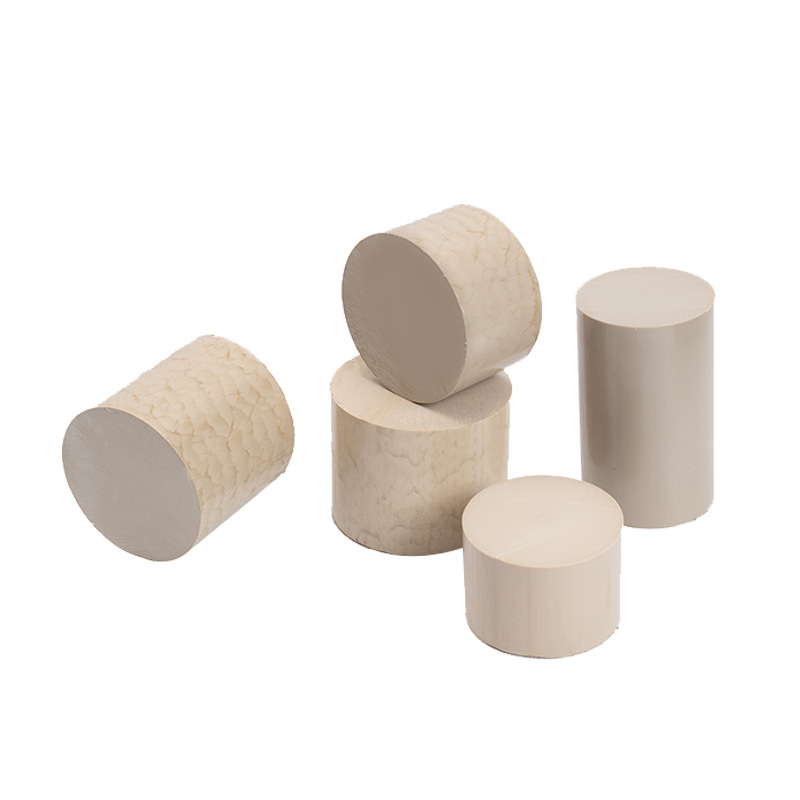

For creep-critical parts: Specify annealed, higher-crystallinity stock (e.g., precision-annealed PEEK sheets and rods) to maximize the crystal skeleton.
For very short excursions: Even above 260°C, PEEK retains significant short-term capability (short-term peaks to ~300–310°C), bounded ultimately by Tm.
Conclusion
PEEK’s apparently paradoxical 260°C service rating is no contradiction.Tg = 143°C describes only the amorphous phase; the crystalline phase remains stable to ~343°C, forming a rigid skeleton reinforced by an intrinsically stiff aromatic-ketone backbone.Understanding the Tg–Tm distinction—and the engineering definition of service temperature—is essential for selecting PEEK with confidence in high-temperature, load-bearing applications.
