In the high-stakes semiconductor manufacturing environment, where microscopic particles or an unintended electrostatic discharge (ESD) can destroy multi-thousand-dollar wafers, material selection is not merely a procurement task—it is a critical engineering strategy. As an integrated partner in advanced polymer solutions, PRES understands that achieving consistent, high-volume yields requires materials that perform reliably under extreme thermal, chemical, and electrical stress.
This article provides an expert-level analysis of ESD PEI (Electrostatic Dissipative Polyetherimide) granules, exploring why they are the preferred choice for next-generation semiconductor equipment, wafer handling, and critical structural components.
Polyetherimide (PEI), frequently recognized by its commercial grade Ultem™, is a high-performance amorphous thermoplastic. While standard PEI is revered for its excellent strength-to-weight ratio, high impact resistance, and inherent flame retardancy, ESD PEI granules are specifically engineered for the high-precision electronics industry.
By integrating conductive fillers—such as carbon nanotubes (CNTs) or conductive carbon fibers—into the PEI resin matrix, manufacturers create a material that is not merely insulative, but electrostatically dissipative. This controlled resistivity allows for the safe decay of electrical charges, preventing the sudden, catastrophic discharge that destroys sensitive semiconductor components.
| Property | Standard PEI | ESD PEI |
|---|---|---|
| Surface Resistivity | Highly Insulative | 10⁶ – 10⁹ Ω/sq (Dissipative) |
| Static Risk | Charge Buildup | Controlled, Safe Decay |
| Application Focus | General Structural | Semiconductor/Cleanroom |
A frequent technical inquiry involves the difference between filler types in ESD PEI. While both achieve the target resistivity range, they offer distinct mechanical and electrical advantages.
* Carbon Nanotubes (CNTs): These nanomaterials provide exceptional electrical performance with lower filler loading levels compared to conventional fibers. This means the mechanical integrity and surface finish of the base PEI are better preserved, leading to cleaner, more durable parts [google].
* Carbon Fibers: Traditional carbon fibers are preferred when higher structural rigidity and modulus are required alongside ESD properties. They excel in larger, load-bearing components where maintaining dimensional stability under stress is paramount.
In semiconductor fabs, materials must survive aggressive chemical cleaning, high-energy plasma environments, and continuous thermal cycling. ESD PEI is essential here due to its unique combination of properties:
* Superior Dimensional Stability: ESD PEI exhibits minimal creep and a low coefficient of thermal expansion (CTE), ensuring that precision components like wafer carriers and test sockets maintain tight tolerances during high-temperature processing.
* Chemical Inertness: Unlike many metals or lesser polymers, ESD PEI resists degradation from the harsh chemicals used in wet etching and cleaning processes.
* Cleanroom Performance: Modern ESD PEI grades are formulated to minimize outgassing and particle generation, which is paramount in ISO-certified cleanrooms where contamination is the primary enemy of production yields [plastic-material].
From front-end wafer fabrication to back-end packaging, ESD PEI components maintain production integrity:

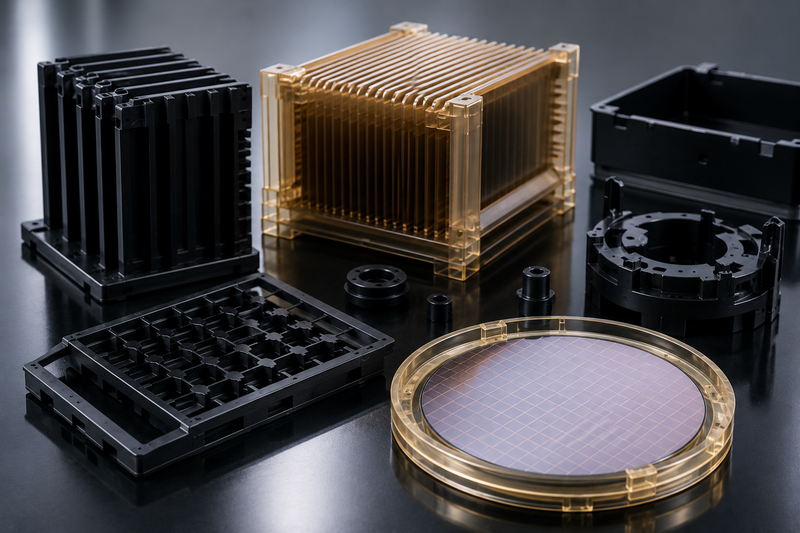

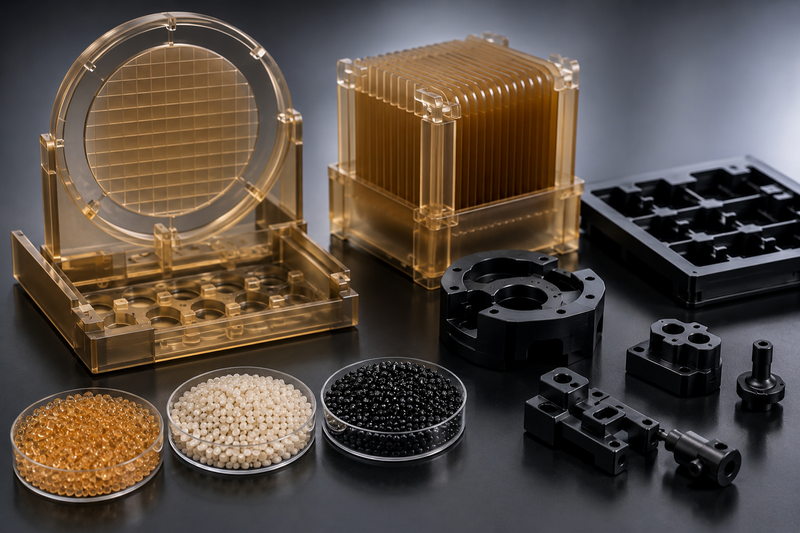

1. Wafer Processing: Used to manufacture wafer carriers, 晶圆舟 (wafer boats), and multi-slot vertical boat cassettes that must withstand both mechanical stress and thermal fluctuations during chemical vapor deposition or oxidation [plastic-material].
2. Automated Material Handling (AMHS): Critical for semi-conductive tray components and robotic end-effectors that transport sensitive wafers through high-speed production lines.
3. Electronic Testing: Used in IC test sockets and PCB inspection fixtures, where preventing discharge into the integrated circuit is the primary objective [plastic-material].
To achieve the micron-level accuracy required for semiconductor components, proper machining protocols are essential. Improper machining can introduce internal stresses that lead to premature part failure or contamination.
* Annealing: For extremely close-tolerance parts with non-symmetrical contours, intermediate annealing between machining operations is recommended to reduce stress and improve flatness [plastic-material].
* Tooling: Use high-speed steel or carbide tooling. Ensure tool sharpness to prevent localized melting, which can alter the conductive filler distribution at the surface and impact ESD performance.
* Particle Control: Always machine in a clean, controlled environment. Advanced suppliers, like PRES, emphasize "zero particle shedding" as a non-negotiable standard for all custom-machined semiconductor parts [plastic-material].
At PRES, we function as an integrated manufacturing partner. We go beyond supplying high-quality PEI granules by providing full-spectrum support:
* Custom Blending: We tailor polymer formulations to match your specific resistivity requirements.
* Precision Manufacturing: Our capabilities include both CNC machining for prototyping and low-volume, high-complexity parts, as well as injection molding for cost-effective, high-volume production.
* Technical Consultation: Our engineers assist in selecting the optimal high-performance polymer—whether PEEK, PPS, PPSU, PSU, or PEI—ensuring your specific environment is perfectly matched with the right material.
Ready to optimize your semiconductor production yield? Contact the team at PRES today to review your current material specifications and discover how high-performance ESD PEI can enhance your equipment reliability.

1. [PRES: Professional Engineering Plastics & Manufacturing]
2. [Ensinger Plastics: Semiconductor and Electronics Manufacturing Solutions]
3. [ScienceDirect: Review of CNT-Reinforced Polymer Composites in Semiconductor Applications]
4. [Port Plastics: Semitron® ESd 410C PEI Technical Specifications]
5. [Mitsubishi Chemical Group: Machinist's Toolkit for High-Performance Plastics]
1. Q: Why choose ESD PEI over ESD PEEK for certain applications?
A: PEEK offers slightly higher temperature resistance, but PEI is often a more cost-effective choice for semiconductor components, while still providing exceptional dimensional stability and chemical resistance.
2. Q: What is the ideal surface resistivity for semiconductor handling?
A: For most wafer handling and test equipment, a dissipative range of 10⁶ to 10⁹ Ω/sq is the industry standard to safely bleed off static charges without creating high-current sparks.
3. Q: Does machining ESD PEI affect its anti-static performance?
A: Proper machining practices (sharp tooling and stress relief/annealing) ensure that conductive filler distribution remains uniform. Improper machining can cause localized surface heating, which may potentially degrade ESD consistency.
4. Q: Is ESD PEI suitable for cleanroom environments?
A: Yes. Modern ESD PEI grades are specifically formulated to exhibit low outgassing and minimal particle generation, meeting stringent ISO-certified cleanroom requirements.
5. Q: Does PRES provide custom fabrication services for ESD PEI?
A: Yes, we provide end-to-end services, from supplying ESD PEI granules to precision CNC machining and high-volume injection molding of final components.
