As semiconductor fabrication processes push toward increasingly advanced nodes, the materials used in wafer handling and transmission must evolve to meet stringent cleanliness, thermal, and electrostatic requirements. Conventional engineering plastics often struggle to balance these conflicting demands, leading to yield losses and manufacturing downtime.
This article, written from the perspective of high-performance polymer specialists, explores how PFLUON® PEEK ESD837—a specialized ESD PEEK material—is revolutionizing wafer cassette design and semiconductor cleanroom operations.

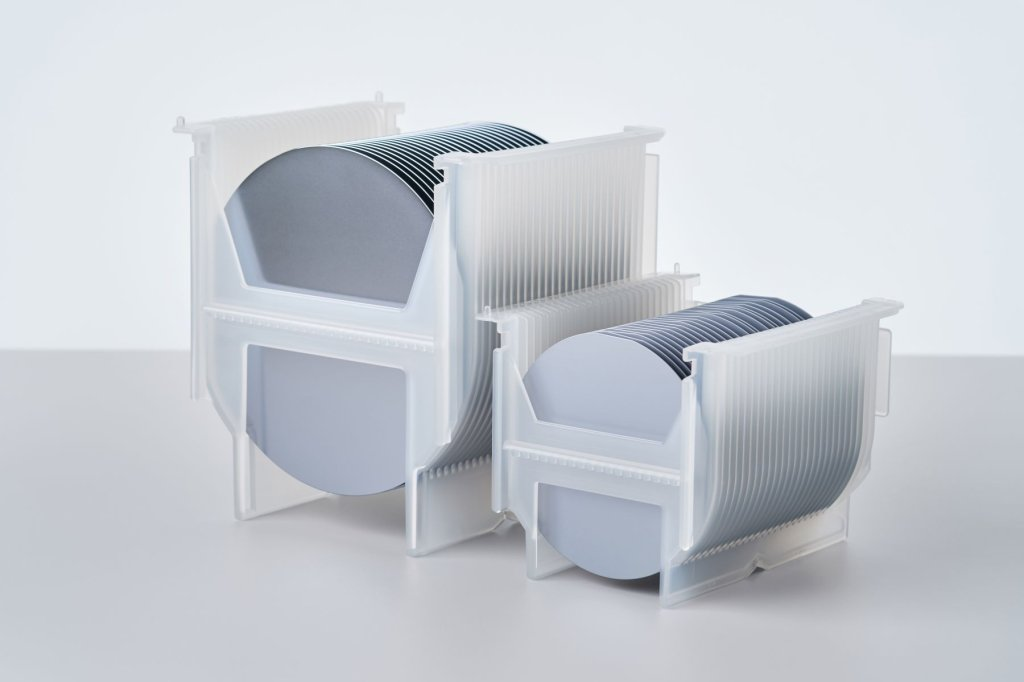

In modern fabrication plants, the wafer cassette serves as the heartbeat of the production line. Its performance directly influences device integrity and overall facility yield.
Engineers and manufacturing specialists consistently prioritize three core material attributes when selecting polymers for critical wafer-carrying components:
In high-temperature insertion steps, the wafer carrier must remain dimensionally rigid. PEEK (polyetheretherketone) is a semi-crystalline thermoplastic with a melting point of 343°C and a continuous operating temperature of up to 260°C.
Through precise carbon fiber reinforcement, PEEK's heat deflection temperature (HDT) at 1.8 MPa can exceed 340°C. This ensures that thin wafers, when subject to rapid thermal cycling, do not induce deformation in the cassette, thereby preventing wafer misalignment and physical damage. Furthermore, the enhanced thermal conductivity of carbon-filled grades facilitates rapid heat dissipation at contact points, shortening the high-temperature exposure window for sensitive semiconductor components.
To maximize manufacturing throughput, cassettes must hold the maximum number of wafers with consistent, narrow slot tolerances.
PEEK's high elastic modulus, combined with its structural state below its glass transition temperature (143°C), results in exceptional anti-creep performance and a remarkably low coefficient of linear thermal expansion (CLTE)—typically in the 5–8 ppm/K range for carbon-filled grades. This stability ensures that slot pitch remains constant, even under the stress of repeated thermal cycles in the fabrication environment.
In nanometer-scale fabrication, even microscopic contamination can cause fatal device defects. ESD PEEK materials are chemically inert, demonstrating minimal outgassing and extremely low extractable content. This intrinsic cleanliness is paramount for maintaining the stringent standards of ISO Class cleanrooms, directly contributing to higher overall fab yield and reduced equipment maintenance cycles.
While mechanical properties are foundational, controlling Electrostatic Discharge (ESD) is the most persistent challenge in semiconductor environments. Traditional dissipative coatings often wear off or cause contamination.
PFLUON® PEEK ESD837 shifts the paradigm by integrating ESD performance directly into the material's molecular formulation. This ensures:
* Permanent ESD Protection: Unlike surface treatments, the ESD properties are intrinsic to the polymer matrix, meaning they cannot be worn away or wiped off during cleaning.
* Contamination-Free Performance: The uniform distribution of conductive fillers minimizes particle generation, addressing the critical "low-outgassing" requirement for advanced process nodes.
* Reliability: By mitigating electrostatic buildup at the point of contact, the material prevents the electrostatic attraction of dust and protects sensitive integrated circuits from ESD-related breakdown.
As an integrated manufacturing partner, we advise engineers to consider more than just the datasheet. When selecting ESD PEEK for your next project, evaluate:
1. Uniformity of Conductivity: Ensure the material provider utilizes advanced compounding techniques to prevent "hot spots" or localized resistance variances, which can lead to unpredictable ESD behavior.
2. Machinability vs. Injection Molding: While CNC machining is excellent for prototyping or small-batch, ultra-high-precision parts, injection molding (using grades like ESD837) offers the best balance of structural integrity and cost-efficiency for mass-produced cassettes.
3. Cleanroom Compliance: Request third-party validation for outgassing and ion-extractable levels to ensure compatibility with your specific process node.
The shift toward advanced node semiconductor manufacturing leaves no room for material compromise. PFLUON® PEEK ESD837 provides a robust solution by harmonizing high-temperature structural integrity, dimensional precision, and permanent, contamination-free electrostatic control.
Are you ready to optimize your wafer handling systems? Our team of materials specialists and manufacturing engineers is here to help. From initial material selection to high-precision CNC machining and custom injection molding, we offer a comprehensive partnership to elevate your fab's yield.
[Contact PRES Engineering Today for a Technical Consultation]
* [PFLUON PEEK Wafer Box Material Analysis (Chinese)] [pfluon]
* [Understanding ESD PEEK in Semiconductor Manufacturing (TrianglePlas)] [patsnap]
* [The Role of ESD-Safe Plastics in Wafer Carriers (Piedmont Plastics)] [verifiedmarketreports]
* [Victrex PEEK Semiconductor Grade Materials] [honyplastic]
* [Google E-E-A-T Guidelines and B2B Content Strategy] [tripledart]
1. Q: Why is carbon fiber-reinforced PEEK preferred over standard ESD plastics?
A: Standard ESD plastics (like dissipative ABS or PC) cannot handle the extreme thermal requirements of 340°C processes. Carbon-filled PEEK maintains structural, thermal, and electrical properties simultaneously where other polymers fail.
2. Q: Does the ESD property in PEEK ESD837 degrade over time?
A: No. Because the dissipative agents are compounded directly into the polymer matrix during the manufacturing process, the ESD functionality is permanent and consistent throughout the material's lifespan, unlike surface-applied coatings.
3. Q: How does PEEK reduce contamination compared to traditional materials?
A: PEEK is chemically inert, possesses low outgassing characteristics, and generates fewer particles during mechanical wear or thermal expansion, which is essential for protecting delicate wafers in cleanroom environments.
4. Q: Is PEEK ESD837 suitable for high-precision CNC machining?
A: Yes. PEEK's exceptional dimensional stability and stiffness make it an ideal material for CNC machining, allowing manufacturers to achieve the extremely tight slot-pitch tolerances required for modern wafer carriers.
5. Q: What should I look for when selecting an ESD PEEK supplier?
A: Prioritize suppliers who offer complete material characterization (thermal, mechanical, and electrical), provide technical support for both raw material and component manufacturing (CNC or molding), and have experience in semiconductor-grade cleanliness requirements.
