PEEK GF30 Sheet Product Description
 |  | High-temperature resistant |
1.Glass transition temperature: 143°C 2.Heat distortion temperature: 165°C 3.Long-term using temperature: 260°C 4.Short-term using temperature: 300°C 5.Melting point: 343°C |
| Light weight & High mechanical strength |
Carbon fiber significantly improves the tensile strength of PEEK,up to 250MPa,Bending modulus 22 GPa of CF PEEK density only 1.4g/cm3,Suitable for replacing metals |
| Dimensional stability and low thermal expansion |
| Wear-resistant |
|Cutting Service
The standard length is 1000mm,and we can cut into the size as your requirements
|Surface polishing service
Grinding can make the surface smoother and eliminate scratches caused by cutting
|PEEK 990CF30 Mechanical Data SHEET
| Test Item | Test Method | Conditions | Units | Test Data |
| Mechanical Data |
| Tensile Strength | ISO 527 | Yield, 23℃ | MPa | 250 |
| Tensile Elongation | ISO 527 | Break, 23℃ | % | 1.6 |
| Flexural Strength | ISO 178 | Yield,23℃ | MPa | 370 |
| Flexural Modulus | ISO 178 | 23℃ | GPa | 22 |
| Compressive Strength | ISO 604 | 23℃ | MPa | 300 |

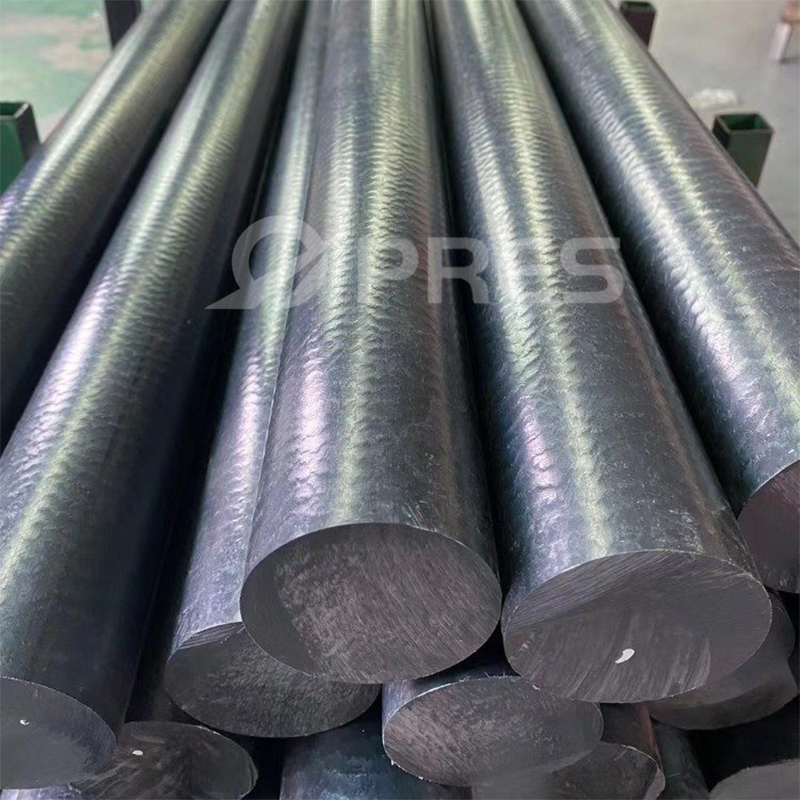

|PEEK 990CF 30 bar Size table
Why are there dimensional errors in PEEK boards?
For the margin of subsequent processing, the actual thickness of the PEEK plate will be thicker than that marked. You can contact us to obtain the actual measured dimensions.
| Standard size PEEK sheet |
Thickness MM | Tolerance MM | Density KG/M⊃3; |
| 6 | +0.2-+0.7 | 1.3 |
| 8 | +0.2-+0.7 | 1.3 |
| 10 | +0.2-+1.2 | 1.3 |
| 12 | +0.3-+1.5 | 1.3 |
| 15 | +0.3-+1.5 | 1.3 |
| 17 | +0.3-+1.5 | 1.3 |
| 20 | +0.3-+1.5 | 1.3 |
| 25 | +0.3-+1.5 | 1.3 |
| 30 | +0.5-+2.5 | 1.3 |
| 35 | +0.5-+2.5 | 1.3 |
| 40 | +0.5-+2.5 | 1.3 |
| 45 | +0.5-+2.5 | 1.3 |
| 50 | +0.5-+2.5 | 1.3 |
| 60 | +0.5-+3.5 | 1.3 |
| 80 | +0.5-+5.0 | 1.3 |
| 100 | +0.5-+5.0 | 1.3 |
| 120 | +0.5-+5.0 | 1.3 |
We can accept US dollars, rubles, and Chinese yuan
We can ship by sea,by air and express.
|
