Unfilled PEEK resin Rod

Name: Unfilled PEEK resin Rod
Brand: PRES
SKU: 138995096
Rating: 5.0 (55 reviews)

The toughness of unfilled PEEK resin is better than PEEK GF30 or PEEK CF30,Pure PEEK has better impact resistance performance.Pure PEEK resin wears tools (carbide/diamond) extremely slowly, has low processing costs, and easily achieves high quality surface.

When many holes or screw threads need to be drilled, PEEK resin rod is a good choice, and the processed products also have good precision

Material:	100% pure polyether ether ketone
Color:	NATURAL
MOQ:	1PCS
Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 990G
Brand:
PRES

Product Description

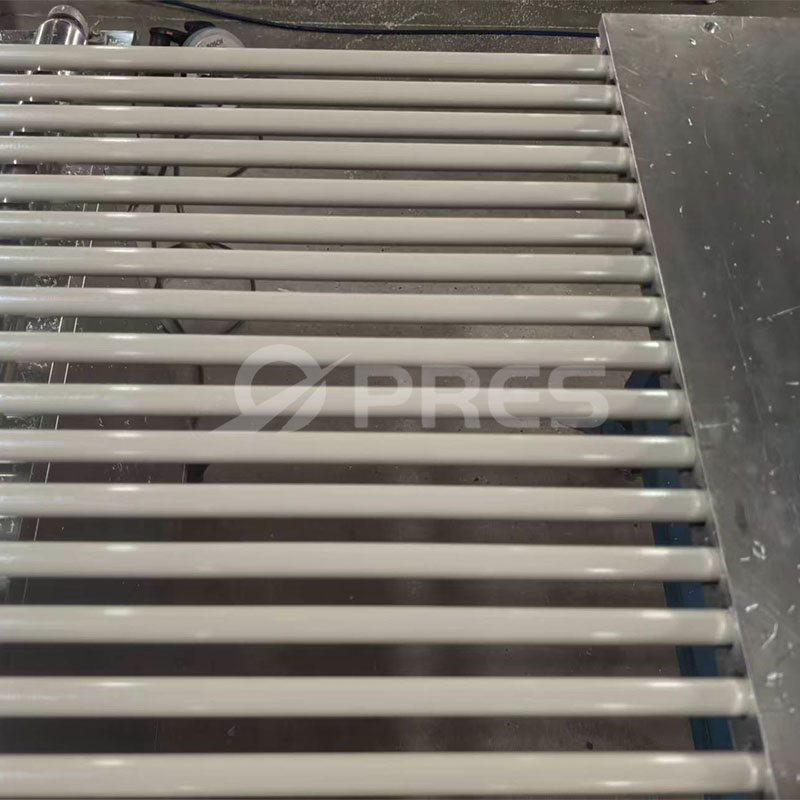

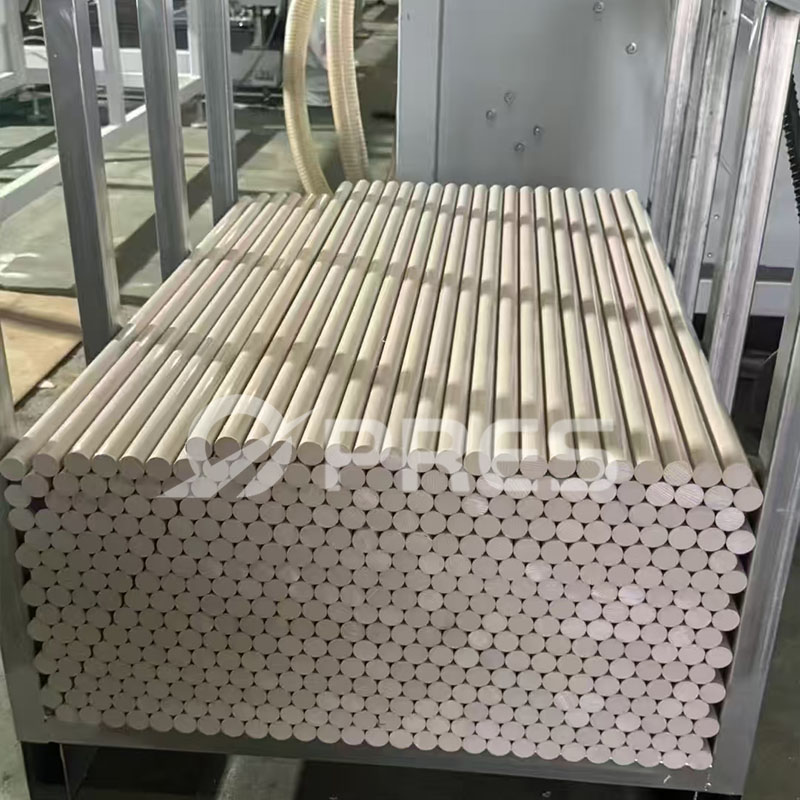

Unfilled PEEK resin Rods Product Description

		High-temperature resistant
	1.Glass transition temperature: 143°C 2.Heat distortion temperature: 328°C 3.Long-term using temperature: 260°C 4.Short-term using temperature: 300°C 5.Melting point: 343°C
		toughness and impact resistance
		Dimensional stability and low thermal expansion
		Chemical stability

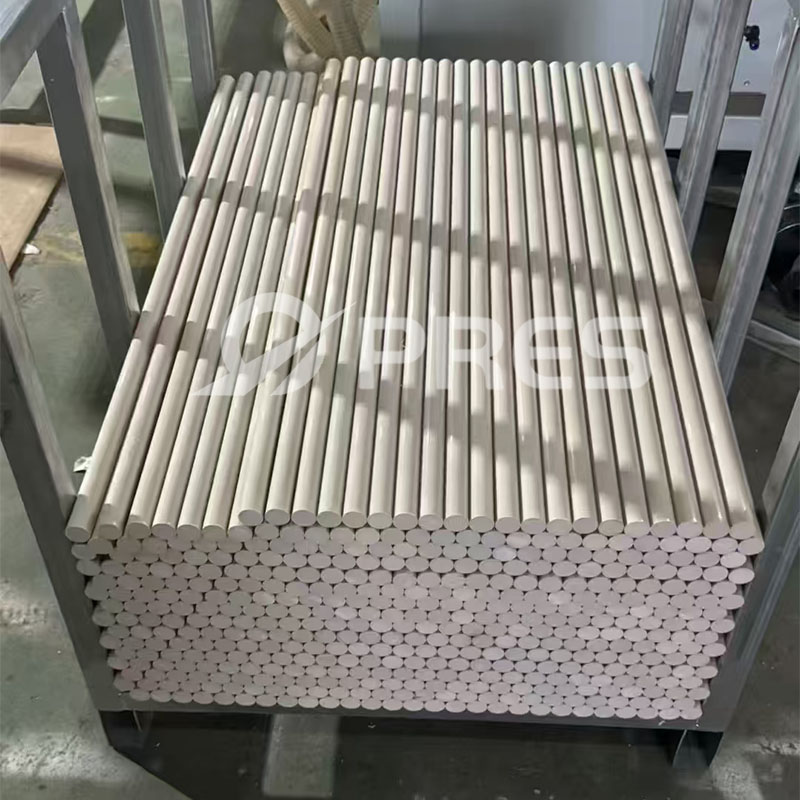

|PEEK 990G Rods Size table

Unfilled PEEK can reach much bigger size than fiber reinforced PEEK,the biggets diameter we can reach is 300 mm,the min diameter that PRES can reach is 2mm.

Diameter MM
6	140
8	160
10	180
12	200
15	220
17	240
20	260
25	280
30	300
35
40
45
50
60
80
100
120

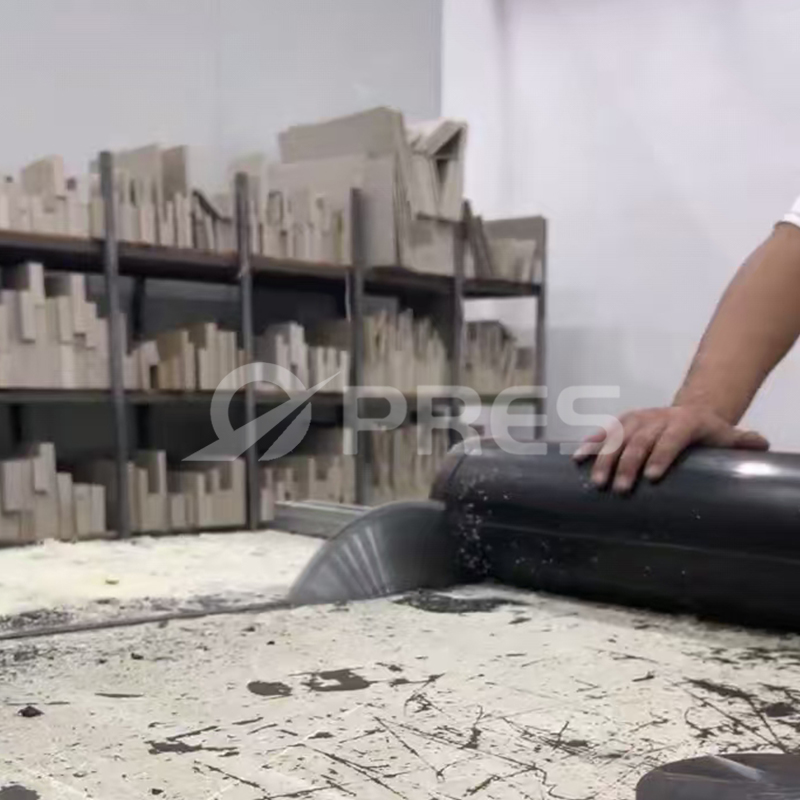

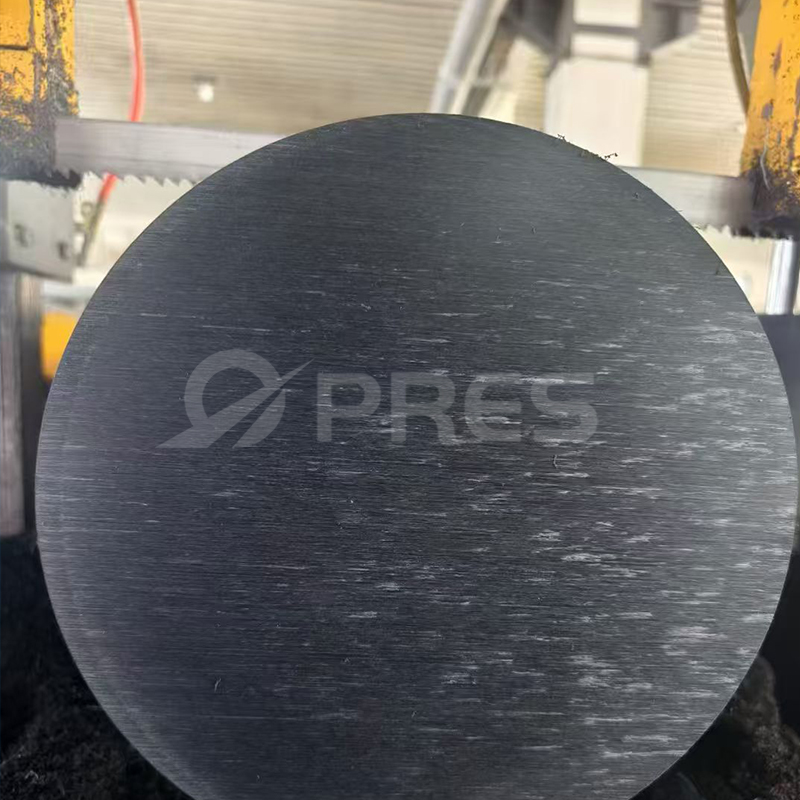

|Cutting Service

The standard length is 1000mm,and we can cut into the size as your requirements

PEEK rods cutting service-PRES

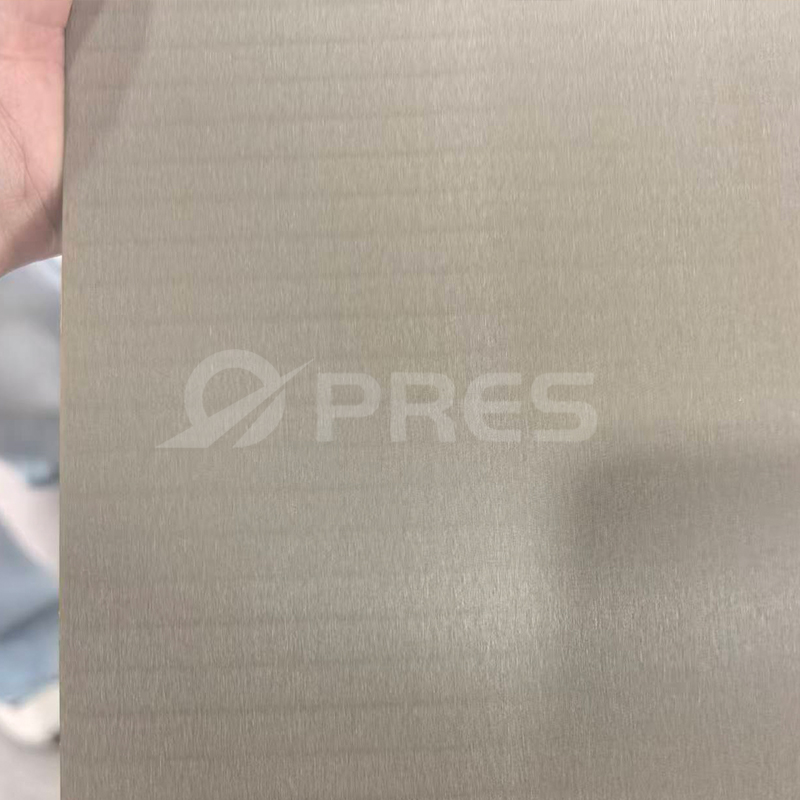

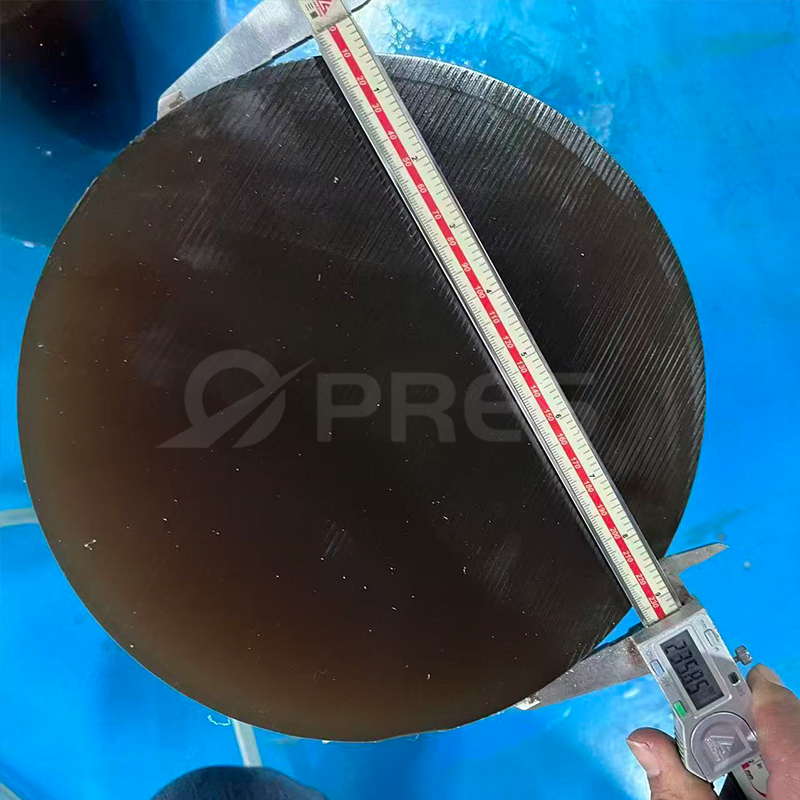

|Surface polishing service

Grinding can make the surface smoother and eliminate scratches caused by cutting

Shipping & Payment

We can accept US dollars, rubles, and Chinese yuan

We can ship by sea,by air and express.

UPS

DHL

FEDEX

Certifications

Data Sheet

Test Item	Test Method	Conditions	Units	Test Data
Mechanical Data
Tensile Strength	ISO 527	Yield, 23℃	MPa	100
Tensile Elongation	ISO 527	Break, 23℃	%	45
Flexural Strength	ISO 178	Yield,23℃	MPa	165
Flexural Modulus	ISO 178	23℃	GPa	4.1
Compressive Strength	ISO 604	23℃	MPa	125
Charpy Impact Strength	ISO 179/1eA	Notched	kJ m-2	7
Charpy Impact Strength	ISO 179/1U	Unnotched	kJ m-2	-
Mould Shrinkage	ISO 294-4	Along Flow	%	1
Mould Shrinkage	ISO 294-4	Across Flow	%	1.3
Thermal Data
Melting Point	ISO 11357	-	℃	343
Glass Transition (Tg)	ISO 11357	Onset	℃	143
Special Heat Capacity	DSC	23℃	kJ kg-1 ℃-1	2.2
Coefficient of ThermalExpansion	ISO 11359	Along flow below Tg	ppm K-1	45
Coefficient of ThermalExpansion	ISO 11359	Along flow above Tg	ppm K-1	120
Heat DeflectionTemperature	ISO 75	1.8 Mpa	℃	152
Thermal Conductivity	ISO 22007-4	23℃	W m-1 K-1	0.29
Flow
Melt Index	ISO 1133	380℃,5kg	g 10min-1	10
Miscellaneous
Density	ISO 1183	Crystalline	g cm-3	1.3
Density	ISO 1183	Amorphous	g cm-3	1.26
Shore D Hardness	ISO 868	23℃		85
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	24h, 23℃	%	0.07
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	Equilibrium, 23℃	%	0.4
