High-temperature Resistant And High-rigidity Plastic Rod PEEK GF30

Glass Fiber Reinforced PEEK High Rigidity And High Strength 990GF30

Share to:

PEEK GF30 rods High-Temperature Resistant And High-rigidity

Name: PEEK GF30 rods High-Temperature Resistant And High-rigidity
Brand: PRES
SKU: 102376386
Rating: 5.0 (60 reviews)

PEEK GF30 rods are engineered to excel in applications requiring maximum dimensional stability under load. By incorporating 30% glass fibers, the material achieves a flexural modulus of 11 GPa, providing the stiffness necessary to support significant weight without deformation.

Unlike unreinforced PEEK, which may exhibit creep under sustained pressure, the glass fiber reinforcement locks the polymer structure in place. This results in exceptional high static load capacity, ensuring that components such as support brackets, insulating mounts, and structural frames remain stable even at elevated temperatures (HDT up to 328°C).

Material:	30% glass fiber reinforced PEEK
Color:	NATURE Black Custom
MOQ:	1pcs
Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 990GF30
Brand:
PRES

Product Description

PEEK GF30 Rods – 30% Glass Fiber Reinforced High-Strength

PEEK GF30 Rods are high-performance, 30% glass fiber reinforced semicrystalline thermoplastic plastic rods.They combine PEEK’s outstanding chemical resistance and high-temperature capability with significantly improved stiffness,dimensional stability, and load-bearing capacity—making them ideal for precision CNC machining of structural components.

PEEK GF30 Rods Core Advantages

The most important advantages of PEEK GF30 rods is Maintains exceptional creep resistance and dimensional stability under elevated temperatures and sustained static loads.

️ High Rigidity & Load Capacity

Unreinforced PEEK flexural modulus is 4.1GPa,after Glass fiber reinforced, flexural modulus increases to 11.3 GPa(Test Standard:ISO 178),It is almost 3 times of PEEK resin. And flexural strength Increases from 165 MPa to 265 MPa, It is an ideal material for metal replacement in structural components, enabling lightweighting while maintaining exceptional structural integrity.

️ Dimensional Stability

PEEK GF30 Rods offer exceptional dimensional stability: ultra-low extrusion shrinkage (~1/3 that of neat PEEK) minimizes warpage, while a metal-comparable CTE (~22 ppm/K) ensures tight tolerances under thermal cycling. With near-zero moisture uptake and superior high-temperature creep resistance (<0.8% strain at 250°C), they are ideal for machining precision, load-bearing parts that replace metal—even in humid or extreme heat environments.

⚙️ Precision CNC Machinable

• Excellent CNC Machinability: Eliminates nylon-like tool clogging, high rigidity ensures stable cutting, minimal burrs, and supplier-validated suitability for micro-machining.

• Micron-Level Precision: Near-aluminum CTE (~22 ppm/K, vs. ~47 ppm/K for neat PEEK) minimizes thermal drift; delivers ±0.01–0.02 mm tolerances post-annealing.

Chemical & Hydrolysis Resistance

Performs reliably in hydrocarbons, acids, and high-pressure steam environments up to 250°C.

Learn More: PEEK Chemical & Hydrolysis Resistance

Typical Applications

Aerospace & Defense

Structural brackets
Electrical insulators
High-temperature fasteners

Oil & Gas

Seal rings & bushings
Compressor components
Downhole tool parts

Semiconductor

Process chamber components
Wafer handling fixtures
High-purity fluid parts

Industrial Machinery

Pump & valve bodies
Gears & bearing cages
High-load wear components

PEEK GF30 Rod Diameter Size Table

Note: To reserve machining allowance, the actual diameter is 0.1–0.3mm larger than the nominal size. Contact us for exact measured dimensions.

Standard Diameters (Standard Length: 1000mm, Custom Length Available)
6mm	8mm	10mm	12mm	15mm	17mm	20mm	25mm	30mm	35mm
40mm	50mm	60mm	70mm	80mm	90mm	100mm	120mm	150mm	200mm

PEEK GF30 Rods – Technical Data Sheet

Test Item	Test Method	Condition	Unit	Typical Value
Mechanical Properties
Tensile Strength	ISO 527	23 °C	MPa	170
Flexural Strength	ISO 178	23 °C	MPa	265
Flexural Modulus	ISO 178	23 °C	GPa	11.3
Compressive Strength	ISO 604	23 °C	MPa	210
Thermal Properties
Melting Point	ISO 11357	—	°C	343
Glass Transition Temp (Tg)	ISO 11357	Onset	°C	143
Continuous Service Temp	—	—	°C	250
Coefficient of Thermal Expansion (CTE)	ISO 11359	Along Flow	ppm/K	22
Physical Properties
Density	ISO 1183	23 °C	g/cm³	1.49
Water Absorption (24 h)	ISO 62	23 °C	%	0.06

CNC Machining Guidelines for PEEK GF30 Rods

Due to the addition of glass fibers, PEEK GF30 is more abrasive than unfilled PEEK. Follow these guidelines for optimal results:

Tooling: Use sharp tungsten carbide or polycrystalline diamond (PCD) tools to resist abrasion.
Coolant: Recommended (water-soluble coolant). It reduces heat, extends tool life, and flushes away glass dust.
Cutting Speed: Medium to high cutting speeds are recommended to achieve clean chip formation.
Dust Management: Glass fiber dust is abrasive. Use proper extraction systems to protect equipment and operators.
Tolerances: Allow for slight spring-back; account for the CTE (22 ppm/K) in high-precision assemblies.

PEEK Material Selection Guide

Property	PEEK (Unfilled)	PEEK GF30	PEEK CF30
Primary Feature	Best Chemical Resistance	High Stiffness	Wear Resistance
Flexural Modulus	~4.1 GPa	~11.3 GPa	~22 GPa
Wear Resistance	Good	Moderate	Excellent
CTE (Thermal Expansion)	~47 ppm/K	~22 ppm/K	~18 ppm/K
Typical Application	Valve seats, seals	Structural parts, brackets	Bushings, bearings, gears

FAQs – PEEK GF30 Rods

Q1: What are the main benefits of PEEK GF30 rods compared to unfilled PEEK?

PEEK GF30 rods offer significantly higher stiffness (11.3 GPa flexural modulus), better dimensional stability, and reduced thermal expansion—ideal for high-precision, high-load applications where rigidity is critical.

Q2: Is PEEK GF30 rods suitable for high-temperature steam environments?

Yes. PEEK GF30 rods performs reliably at 250°C continuous service and resists hydrolysis, making it suitable for steam valves, pump components, and sterilizable parts in demanding industrial settings.

Q3: Can PEEK GF30 rods be CNC machined to tight tolerances?

Absolutely. Its low thermal expansion and predictable machining behavior enable tight-tolerance components with excellent repeatability, provided appropriate tooling and cooling are used.

Q4: Does the glass fiber reinforcement affect wear performance?

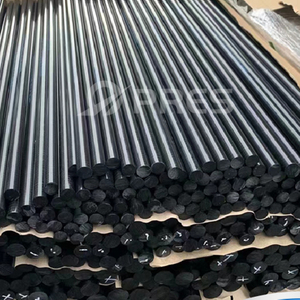

Glass fibers improve load-bearing capability but can increase abrasive wear against soft counterfaces. For sliding or wear-critical parts, PEEK CF30 (Carbon Fiber) is generally preferred due to its superior wear resistance and self-lubricating properties.

Q5: Will PEEK GF30 shed glass fibers during machining or use?

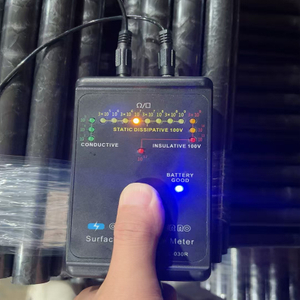

When machined correctly with sharp tools and proper dust extraction, fiber shedding is minimal. However, for ultra-clean environments like semiconductor cleanrooms, we recommend PEEK CF30 or ESD PEEK, which produce less particulate than glass-filled grades.
