PEEK CNC machining is the gold standard for manufacturing high-performance thermoplastic components that demand exceptional thermal stability, chemical resistance, and mechanical strength. For engineers and procurement specialists sourcing critical parts, selecting the right manufacturing partner is as crucial as the material selection itself. As a leading China-based manufacturer, Dongguan PRES Group Co., Ltd. specializes in delivering OEM PEEK solutions—from raw pellets and rods to fully machined, tolerance-critical components—for global brands and distributors.
PEEK (Polyether Ether Ketone) is not just another plastic. It is a high-performance engineering thermoplastic that bridges the gap between traditional plastics and metals. Its unique property profile makes it indispensable in sectors where failure is not an option.
- Continuous service temperature up to 260°C (500°F)—maintains mechanical integrity where most plastics fail.
- Exceptional chemical resistance—withstands aggressive solvents, acids, and hydrocarbons.
- High tensile and flexural strength—comparable to some metals, yet 70% lighter.
- Inherent flame retardancy and low smoke/toxic gas emission—critical for aerospace and transport.
- Biocompatibility (medical-grade PEEK)—suitable for implants and surgical instruments.
These attributes make PEEK ideal for aerospace components, medical devices, semiconductor equipment, oil & gas valves, and high-end automotive parts. However, unlocking these properties requires precision CNC machining expertise.

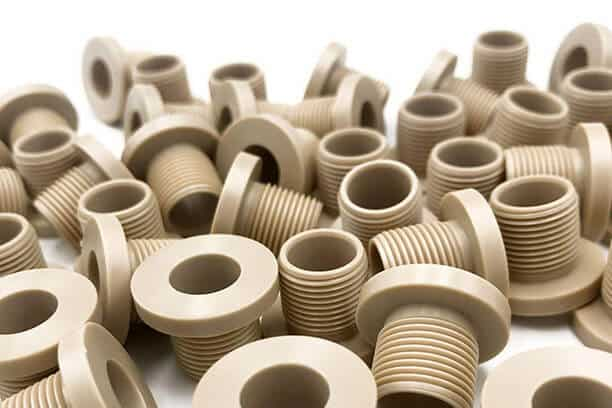

*Figure 1: PEEK's versatility spans aerospace, medical, and industrial sectors due to its unmatched performance.*
CNC machining remains the fastest and most efficient method for producing low-to-medium volume PEEK parts with tight tolerances (±0.0005" or better). Yet, machining PEEK is not like machining aluminum or even standard plastics like ABS or Nylon.
- Low thermal conductivity (~0.29 W/m·K) causes heat to concentrate at the cutting zone, risking thermal deformation.
- High coefficient of thermal expansion demands careful fixturing and cooling strategies.
- Burr and chip formation requires optimized toolpaths and post-machining deburring.
- Reinforced grades (30% glass or carbon fiber) are abrasive and require specialized tooling (e.g., diamond or carbide tips).
1. Annealing Before Machining: A 2-hour heat treatment at 200°C (392°F) relieves internal stresses and enhances crystallinity, reducing warpage during cutting.
2. Tool Selection:
- Unfilled PEEK: Silicon carbide or sharp carbide tools.
- Carbon-fiber-reinforced PEEK: Diamond-coated or polycrystalline diamond (PCD) tools.
3. Coolant Strategy: Use compressed air or mist cooling for medical grades to preserve biocompatibility; flood coolant may be used for industrial grades.
4. Cutting Parameters: High feed rates and moderate speeds balance productivity and surface finish. Typical milling speeds range from 50–200 m/min for unfilled PEEK.
*Figure 2: Precision CNC machining of PEEK requires controlled parameters to avoid thermal distortion.*
While many shops claim PEEK expertise, Dongguan PRES Group Co., Ltd. stands apart through vertical integration and decades of specialization in high-performance polymers.
- In-House Material Production: We manufacture our own PEEK pellets, rods, sheets, tubes, and 3D printing filaments, ensuring raw material consistency and traceability.
- Full-Service OEM Capability: From prototyping to mass production, we handle design support, material selection, CNC machining, quality inspection, and global logistics.
- Industry Certifications: Our facilities comply with ISO 9001 standards, and we support medical-grade PEEK with biocompatibility documentation.
- Proven Track Record: We serve global brand owners, wholesalers, and industrial manufacturers across North America, Europe, and Asia with reliable lead times and competitive pricing.
"PRES delivered our PEEK valve components with ±0.02mm tolerances on the first run. Their in-house extrusion and machining eliminated supply chain delays."— Procurement Director, German Industrial Equipment Manufacturer
"As a medical device OEM, we needed biocompatible PEEK parts with zero contamination risk. PRES's dry-machining protocol and clean-room handling exceeded our expectations."— R&D Lead, US MedTech Startup
To add unique value beyond generic guides, here are three underdiscussed but critical considerations:
For components with deep pockets or long machining cycles, intermediate annealing (re-heating to 180–200°C mid-process) prevents cumulative stress buildup and maintains flatness. This is often overlooked but essential for aerospace-grade parts.
PRES offers high-performance PEEK 3D printing filaments for near-net-shape preforms, which are then finish-machined via CNC. This hybrid approach reduces material waste by up to 40% and cuts lead time for complex geometries.
After machining, parts should undergo dimensional stability testing (e.g., thermal cycling or load-bearing trials) to confirm no latent warpage occurs in service. PRES includes this as standard for critical applications.
Not all PEEK is the same. Selecting the optimal grade directly impacts machinability and performance.
| PEEK Grade | Key Features | Best For | Machining Notes |
|---|---|---|---|
| Unfilled (Natural) PEEK | Highest toughness, best chemical resistance | Medical implants, seals | Easiest to machine; use sharp carbide tools |
| 30% Glass-Filled PEEK | Enhanced stiffness, lower creep | Bearings, structural brackets | Requires preheating; abrasive to tools |
| 30% Carbon-Filled PEEK | High strength, EMI shielding, wear resistance | Aerospace bushings, pump parts | Use diamond tools; preheat to 120°C |
| Medical-Grade PEEK (ISO 10993) | Biocompatible, sterilizable | Surgical instruments, spinal cages | Machine dry or with air coolant only |
If you're sourcing high-precision PEEK components for demanding applications, don't compromise on material quality or machining expertise. Dongguan PRES Group Co., Ltd. combines in-house polymer production, advanced CNC capabilities, and deep application engineering to deliver parts that perform.
Ready to optimize your PEEK supply chain?
→ Contact PRES today for a free DFM (Design for Manufacturability) review and quote on your next project.
→ Request samples of our PEEK rods, sheets, or machined prototypes.
→ Discuss your technical requirements with our engineering team.
Visit www.presplastic.com or email sales@presplastic.com to get started.
Q1: What tolerances can PRES achieve with PEEK CNC machining?
A: Standard tolerances of ±0.05mm are routine; with optimized processes, we consistently hit ±0.0125mm (±0.0005") for critical features.
Q2: Do you offer medical-grade PEEK machining?
A: Yes. We machine ISO 10993-compliant PEEK using dry or air-cooled protocols to preserve biocompatibility, with full documentation support.
Q3: What is the typical lead time for PEEK machined parts?
A: Prototypes: 5–7 days. Production runs (500+ pcs): 10–15 days, depending on complexity and material availability.
Q4: Can you machine carbon-fiber-reinforced PEEK?
A: Absolutely. We use diamond-coated tooling and preheating routines to machine 30% CF-PEEK with excellent surface finish and dimensional control.
Q5: Do you provide DFM feedback before production?
A: Yes. Our engineering team reviews your CAD files and provides free DFM recommendations to optimize cost, tolerances, and manufacturability.
