● Why the PEI Melting Point vs. Tg Distinction Matters for Engineers
● PEI Thermal Properties: Data Engineers Can Trust
● Real-World Application: How Tg vs. "Melting Point" Confusion Causes Failures
>> Case Study: Medical Device Tray Redesign (2025)
● Practical Steps: Selecting PEI for Your Application
● Advanced Insight: PEI in Extreme Environments (−100°C to 200°C)
● Why Partner with Dongguan PRES Group for PEI?
● Frequently Asked Questions (FAQ)

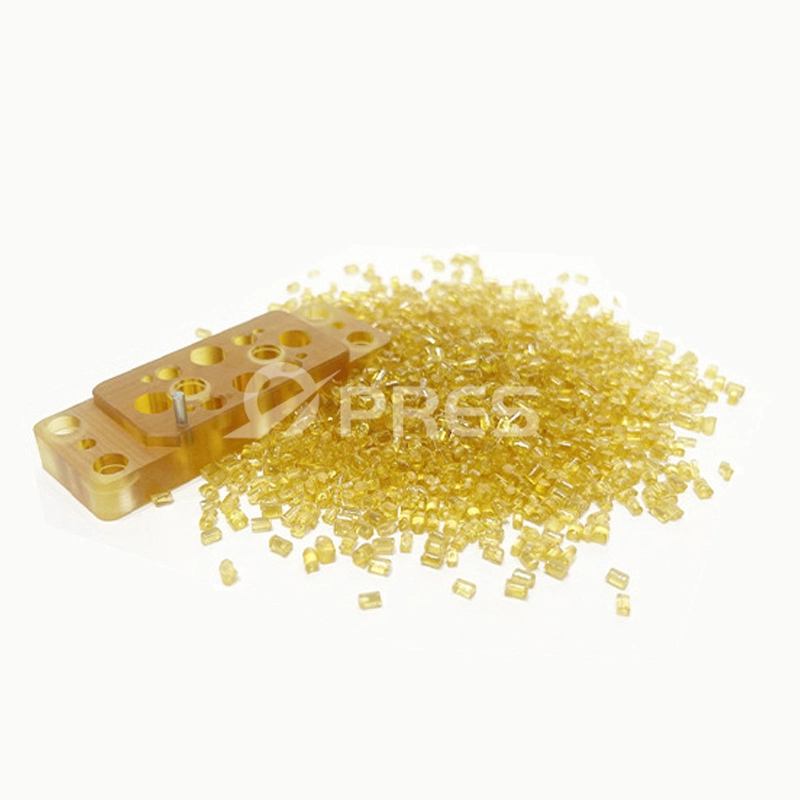

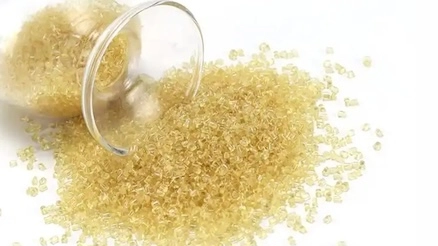

At Dongguan PRES Group Co., Ltd., we understand that selecting the right high-performance plastic isn't just about datasheets—it's about real-world performance under stress. As a leading Chinese manufacturer of PEI (polyetherimide) granules, sheets, rods, tubes, powders, and premium 3D printing filaments, we've helped hundreds of international brands and OEM partners avoid costly design failures by clarifying one critical distinction: PEI doesn't have a traditional melting point like semi-crystalline plastics. Instead, its glass transition temperature (Tg) defines its upper service limit.
This article cuts through the confusion with actionable insights from our engineering team and customer case studies, so you can specify PEI with confidence.
Polyetherimide (PEI), commercially known as ULTEM™, is an amorphous thermoplastic—meaning it lacks the ordered crystalline structure found in materials like PEEK or nylon. This fundamental difference has profound implications:
- Amorphous plastics like PEI do not have a sharp melting point (Tm). Instead, they gradually soften as temperature rises.
- The glass transition temperature (Tg ≈ 217°C / 423°F) marks where PEI transitions from a rigid, glassy state to a rubbery, less load-bearing state.
- Processing temperatures (340–425°C) are often mistakenly cited as "melting points," but these reflect melt viscosity for injection molding or extrusion—not a phase change.
Key takeaway for engineers: For amorphous PEI, Tg is your design ceiling, not Tm. Exceeding 217°C in service leads to rapid loss of stiffness and dimensional stability.symbchem+2
Based on industry-standard grades like ULTEM 1000 and 2300 (30% glass-filled), here's what our PRES technical team recommends tracking:
| Property | Value | Practical Significance |
|---|---|---|
| Glass Transition Temperature (Tg) | 217°C (423°F) | Maximum continuous service temperature for structural parts trumould+1 |
| Heat Deflection Temperature (HDT @ 1.8 MPa) | 197–207°C | Short-term load-bearing capability under test conditions sukeplastics+1 |
| Processing Melt Range | 340–425°C | Injection molding or extrusion window—not a service limit trumould+1 |
| Continuous Service Temperature (CST) | 170–180°C | Real-world safe operating range with safety margin yifuhuiplastic+1 |
| UL Relative Temperature Index (RTI) | 170°C | Long-term thermal aging rating for electrical/structural use |
Industry insight from PRES: Many engineers over-specify PEI by assuming it can run continuously at 217°C. In practice, we recommend designing for 170–180°C maximum to account for stress, chemical exposure, and long-term creep.
A European medical device manufacturer approached PRES after repeated autoclave failures. Their PEI instrument trays warped after 50+ sterilization cycles at 134°C steam. Initial analysis showed:
- Material specified: Unfilled PEI (Tg = 217°C)
- Assumption: "Tg is 217°C, so 134°C is safe"
- Reality: Under clamping stress + repeated thermal cycling, parts deformed at 140°C+
PRES solution: We recommended 30% glass-filled PEI (ULTEM 2300 equivalent), which maintains stiffness closer to Tg under load. Post-redesign, trays survived 500+ autoclave cycles with zero warpage.
Lesson learned: Tg is not a hard limit—it's a transition zone. Stress, fillers, and cycling matter.
Our PRES engineering team uses this 5-step framework for customer projects:
1. Define maximum continuous service temperature (CST). Target ≤170°C for unfilled PEI; ≤180°C for glass-filled grades.
2. Check mechanical load at temperature. Use HDT and RTI data, not just Tg.
3. Consider environmental factors. Steam, chemicals, or UV exposure reduce effective Tg.
4. Choose the right grade. Unfilled PEI for transparency/chemical resistance; 30% GF for structural rigidity.
5. Validate with prototyping. PRES offers rapid sample production in granules, sheets, or 3D printing filament for testing.
Recent research shows PEI's dielectric properties remain stable from −100°C to 200°C, making it ideal for aerospace and EV battery applications. However, this doesn't override Tg for mechanical design:
- Below Tg: PEI maintains >90% of room-temperature stiffness.
- Near Tg (200–217°C): Modulus drops sharply—avoid structural loads.
- Above Tg: Material behaves like a viscous liquid; only suitable for non-load-bearing uses.
PRES recommendation: For high-voltage insulation or non-structural components, PEI can operate closer to 200°C. For mechanical parts, stay below 170°C.
As a vertically integrated manufacturer in Dongguan, PRES delivers:
- Custom PEI formulations: Unfilled, 30% GF, flame-retardant, and medical-grade options.
- Full product range: Granules, sheets (up to 100mm thick), rods, tubes, fine powders for coating, and high-performance 3D printing filaments optimized for FDM/FFF.
- OEM expertise: We've supported 50+ international brands with private-label production, technical documentation, and ISO-compliant quality control.
- Rapid prototyping: From 5kg sample batches to full production runs, we accelerate your development cycle.
"PRES's PEI granules gave us consistent melt flow for thin-wall medical parts—critical for our automation line." — R&D Director, German Medical Device OEM (2025)
Q1: Does PEI have a melting point?
No. PEI is amorphous and lacks a crystalline melting point (Tm). It softens gradually above its glass transition temperature (Tg ≈ 217°C).
Q2: What's the maximum service temperature for PEI?
For continuous structural use, design for 170–180°C (not 217°C). Short-term exposure up to 200°C is acceptable for non-load-bearing parts.
Q3: Can PEI be used for 3D printing?
Yes. PRES offers high-temperature PEI filaments optimized for industrial FDM printers. Print bed temperature: 140–175°C; nozzle: 360–400°C.
Q4: How does glass-filled PEI (ULTEM 2300) differ from unfilled (ULTEM 1000)?
30% glass reinforcement improves HDT, stiffness, and creep resistance near Tg—ideal for aerospace and medical trays. Unfilled PEI offers better chemical resistance and transparency.
Q5: Is PEI autoclavable?
Yes. Unfilled and glass-filled PEI withstand repeated steam sterilization at 134°C. For 500+ cycles, use glass-filled grades to prevent warpage.
1. Trumould. "PEI (Ultem) Properties and Design Guide." 2026. [https://trumould.com/material-pei.html]
2. Texas Injection Molding. "Heat-Resistant Plastics for Injection Molding: A Material Comparison." August 2026. [https://texasinjectionmolding.com/blog/heat-resistant-plastics/]
3. Suke Plastics. "ULTEM™ Resin 9011." August 2026. [https://sukeplastics.com/products/ultem-resin-9011/]
4. Cylex Plastics. "30% Glass-Filled ULTEM (PEI 2300) vs. PA66-GF30 in Aerospace." August 2026. [https://cylexplastics.com/30-glass-filled-ultem-pei-2300-vs-pa66-gf30-aerospace/]
5. Symbchem. "Polymer Thermal Properties: Tg, Tm, HDT, Vicat Explained." August 2026. [https://symbchem.com/polymer-thermal-properties-tg-tm-hdt-vicat-explained/]
6. Yifuhui Plastic. "High Temperature Engineering Plastics: 2026 Selection Guide for Engineers." May 2026. [https://yifuhuiplastic.com/blog/high-temperature-engineering-plastics/]
7. Advanced Materials. "Stable Energy Storage Capacity of Polymer Dielectrics From −100°C to 200°C." 2025. [https://advanced.onlinelibrary.wiley.com/doi/10.1002/adfm.75391]
8. Rollyu. "What Is Ultem? PEI Properties, Grades & Applications." 2026. [https://rollyu.com/what-is-ultem/]
9. WeProFab. "Plastic Temp Range Guide: Operating, Melting & Service Limits." April 2026. [https://www.weprofab.com/plastic-temp-range-guide/]
10. AON3D. "Thermoplastic Polyimide (TPI) Material Properties and Applications." June 2026. [https://www.aon3d.com/material-science/thermoplastic-polyimide-tpi-material-properties-and-applications/]
