Unfilled PEEK 880G for Injection

Name: Unfilled PEEK 880G for Injection
Brand: PRES
SKU: 510884607
Rating: 5.0 (98 reviews)

PEEK 880G is our Enhanced Flow unfilled resin (MFR 20 g/10min, ISO 1133), offering easier mold filling for thin-walled or complex injection parts while retaining the inherent toughness of virgin PEEK. Compared with high-viscosity PEEK 990G, 880G provides lower melt viscosity; vs. ultra-high-flow grades it has higher molecular weight and better fatigue resistance. Download TDS and selection guide.

Material:	100% virgin PEEK
Color:	NATURE
MOQ:	1KG
Packing:	25kg/bag
Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 880G
Brand:
PRES

Product Description

|

PEEK 880G Product Description

	Enhanced Flow
	✅MFI is 20g/10min ,ISO1133,380°C 5kg ✅The molecular weight of PEEK 880G is at a moderate level (MFR 20 g/10min, ISO 1133), between high viscosity 990G and ultra-high flow grades.
	Balanced Processability & Toughness
	✅Compared to ultra-high flow PEEK resin, 880G has a higher molecular weight, therefore it has better toughness and fatigue resistance, making it more suitable for applications with certain dynamic loads. ✅Compared to high viscosity PEEK 990G: 880G, the melt viscosity is lower, making it easier to fill molds with thin-walled, complex structures, or long flow channels, and suitable for injection molding precision PEEK components.

| PEEK 880G Application

PEEK 880G is an Enhanced Flow unfilled resin with excellent chemical resistance, high-temperature stability and inherent toughness. It is specifically developed for injection molding of precision PEEK components.

Thanks to its balanced molecular weight, 880G combines good mold filling capability with retained toughness, making it suitable for parts requiring both dimensional accuracy and mechanical reliability under dynamic or sterilizable conditions.

PEEK 880G is widely used in electronics, semiconductor, medical devices, analytical instruments, and automotive systems where tight tolerances, chemical resistance and high heat resistance are required.

Typical injection molded PEEK 880G components include:

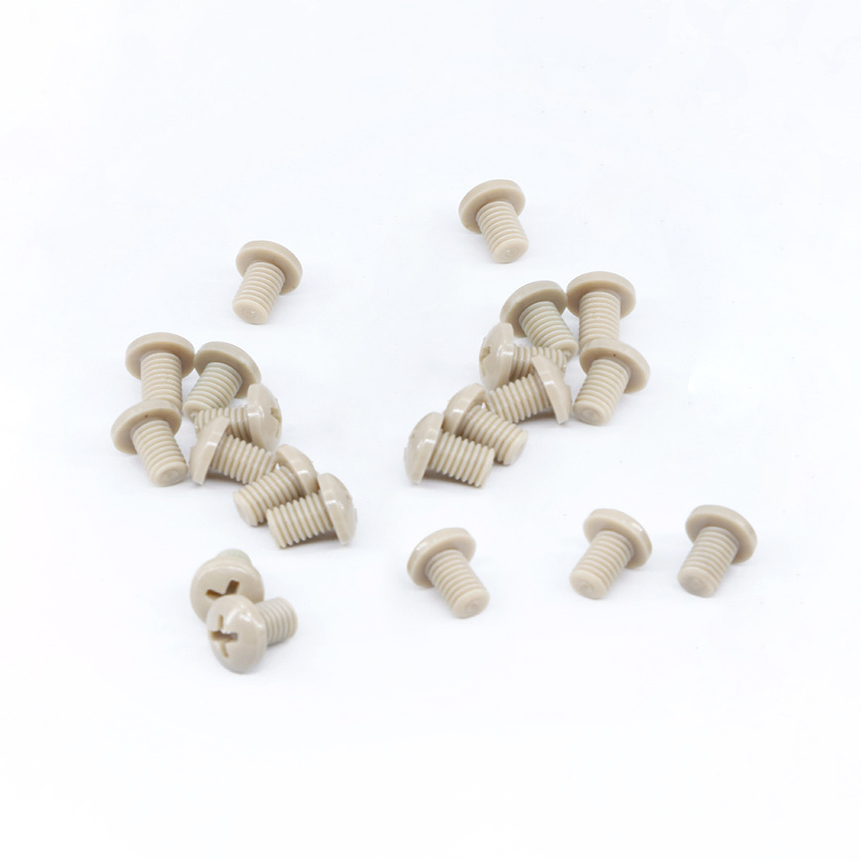

high precision screw made of PEEK880G

PEEK sealing rings

|

Certifications

|

Download PEEK 880G Technical Data Sheet

PRESPEEK880G.pdf

Test Item	Test Method	Conditions	Units	Test Data
Mechanical Data
Tensile Strength	ISO 527	Yield, 23℃	MPa	100
Tensile Elongation	ISO 527	Break, 23℃	%	45
Flexural Strength	ISO 178	Yield,23℃	MPa	165
Flexural Modulus	ISO 178	23℃	GPa	4.1
Compressive Strength	ISO 604	23℃	MPa	125
Charpy Impact Strength	ISO 179/1eA	Notched	kJ/m²	7
Charpy Impact Strength	ISO 179/1U	Unnotched	kJ/m²	-
Mould Shrinkage	ISO 294-4	Along Flow	%	1
Mould Shrinkage	ISO 294-4	Across Flow	%	1.3
Thermal Data
Melting Point	ISO 11357	-	℃	343
Glass Transition (Tg)	ISO 11357	Onset	℃	143
Special Heat Capacity	DSC	23℃	kJ kg-1 ℃-1	2.2
Coefficient of ThermalExpansion	ISO 11359	Along flow below Tg	ppm K-1	45
Coefficient of ThermalExpansion	ISO 11359	Along flow above Tg	ppm K-1	120
Heat DeflectionTemperature	ISO 75	1.8 Mpa	℃	152
Thermal Conductivity	ISO 22007-4	23℃	W m-1 K-1	0.29
Flow
Melt Index	ISO 1133	380℃,5kg	g 10min-1	20
Miscellaneous
Density	ISO 1183	Crystalline	g/cm³	1.3
Density	ISO 1183	Amorphous	g/cm³	1.26
Shore D Hardness	ISO 868	23℃		85
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	24h, 23℃	%	0.07
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	Equilibrium, 23℃	%	0.4
