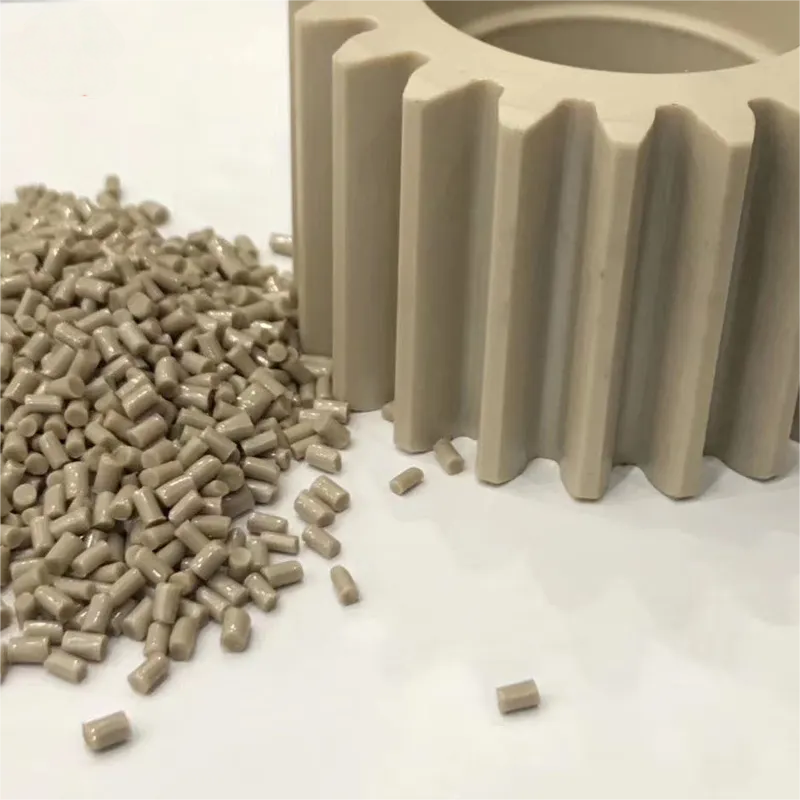

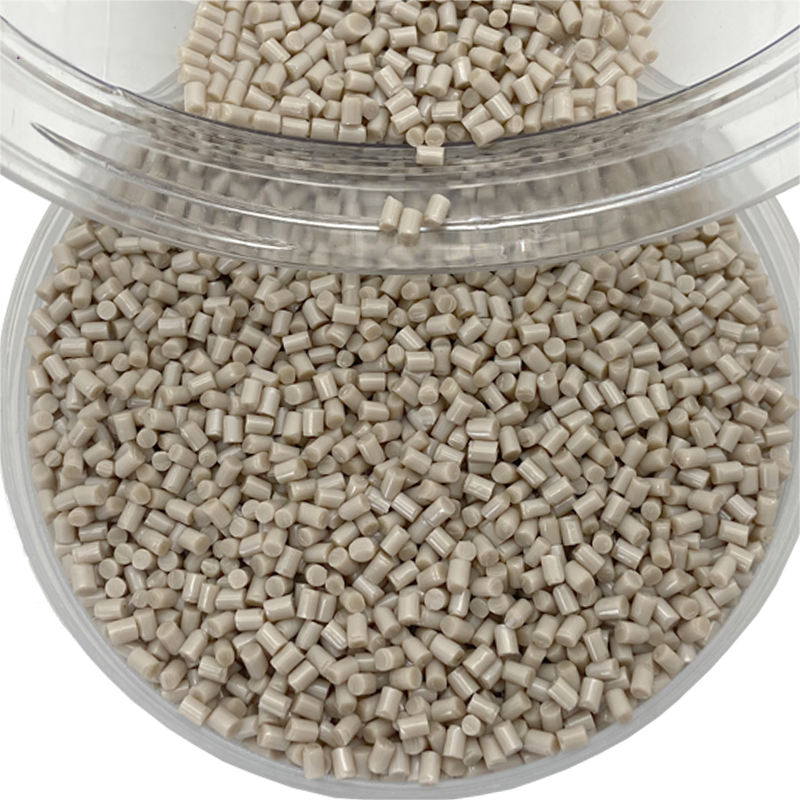

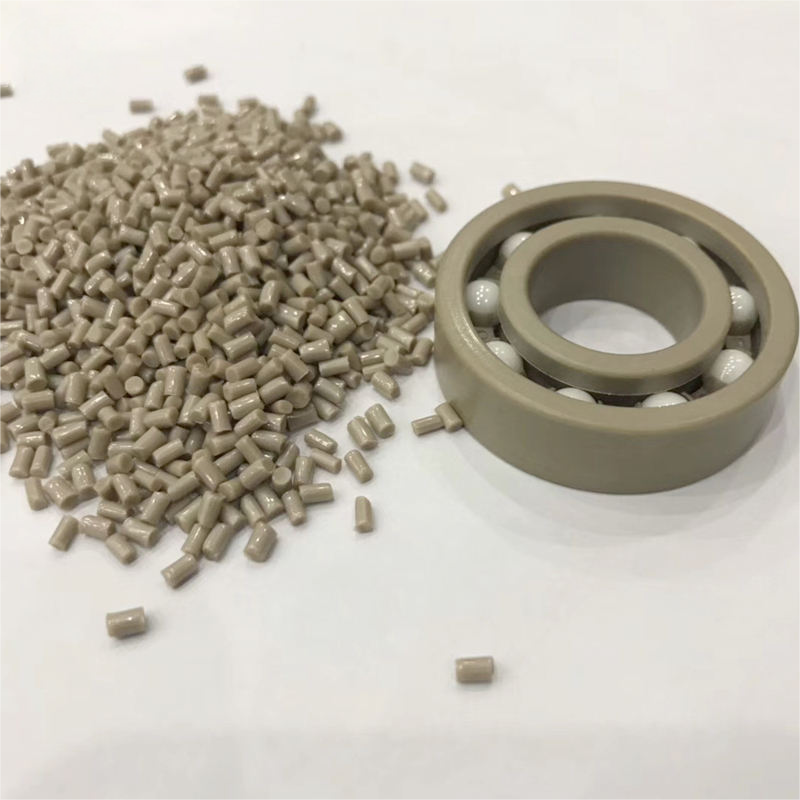

Unfilled Pure Standard Flow PEEK resin 990G for Extrusion

Name: Unfilled Pure Standard Flow PEEK resin 990G for Extrusion
Brand: PRES
SKU: 537069417
Rating: 5.0 (40 reviews)

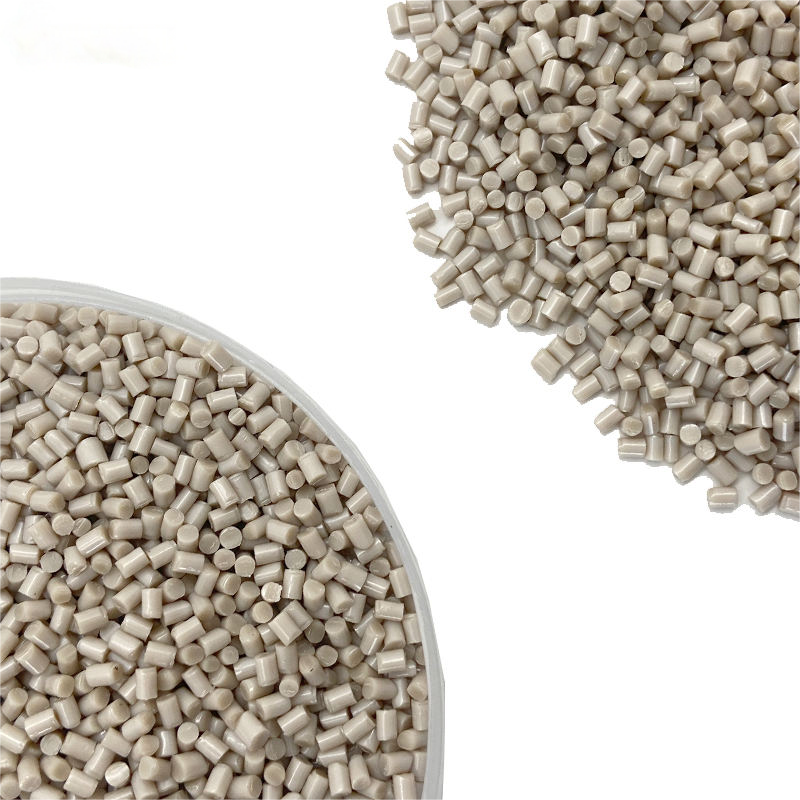

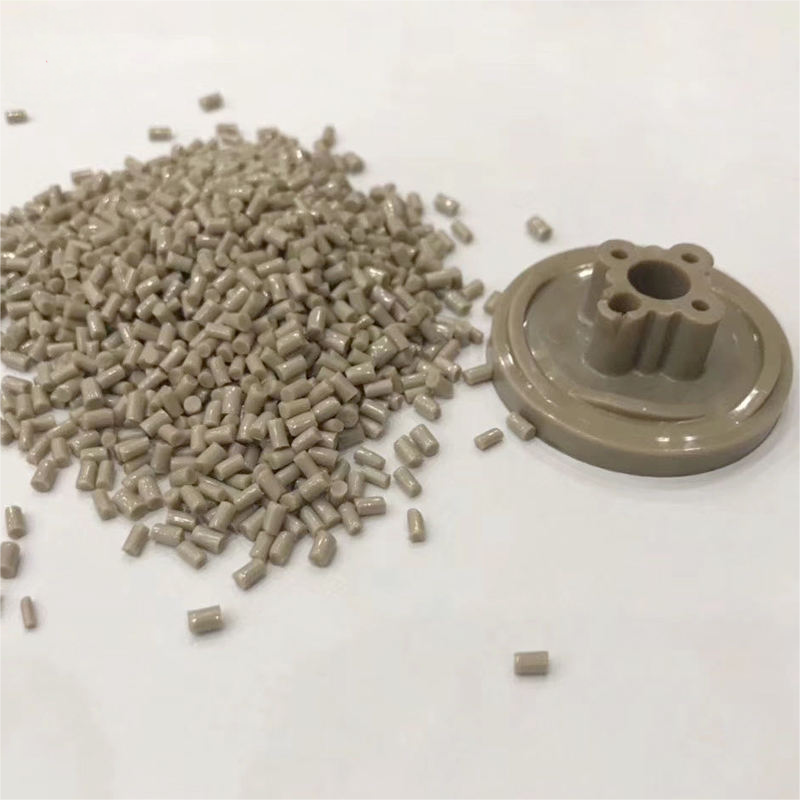

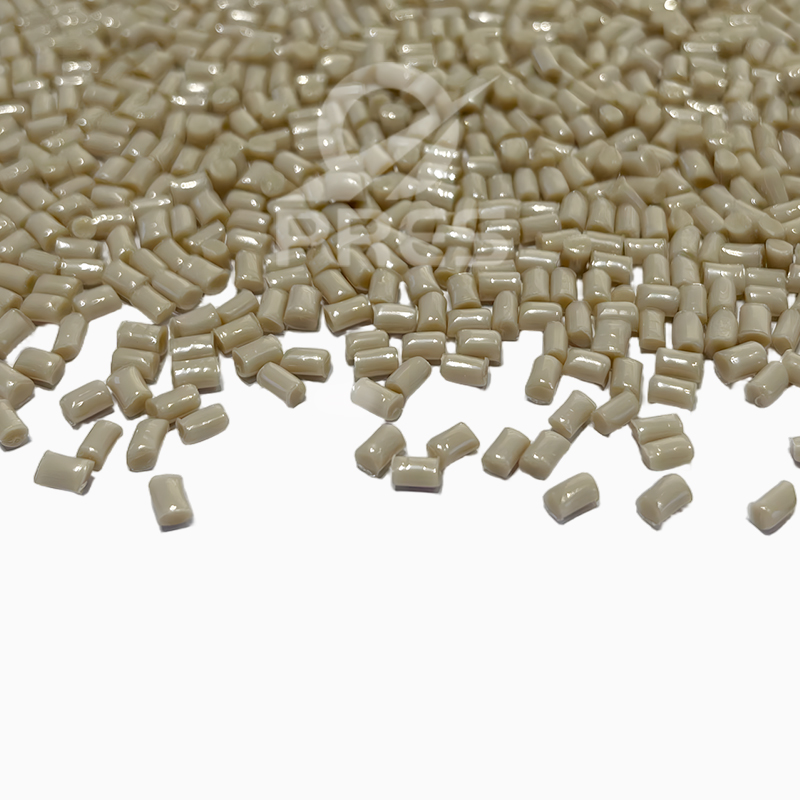

PEEK 990G is an unfilled pure resin with standard flowability and high melt strength, suitable for extrusion of profiles and manufacturing of PEEK films.

PEEK material is currently one of the best temperature resistant thermoplastic materials, with a wide range of applications

Material:	100% virgin PEEK
Color:	NATURE
MOQ:	1KG
Packing:	25kg/bag
Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 990G
Brand:
PRES

Product Description

PEEK 990G Product Description

	✅	High-temperature resistant
	Glass transition temperature: 143°C Heat distortion temperature: 152°C Long-term using temperature: 260°C Short-term using temperature: 300°C Melting point: 343°C
	✅	High toughness and impact resistance
	Pure PEEK has excellent toughness, does not break under notched impact. Pure PEEK's Fatigue resistance is betterthan fiber-reinforced PEEK
	✅	Standard Flow, high melt strength
	10g/10min(ISO1133,380°C，5kg)，Stable formation

|PEEK 990G Application

PEEK 990G combines high temperature stability, chemical resistance and outstanding toughness— even after repeated sterilization by steam, ethanol or gamma irradiation.

As our Standard Flow grade (vs. Enhanced Flow PEEK 880G), 990G offers higher melt viscosity and excellent melt strength, making it the preferred choice for extrusion of semi-finished shapes and thick-section injection parts requiring high toughness.

Typical extruded products made from PEEK 990G:

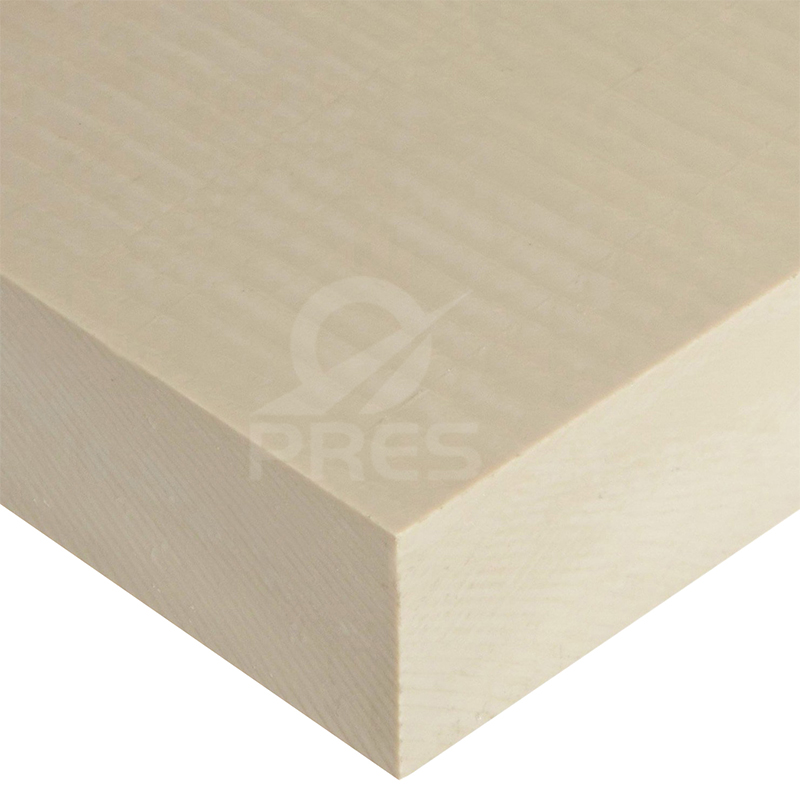

PEEK sheet

PEEK extruded rod 990G unfilled high viscosity

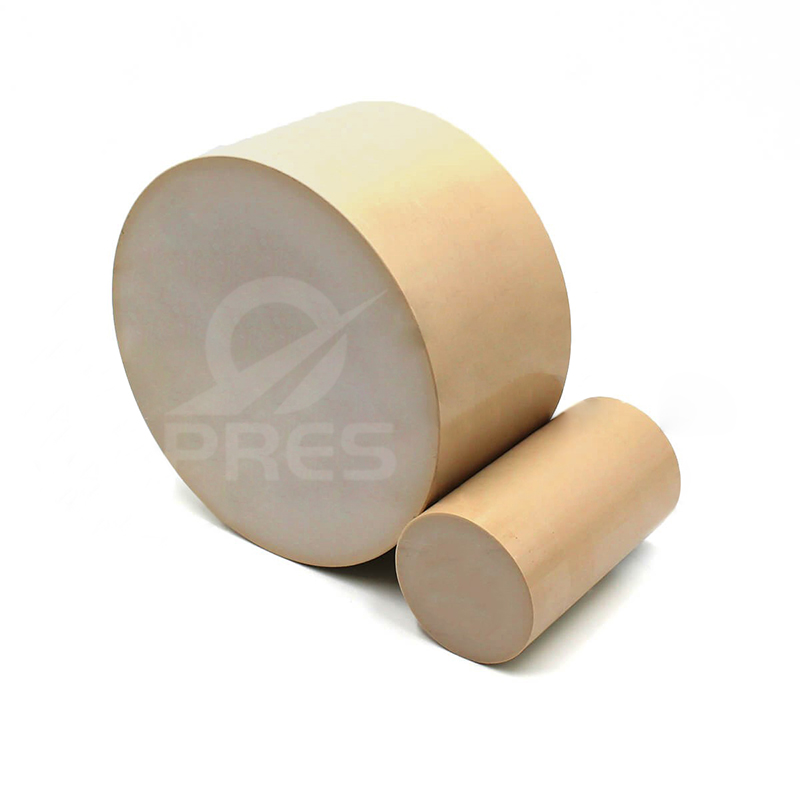

PEEK rods

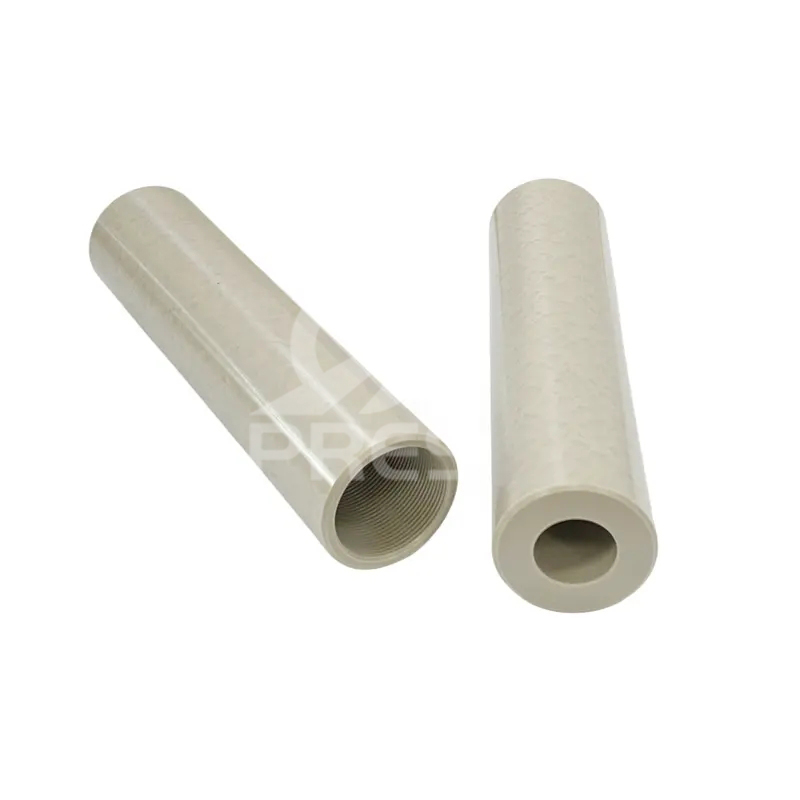

PEEK tubes

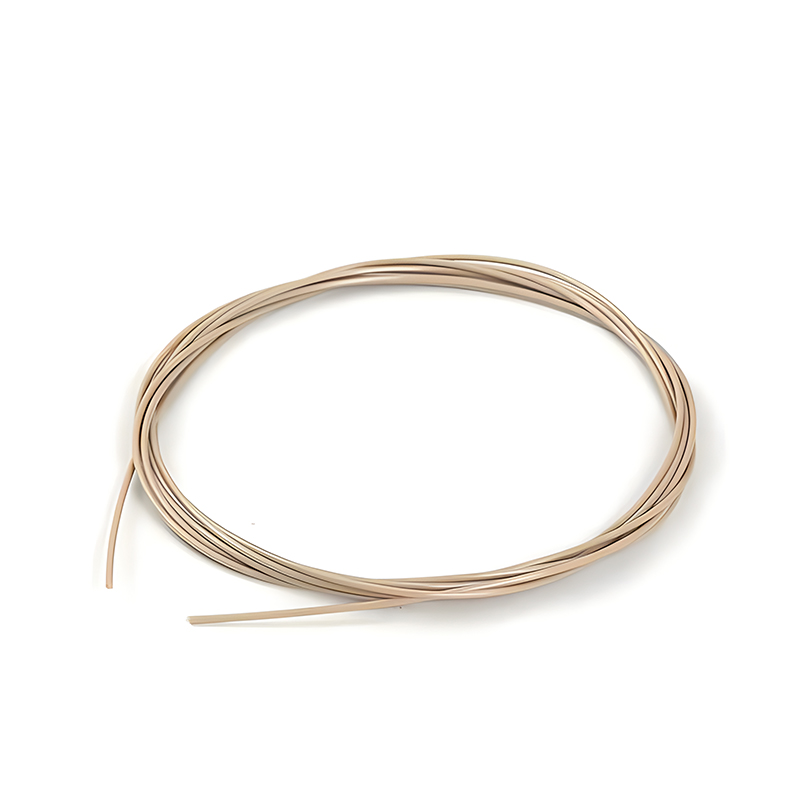

PEEK filaments

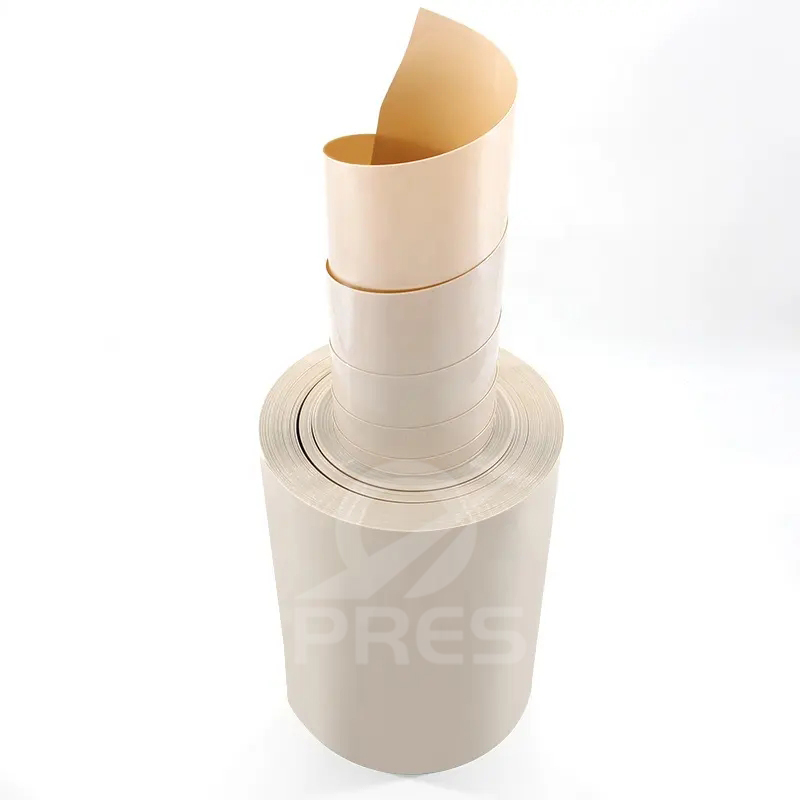

PEEK film

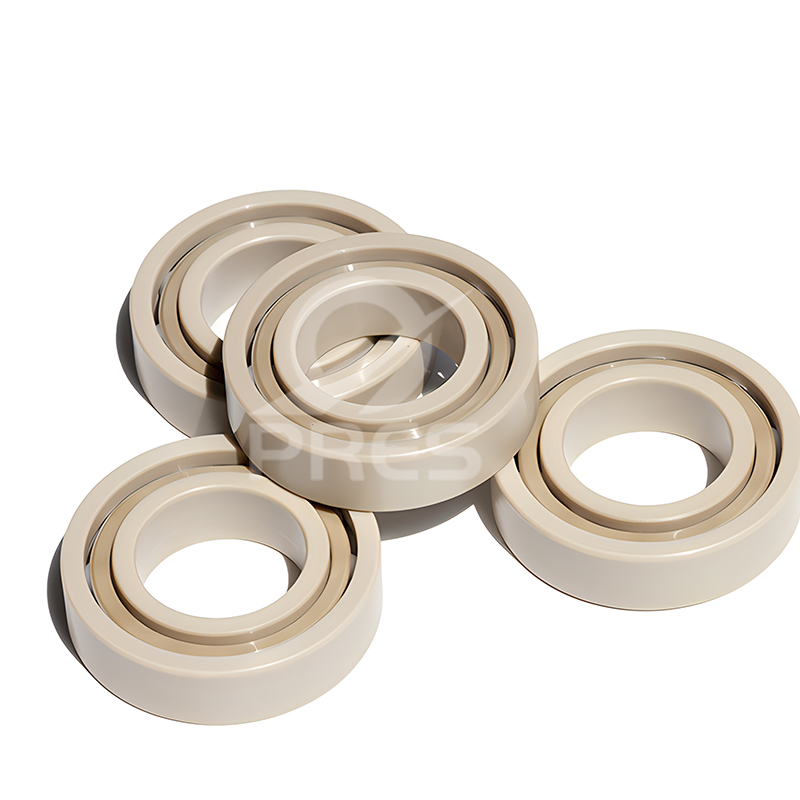

PEEK bearing

| How to choose the suitable grade of PEEK pellets?

Data Sheet

Download 990G Data sheetPRESPEEK990G.pdf

PEEK 990G Unfilled Polyether ether ketone Resin – Typical Properties
Test Item	Test Method	Condition	Unit	Value
Mechanical Properties
Tensile Strength	ISO 527	Yield, 23°C	MPa	100
Tensile Elongation	ISO 527	Break, 23°C	%	45
Flexural Strength	ISO 178	Yield, 23°C	MPa	165
Flexural Modulus	ISO 178	23°C	GPa	4.1
Charpy Impact (Notched)	ISO 179/1eA	Notched	kJ/m²	7
Charpy Impact (Unnotched)	ISO 179/1U	Unnotched	kJ/m²	No Break
Thermal Properties
Melting Point	ISO 11357	–	°C	343
Glass Transition Temperature	ISO 11357	Onset	°C	143
Heat Deflection Temperature	ISO 75	1.8 MPa	°C	152
Processing Properties
Melt Flow Rate	ISO 1133	380°C, 5 kg	g/10 min	10 ±1
Physical Properties
Density (Crystalline)	ISO 1183	–	g/cm³	1.30
Density (Amorphous)	ISO 1183	–	g/cm³	1.26
Water Absorption (24 h)	ISO 62	23°C	%	0.07
