PEEK (Polyether Ether Ketone) is a high-performance thermoplastic known for its exceptional mechanical and thermal properties. This unique material is widely used in various industries, including aerospace, automotive, medical, and electronics, due to its ability to withstand extreme temperatures and harsh chemical environments. To ensure the quality and reliability of PEEK materials in these applications, specialized testing equipment is essential. This article explores the key performance testing devices used for PEEK, including hot wire testers, bending and tensile testing machines, density testers, cantilever beam impact testers, melt flow index testers, and Shore durometers.
The hot wire tester is crucial for evaluating the thermal conductivity of PEEK materials. This device measures how well heat passes through the material, which is vital for applications in electronics and aerospace where thermal management is critical. By ensuring optimal thermal performance, manufacturers can enhance the reliability of their PEEK components.
The hot wire tester operates by passing an electric current through a thin wire that is in contact with the PEEK sample. As the wire heats up, the temperature rise is measured, allowing for the calculation of thermal conductivity. This property is particularly important in applications where heat dissipation is necessary, such as in electronic components that generate significant heat during operation.
In the aerospace industry, for instance, PEEK is often used in components that require excellent thermal stability. The hot wire tester helps manufacturers ensure that these components can operate effectively under high-temperature conditions without compromising performance. Similarly, in the medical field, where PEEK is used for implants and surgical instruments, understanding thermal properties is essential for patient safety and device efficacy.

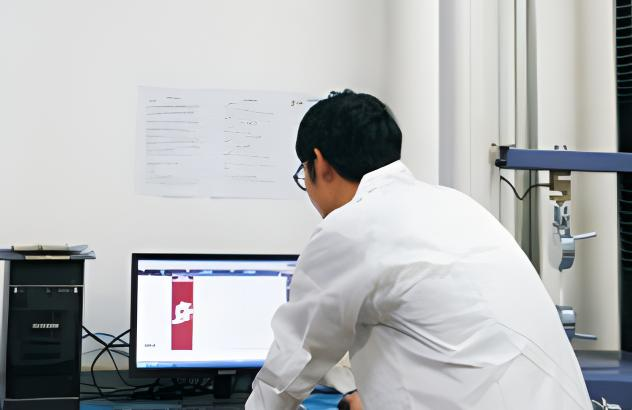

Bending and tensile testing machines are essential for assessing the mechanical strength of PEEK. These machines apply controlled forces to determine the material's resistance to bending and stretching. The results provide valuable insights into the material's elasticity, tensile strength, and overall durability, which are critical for applications in automotive and medical devices.
These testing machines are equipped with advanced sensors for accurate force and displacement readings. They can perform various tests, including tensile tests, flexural tests, and compression tests, depending on the requirements of the material being evaluated. The machines are designed to comply with international standards, ensuring that the results are reliable and consistent.
Mechanical testing is vital for understanding how PEEK materials will perform under real-world conditions. For example, in automotive applications, components made from PEEK must withstand significant stress and strain during operation. By conducting bending and tensile tests, manufacturers can identify potential weaknesses in the material and make necessary adjustments to improve performance.
The density tester measures the mass per unit volume of PEEK materials. This property is crucial for applications where weight is a critical factor, such as in aerospace and automotive industries. Understanding the density helps in material selection and ensures that the final product meets performance specifications.
Density testing typically involves measuring the weight of a known volume of the material. This can be done using various methods, including water displacement or using specialized density measurement devices. The results provide insights into the material's composition and can help manufacturers determine if the PEEK material is suitable for specific applications.
In the aerospace sector, for instance, reducing weight is a primary concern. PEEK's low density combined with its high strength makes it an ideal choice for aircraft components. By using density testers, manufacturers can ensure that they are using the right grade of PEEK that meets both weight and performance requirements.

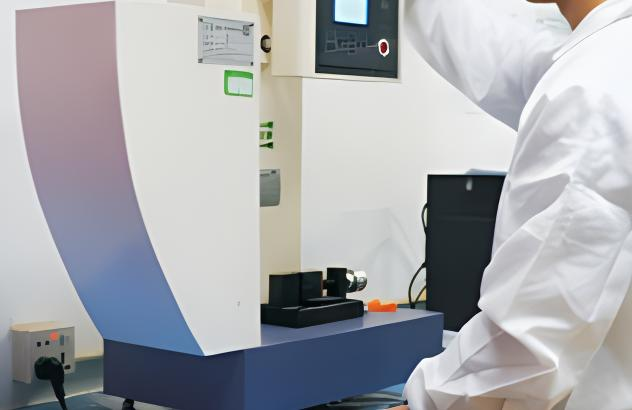

The cantilever beam impact tester evaluates the impact resistance of PEEK materials. This device simulates real-world conditions by applying sudden forces to the material, allowing manufacturers to assess its toughness and durability. The results are vital for ensuring that PEEK components can withstand harsh environments without failure.
The cantilever beam impact tester typically involves a pendulum mechanism that strikes the PEEK sample. The energy absorbed by the material during the impact is measured, providing a clear indication of its toughness. This type of testing is particularly important for materials used in applications where they may be subjected to sudden impacts or shocks.
Impact testing is crucial for applications in various industries. For example, in the automotive industry, components made from PEEK must be able to withstand impacts from road debris or collisions. By conducting impact tests, manufacturers can ensure that their products will perform reliably in these challenging conditions.

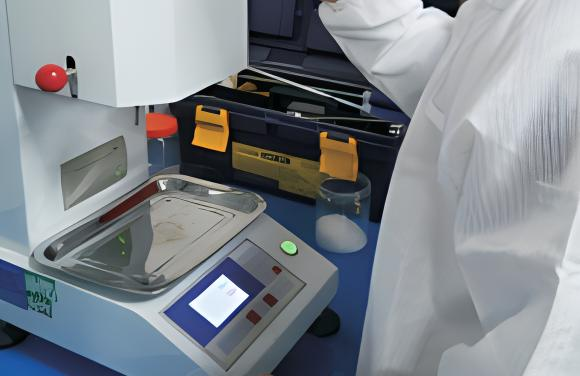

The melt flow index tester is used to determine the flow characteristics of PEEK during processing. This test measures the melt mass flow rate, which is critical for optimizing manufacturing processes. By understanding how PEEK flows under heat and pressure, manufacturers can improve production efficiency and reduce waste.
The melt flow index tester operates by heating a sample of PEEK to a specific temperature and then forcing it through a standardized die under a specified load. The amount of material that flows through the die in a given time is measured, providing a melt flow index value. This value is essential for predicting how the material will behave during processing, such as injection molding or extrusion.
In manufacturing, understanding the melt flow index of PEEK is vital for ensuring consistent quality in the final product. For instance, if the melt flow index is too low, the material may not fill the mold properly, leading to defects. Conversely, if it is too high, the material may flow too easily, resulting in poor dimensional stability. By using melt flow index testers, manufacturers can fine-tune their processing parameters to achieve optimal results.

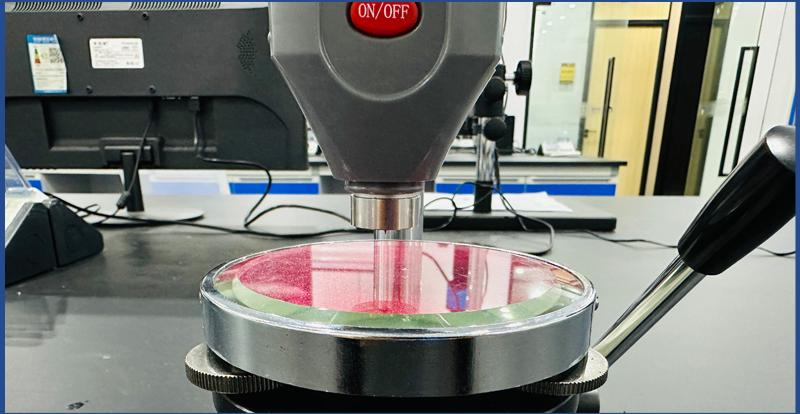

The Shore durometer measures the hardness of PEEK materials. This property is essential for applications where surface hardness is critical, such as in seals and bearings. The durometer provides a quick and reliable way to assess the hardness, ensuring that the material meets the required specifications for its intended use.
There are different types of Shore durometers, including Shore A and Shore D, which are used for softer and harder materials, respectively. The choice of durometer depends on the specific application and the hardness range of the PEEK material being tested.
Hardness testing is crucial for applications where wear resistance is important. For example, in the manufacturing of seals and gaskets, the hardness of the material can significantly affect its performance and longevity. By using Shore durometers, manufacturers can ensure that their PEEK components will perform reliably under various conditions.
Investing in high-quality PEEK performance testing equipment is essential for manufacturers aiming to produce reliable and durable products. By utilizing hot wire testers, bending and tensile testing machines, density testers, cantilever beam impact testers, melt flow index testers, and Shore durometers, companies can ensure that their PEEK materials meet the highest standards of performance and quality. This not only enhances product reliability but also contributes to customer satisfaction and business success.
In summary, the rigorous testing of PEEK materials through these specialized devices allows manufacturers to optimize their products for specific applications, ensuring that they can withstand the demands of their respective industries. As technology continues to advance, the development of more sophisticated testing equipment will further enhance the ability to assess and improve the performance of PEEK materials, paving the way for innovative applications and solutions in the future.
