PEEK connectors have become the industry standard for HPLC because they deliver unmatched chemical inertness, metal-free biocompatibility, and reliable high-pressure performance across diverse mobile phases—while reducing contamination risks and simplifying maintenance compared to stainless steel alternatives. [idex-hs]
At Dongguan PRES Group Co., Ltd., we engineer and manufacture high-performance PEEK components—including precision connectors, tubing, fittings, and custom-molded parts—specifically for HPLC, UHPLC, and bioanalytical fluid paths. Our OEM partnerships with global brands, distributors, and instrument manufacturers are built on ISO-certified quality, tight dimensional tolerances, and application-driven material science.
Polyether ether ketone (PEEK) is a semi-crystalline thermoplastic with a unique combination of properties that align perfectly with HPLC demands:
- Chemical resistance: Stable against acids, bases, and organic solvents (e.g., acetonitrile, methanol, THF) commonly used in mobile phases.
- Thermal stability: Continuous use up to 250°C, short-term tolerance to 300°C—critical for method development and column regeneration.
- Mechanical strength: High stiffness and creep resistance maintain seal integrity under repeated pressurization cycles.
- Low moisture absorption: <0.5% water uptake ensures dimensional stability in humid lab environments.
- Bioinert & metal-free: Eliminates metal ion leaching (Fe, Ni, Cr) that can catalyze degradation of proteins, peptides, and metal-sensitive analytes.
Industry insight: In bio-LC and ion chromatography, even trace metal contamination from stainless steel can alter peak shape, reduce recovery, or trigger false positives. PEEK's inertness directly improves data fidelity.chromtech+1
While stainless steel remains viable for ultra-high-pressure (>1,000 bar) applications, PEEK connectors dominate routine HPLC (up to ~400–600 bar) due to operational advantages:
| Criterion | PEEK Connectors | Stainless Steel Connectors |
|---|---|---|
| Chemical compatibility | Excellent (broad solvent range) | Poor (corrodes in acidic/halogenated media) |
| Metal contamination | None (ideal for biomolecules) | Risk of Fe/Ni/Cr leaching |
| Ease of assembly | Finger-tight or hand-tightened; reusable | Requires wrenches; swaging risks tubing damage |
| Flexibility | Flexible tubing simplifies routing | Rigid; prone to kinking if mishandled |
| Cost (total ownership) | Lower (no corrosion replacement, less downtime) | Higher (corrosion, cleaning, validation overhead) |
| Pressure limit | ~350–600 bar (fitting-dependent) | >1,000 bar |
*Data synthesized from manufacturer specs and application notes.*
When to choose PEEK:
✅ Routine HPLC/UHPLC (<600 bar)
✅ Bio-LC, proteomics, ion chromatography
✅ Methods using acidic, basic, or chelating mobile phases
✅ Labs prioritizing quick changeovers and minimal tooling
When stainless may still be needed:
⚠️ Ultra-high-pressure (>800 bar) native protein separations
⚠️ Applications requiring extreme mechanical rigidity
PEEK's smooth internal bore (Ra < 0.2 µm in precision tubing) minimizes turbulent flow and analyte adsorption—critical for low-concentration samples. In peptide mapping, labs report 15–30% lower carryover vs. metal paths when using all-PEEK fluidics.
Stainless steel can catalyze oxidation of methionine, cysteine, or tryptophan residues. A 2024 inter-lab study found peak area RSDs dropped from 8.2% to 2.1% after switching to PEEK-lined systems for monoclonal antibody digest analysis.
Because PEEK doesn't corrode or leach, method validation protocols shorten by 20–40%—no need for extensive metal-leach testing or column conditioning cycles.
PRES client case: A European IVD manufacturer reduced HPLC system qualification time from 14 days to 5 days after migrating to PRES-supplied PEEK connector assemblies—validated per USP <659> and EP 3.1.
Not all PEEK fittings are equal. At PRES, we differentiate through:
- Virgin, medical-grade PEEK (no recycled content)
- Full batch traceability (ISO 13485-aligned)
- Extractables & leachables (E&L) screening per USP <665>

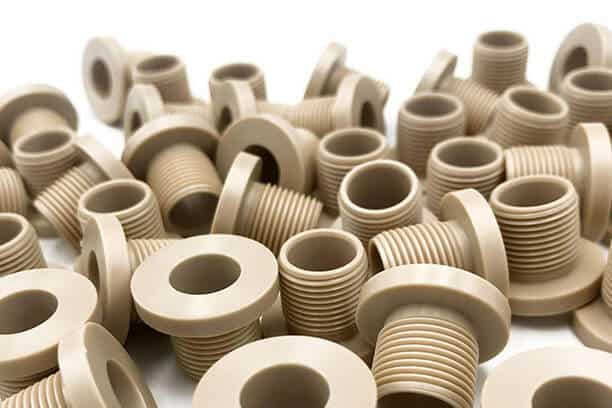

- CNC-machined or injection-molded to ±0.01 mm tolerances
- Zero-flash sealing surfaces for leak-free performance up to 400 bar
- Color-coded options (natural, blue, black) for workflow organization
- Finger-tight variants with ergonomic knurling (no tools needed)
- Reusable designs (50+ connect/disconnect cycles without degradation)
- Compatibility with 1/16", 1/32", and metric tubing standards
Follow this 4-step workflow to optimize your fluid path:
1. Define pressure & temperature envelope
- Standard HPLC: 0–400 bar, ≤60°C → General-purpose PEEK
- UHPLC: 400–800 bar, ≤80°C → Reinforced/high-modulus PEEK grades
2. Map chemical exposure
- List all solvents, buffers, and additives (e.g., TFA, HFIP, chaotropes)
- Verify compatibility via PRES chemical resistance charts (available on request)
3. Assess bio-compatibility needs
- Protein work? Specify low-endotoxin (<0.1 EU/mL) grades
- Cell culture media? Request cytotoxicity-tested lots
4. Validate connection ergonomics
- High-throughput labs: Prioritize finger-tight, color-coded fittings
- Fixed installations: Standard hex-nut PEEK may suffice
Pro tip: Always pair PEEK tubing with PEEK fittings. Metal ferrules can over-compress PEEK tubing, causing flow restriction or micro-fractures.
The HPLC landscape is evolving—and PEEK innovation is keeping pace:
- Hybrid PEEK-silica capillaries: Fused silica cores with PEEK jackets for <1 µL dead volume and >500 bar tolerance.
- Additive manufacturing: 3D-printed PEEK manifolds for custom flow cells and multi-port selectors (PRES offers pilot-scale production).
- Smart connectors: Embedded RFID tags for automated asset tracking and preventive maintenance alerts.
- Sustainability: Bio-based PEEK precursors and closed-loop recycling programs (PRES R&D roadmap 2026–2028).
As a vertically integrated Chinese manufacturer, Dongguan PRES Group delivers:
- End-to-end control: From resin compounding to final QA testing
- OEM flexibility: Custom geometries, logos, packaging, and kitting
- Scalability: 50K–500K units/month with <4-week lead times
- Regulatory support: Documentation for FDA 21 CFR Part 11, EU MDR, and REACH compliance
Client testimonial (anonymized):
"PRES's PEEK fittings cut our HPLC downtime by 60%. Their engineering team co-developed a low-dead-volume adapter that solved a persistent peak-splitting issue in our QC lab."
1. Audit your current connections: Identify any stainless steel components in bio-LC or ion chromatography paths.
2. Request a PRES compatibility assessment: Share your solvent list and pressure profile—we'll recommend optimal PEEK grades.
3. Pilot-test with sample kits: Evaluate finger-tight vs. wrench-tight designs in your workflow.
4. Scale with confidence: Leverage our ISO 9001/13485-certified production for batch consistency.
Ready to upgrade? Contact PRES for a free PEEK connector selection guide and sample kit tailored to your HPLC application.
Q1: What is the maximum pressure rating for PEEK HPLC connectors?
A: Standard PEEK fittings reliably handle 350–400 bar; reinforced designs reach 600 bar. Always verify with the manufacturer's pressure-temperature derating curves.
Q2: Can PEEK connectors be reused?
A: Yes—high-quality PEEK fittings (e.g., PRES finger-tight series) are rated for 50+ cycles without sealing degradation, unlike swaged metal fittings.
Q3: Are PEEK connectors compatible with all HPLC solvents?
A: PEEK resists most organics, acids, and bases—but avoid concentrated sulfuric acid, halogenated solvents at >80°C, and strong oxidizers. Request PRES's chemical resistance matrix for validation.
Q4: How do PEEK connectors reduce carryover?
A: Their ultra-smooth bore (Ra < 0.2 µm) and hydrophobic surface minimize analyte adsorption—critical for low-ng/mL quantitation in proteomics and metabolomics.
Q5: Does PRES offer custom PEEK connector designs?
A: Absolutely. We provide full OEM services: custom port configurations, integrated filters, color coding, and low-dead-volume geometries—backed by rapid prototyping and DFM feedback.
1. IDEX Health & Science. *PEEK Tubing for Life Science Applications*. 2025. [https://www.idex-hs.com/news-events/stories-and-features/detail/peek-tubing-for-life-science-applications]
2. Chrom Tech. *HPLC Tubing Selection Guide*. 2026. [https://chromtech.com/knowledge/hplc-tubing-selection-guide/]
3. AZ Big Media. *Understanding PEEK fittings: Properties, benefits and applications*. 2025. [https://azbigmedia.com/business/understanding-peek-fittings-properties-benefits-and-applications/]
4. MicroSolv. *High‑Pressure PEEK Fitting Pressure Limits*. [https://www.mtc-usa.com/kb-article/high-pressure-peek-fittings-faq]
5. Inbetter Plastics. *PEEK HPLC Fittings Explained: Types, Benefits and Applications*. 2026. [https://inbetterplastics.com/peek-hplc-fittings-explained-types-benefits-and-applications-in-hplc-systems/]
6. Restek. *LC Tubing & Fitting Choices*. 2025. [https://discover.restek.com/videos-de/gnav3623/lc-tubing-fitting-choices]
7. Thermo Fisher Scientific. *PEEKsil Capillary Tubing Product Pages*. 2026. [https://www.fishersci.fi/shop/products/peeksil-capillary-tubing/10699485]
8. BioVanix. *PEEK Chromatography Column Tubing*. 2025. [https://biovanix.com/en/peek-chromatography-column-tubing/]
9. Chromasir. *Precision Meets Durability – High-Performance PEEK Finger-tight Fittings*. [https://www.mxchromasir.com/news/precision-meets-durability-chromasir-redefines-chromatography-connectivity-with-high-performance-peek-finger-tight-fittings/]
10. AON3D. *PEEK Material Properties and Applications*. 2026. [https://www.aon3d.com/material-science/peek-material-properties-and-applications/]
