Antistatic PEEK for Semiconductor Manufacturing: How To Choose The Right ESD Material

Views: 216     Author: PRES     Publish Time: 2026-08-06      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Antistatic PEEK for Semiconductor Manufacturing: How to Choose the Right ESD Material

Antistatic PEEK is polyetheretherketone compounded with a conductive or charge-controlling filler system, specified by surface resistivity — commonly 106–109 Ω/sq for static-dissipative duty and 109–1012 Ω/sq for high-resistance antistatic duty — so wafer carriers, test fixtures and cleanroom tooling shed charge gradually instead of accumulating it. Choosing the right ESD material is not about picking the lowest resistance: it is about matching the resistance band to your grounding architecture, then verifying that the base resin survives the thermal, chemical and cleanliness demands of the semiconductor environment. This guide walks through the four resistance roles, where antistatic PEEK fits, and a four-step selection process used for semiconductor components.

Content Menu
● Why Static Is a Semiconductor Risk >> Surface Resistance: Four Material Roles >> What Makes High-Resistance Antistatic PEEK Different >> Antistatic vs Standard vs Conductive PEEK >> Where Antistatic PEEK Adds Value >> How to Select the Right ESD PEEK >> Common Selection Mistakes >> FAQ

Why Static Electricity Is a Semiconductor Manufacturing Risk

Static electricity is invisible, but its consequences in a fab are not:

  • Immediate ESD failure — a discharge imperceptible to a person can punch through thin gate oxides, sensors and other microelectronic structures.

  • Latent ESD damage — a component passes initial test but carries internal damage that surfaces as premature field failure.

  • Particle attraction — charged surfaces pull airborne particles onto wafers during handling, lithography, inspection and packaging.

  • Process instability — repeated electrostatic events degrade yield, equipment reliability and lot consistency.

The risk extends well beyond the wafer itself: carriers, end effectors, test sockets, guides, fixtures, robot components and packaging tools all generate or transfer charge through friction, separation, vibration and contact. A material therefore has to do more than "resist static" — it must also survive the process environment, which is exactly where the base resin matters as much as the filler.

Surface Resistance: Four Material Roles

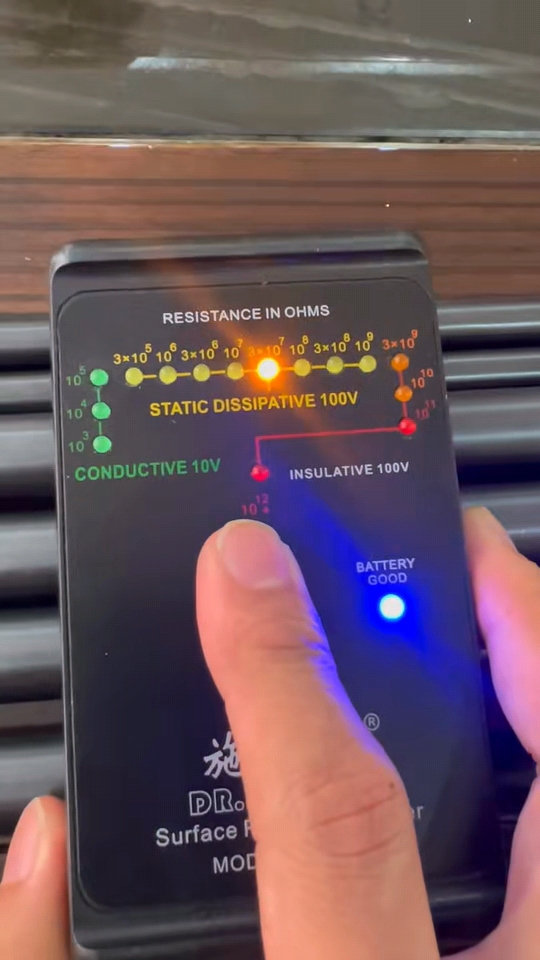

Surface resistivity is expressed in ohms per square (Ω/sq) — not to be confused with volume resistivity in Ω·cm — and the four functional bands look like this:

Material category Typical resistance range* Primary behavior Typical use logic
Conductive Below 105 Ω/sq Moves charge rapidly to ground Grounded components requiring fast charge removal
Static dissipative 106–109 Ω/sq Releases charge in a controlled way Fixtures and tools that directly handle ESD-sensitive devices
Antistatic (high-resistance ESD) 109–1012 Ω/sq Reduces charge generation; slow, controlled release Static control without creating a highly conductive path
Insulative Above 1012 Ω/sq Retains charge easily Applications where electrical insulation is the overriding requirement

*These ranges are a practical engineering guide, not a universal classification — definitions vary by standard (e.g. IEC 61340 / ANSI/ESD), test method, humidity, electrode geometry and customer specification.

The principle that matters most: lower resistance is not automatically safer. A highly conductive material can create an unwanted current path; a highly insulating material can accumulate charge. Selection has to start from the electrical design of the tool, not from a resistance number alone.

What Makes 109–1012 Ω/sq Antistatic PEEK Different

Some semiconductor applications need a material with deliberately high resistance — high enough to preserve electrical isolation, but controlled enough to keep charge from piling up. That is the design gap high-resistance antistatic PEEK fills. It is not a replacement for conductive or static-dissipative PEEK; it addresses a different requirement set:

  • Static control without a strong conductive path

  • Electrical insulation with reduced charge accumulation

  • High-temperature performance retained from the base resin

  • Low particle generation and low outgassing potential

  • Mechanical durability and dimensional stability

Controlled charge release instead of rapid grounding

Static-dissipative materials are the right call when a reliable grounding path exists. High-resistance antistatic PEEK works differently: it reduces triboelectric charge generation during sliding, contact and separation; allows gradual leakage through a controlled high-resistance pathway; limits the sudden discharge energy that can harm sensitive devices; and preserves insulation where electrical isolation is still required. This is the relevant profile for insulating guides, precision fixtures, inspection components and handling parts that cannot simply be strapped to ground.

PEEK performance remains central

The filler changes the electrical behavior; the base resin carries everything else. Unfilled PEEK (polyetheretherketone) brings a melting point of 343°C, a glass transition of 143°C, continuous service around 260°C, low moisture absorption, strong chemical resistance to cleaning agents, inherent flame resistance, and the machinability needed for precision components. A proper ESD grade keeps these properties while adding the charge-control network — which is why PEEK-based ESD materials sit in a different tier from ESD-modified commodity plastics. Grade-level property data is in our PEEK material selection guide.

Antistatic PEEK Compared with Standard and Conductive PEEK

Requirement Standard PEEK Conductive / dissipative PEEK High-resistance antistatic PEEK
Electrical behavior Strong insulator Controlled charge dissipation Reduced charge accumulation with limited conductivity
Typical resistance Often above 1012 Ω/sq Often 106–109 Ω/sq Often specified 109–1012 Ω/sq
Grounding requirement No charge drainage Usually benefits from grounding Suitable where grounding is limited
Mechanical properties Baseline PEEK Change with carbon or other fillers Depend on formulation and additive system
Best fit Electrical insulation Direct ESD control Insulation plus static-risk reduction
Main caution Charge accumulation Filler effects on strength and machining Verify resistance stability and process suitability

"Antistatic" on its own is not a material specification. Always request the exact resistance range, the test method, the temperature and humidity at test, and the direction of measurement — two grades both labeled "ESD" can sit three decades apart. The full picture of how PEEK grades differ electrically is in our Is PEEK ESD? guide.

Where Antistatic PEEK Adds Value

Wafer handling and transport components

Wafer carriers, guides, nests and handling fixtures must combine low particle generation, wear resistance, dimensional stability, controlled electrostatic behavior and resistance to cleaning chemicals — over thousands of cycles. Machined-from-sheet PEEK components are the standard route here; see our ESD PEEK sheet for grades and thicknesses.

Semiconductor test fixtures

Test sockets, probe fixtures, alignment components and burn-in tooling need precise tolerances held over temperature swings. A high-resistance ESD grade fits when the fixture must limit static charge without compromising electrical isolation — typical for rod-machined insulating pins, bushings and socket bodies; see our ESD PEEK rods.

CMP and precision wear components

Chemical mechanical planarization and related processes combine severe wear, chemical exposure and particle-control demands on retaining rings, carriers and rings. PEEK-based ESD materials are widely used in these roles, and service life depends heavily on the exact grade and operating conditions — validate against your process, not the datasheet alone.

Packaging, trays and component protection

After assembly, components stay vulnerable through storage and transport. ESD-safe PEEK is used for reusable packaging inserts, precision trays and protective tooling — and for molded volumes of the same, our ESD PEEK granules support injection molding at production scale.

How to Select the Right ESD PEEK: Four Steps

Start from the application, not the material name:

1. Define the electrical objective

Must charge be removed quickly, or only prevented from accumulating? Must the part stay electrically insulating? Is grounding available and acceptable? Does the part touch ESD-sensitive devices directly? And is your spec written in surface resistance, volume resistance, or both — these are different quantities and both should be stated.

2. Establish the operating environment

Document the temperature range, humidity range, cleaning chemicals, vacuum or low-pressure exposure, wear and friction conditions, particle and outgassing limits, sterilization or radiation exposure, and required service life. Measured resistance moves with environment — a lab value may not represent behavior in a dry cleanroom, a heated chamber or a chemical process.

3. Match form and manufacturing method

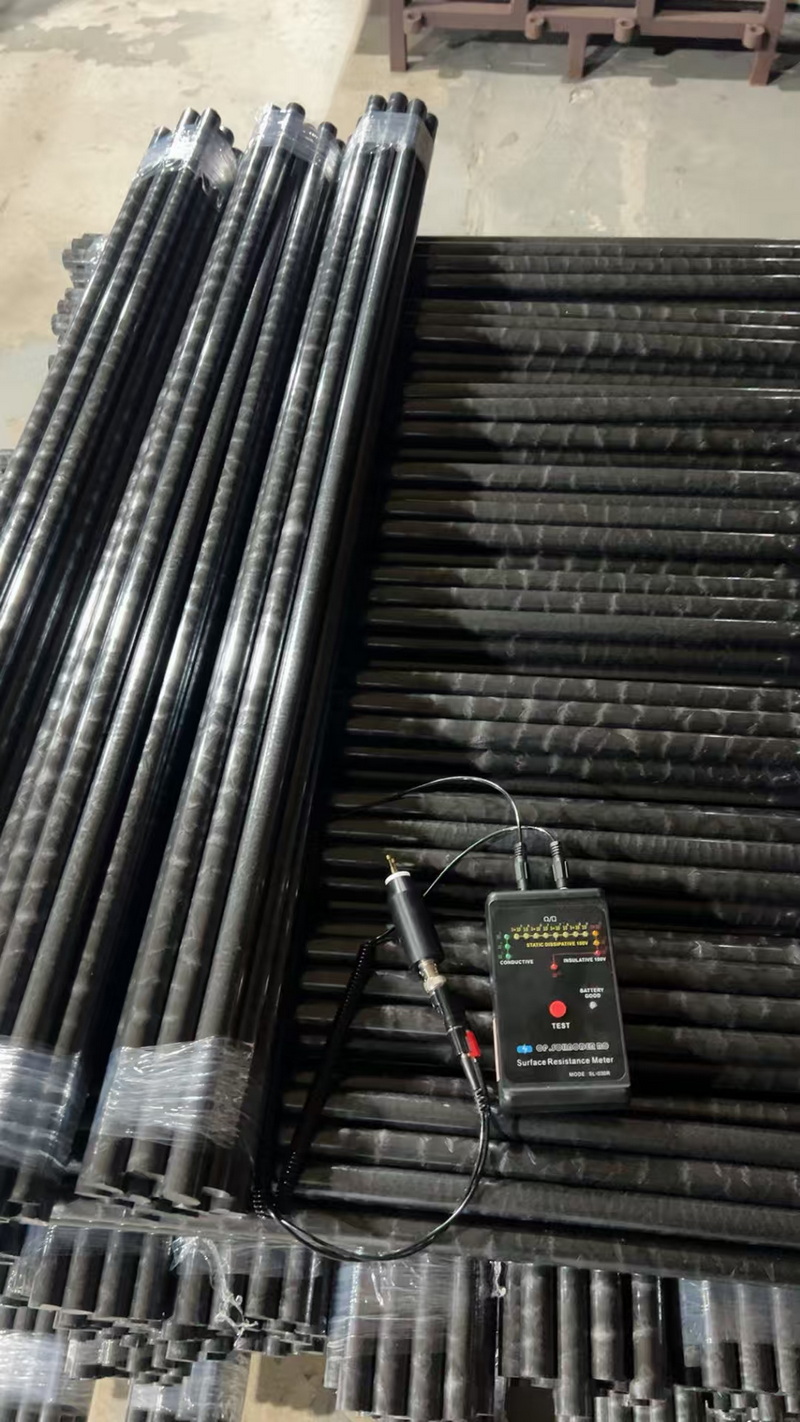

PRES supplies ESD PEEK as PEEK pellets for molding, sheet and rod for machining, and finished CNC-machined or injection-molded components. For prototypes and low-volume precision parts, CNC machining gives flexibility; for repeat production, molding cuts unit cost once geometry and volume justify the tooling.

4. Verify the complete material package

Before approving a grade, request the technical datasheet, resistance test results (at temperature and humidity), lot-to-lot consistency data, cleanliness or particle data where applicable, chemical compatibility information, and traceability documentation. A supplier's claim that a material is "ESD-safe" is not a specification until it is measurable — and resistance should be re-tested on finished parts after machining, since surface condition, cleaning and heat exposure all move the final reading.

Common Selection Mistakes to Avoid

  • Choosing the lowest resistance automatically — the required resistance depends on grounding and electrical design, not on a "lower is safer" reflex.

  • Treating all PEEK grades as identical — filler systems change conductivity, strength, wear and machinability in different directions.

  • Ignoring surface contamination — additives, machining residues, packaging and cleaning agents all affect cleanroom suitability.

  • Using one resistance value for every condition — temperature and humidity move the measured number; specify the test conditions.

  • Skipping application testing — validate in the actual contact, sliding, cleaning and thermal cycle before committing production.

  • Confusing material compliance with facility compliance — an ESD-rated component does not, by itself, establish compliance with a complete ESD control program.

FAQ – Antistatic PEEK for Semiconductor Manufacturing

Q1: Is standard PEEK antistatic?

A: No. Unfilled PEEK is a strong electrical insulator and will accumulate charge under friction or separation. Controlled static behavior requires a modified ESD grade with a dedicated filler system.

Q2: Is conductive PEEK better than high-resistance antistatic PEEK?

A: Neither is better in general. Conductive PEEK suits parts that must move charge to ground quickly; high-resistance antistatic PEEK suits parts that must control static while preserving electrical isolation. The grounding architecture of your tool decides which one is correct.

Q3: Can antistatic PEEK be used in semiconductor cleanrooms?

A: Yes, with grade validation. Confirm particle generation, outgassing, extractables, cleaning compatibility, surface condition and resistance performance under your cleanroom's actual conditions before releasing the grade to production.

Q4: What information should an ESD PEEK RFQ include?

A: Part drawing, quantity and tolerances; temperature and chemical exposure; contact materials; required resistance range and test method; cleanliness and packaging requirements; and the intended manufacturing process (machining or molding).

Q5: Can PRES supply finished ESD PEEK components, not just material?

A: Yes. PRES extrudes ESD PEEK into granules, sheet and rod, and supplies CNC-machined and injection-molded finished parts — so grade selection, machining and inspection can be handled as one engineering task with one partner.

Q6: Should resistance be tested after machining?

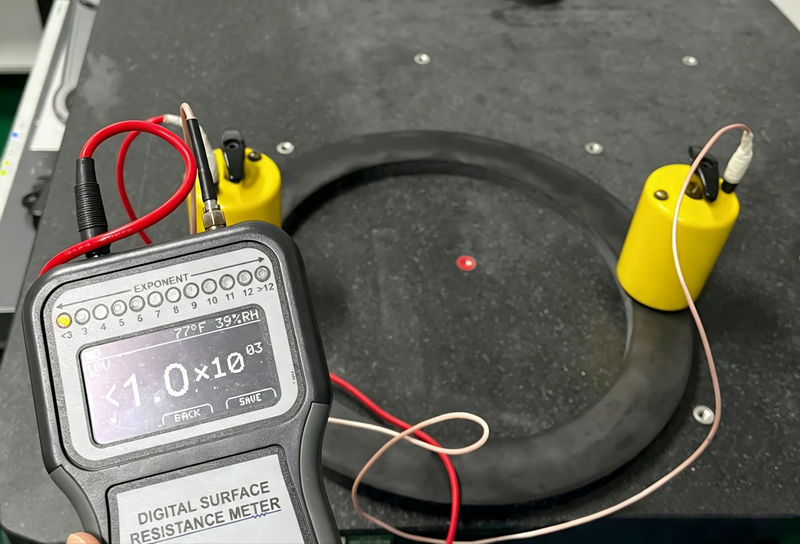

A: Strongly recommended. Machining, surface finish, cleaning and heat exposure can all shift the measured resistance of the finished part. Agree the test conditions and acceptance range before production starts.
