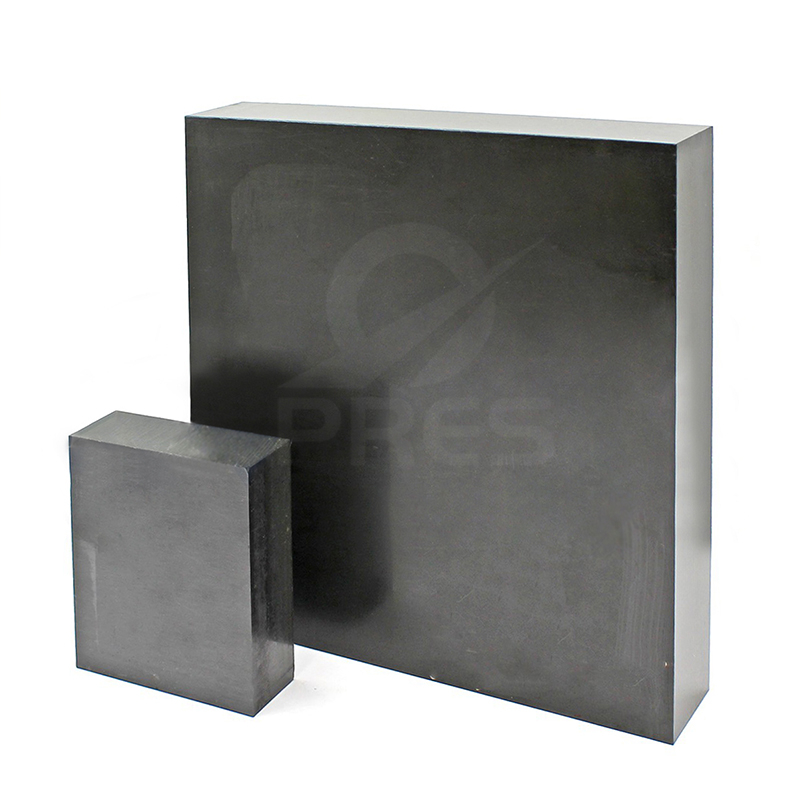

Carbon Fiber Reinforced PEEK Sheet

Name: Carbon Fiber Reinforced PEEK Sheet
Brand: PRES
SKU: 585501217
Rating: 5.0 (34 reviews)

Unfilled PEEK has good toughness. The unfilled fibers enable it to be used for manufacturing PEEK thin plates and thick PEEK plates

The thickness of PEEK resin plates ranges from 1 to 120mm, offering more dimensions than reinforced PEEK plates from 6 to 50mm

Material:	30% glass fiber reinforced PEEK
Color:	NATURE
MOQ:	1KG
Packing:	25kg/bag
Availability:

Quantity:



Inquire Add to Basket

Model:
PEEK 990G
Brand:
PRES

Product Description

PEEK GF30 Sheet Product Description

		High-temperature resistant
	1.Glass transition temperature: 143°C 2.Heat distortion temperature: 165°C 3.Long-term using temperature: 260°C 4.Short-term using temperature: 300°C 5.Melting point: 343°C
		High moulds and high tensile strength
	1.Ｇlass fiber significantly improves the tensile strength of PEEK,up to 165MPa 2.Bending modulus 11 GPa of PEEK, enabling it to withstand greater loads and stresses
		Dimensional stability and low thermal expansion
		Chemical stability

|PEEK 990G Sheet Size table

Why are there dimensional errors in PEEK boards?

For the margin of subsequent processing, the actual thickness of the PEEK plate will be thicker than that marked. You can contact us to obtain the actual measured dimensions.

Small size PEEK sheet —— only unfilled resin can reach samll thickness
Thickness MM	width*length whole sheet	Density KG/M⊃3;
1	380*1300	1.3
2	380*1300	1.3
3	380*1300	1.3
4	400*1300	1.3
5	400*1300	1.3

Standard size PEEK sheet
Thickness MM	Tolerance MM	Density KG/M⊃3;
6	+0.2-+0.7	1.3
8	+0.2-+0.7	1.3
10	+0.2-+1.2	1.3
12	+0.3-+1.5	1.3
15	+0.3-+1.5	1.3
17	+0.3-+1.5	1.3
20	+0.3-+1.5	1.3
25	+0.3-+1.5	1.3
30	+0.5-+2.5	1.3
35	+0.5-+2.5	1.3
40	+0.5-+2.5	1.3
45	+0.5-+2.5	1.3
50	+0.5-+2.5	1.3
60	+0.5-+3.5	1.3
80	+0.5-+5.0	1.3
100	+0.5-+5.0	1.3
120	+0.5-+5.0	1.3

| PEEK Sheet Classification

Unfilled pure PEEK sheet

Has excellent toughness and impact strength

Excellent fatigue resistance

Read more

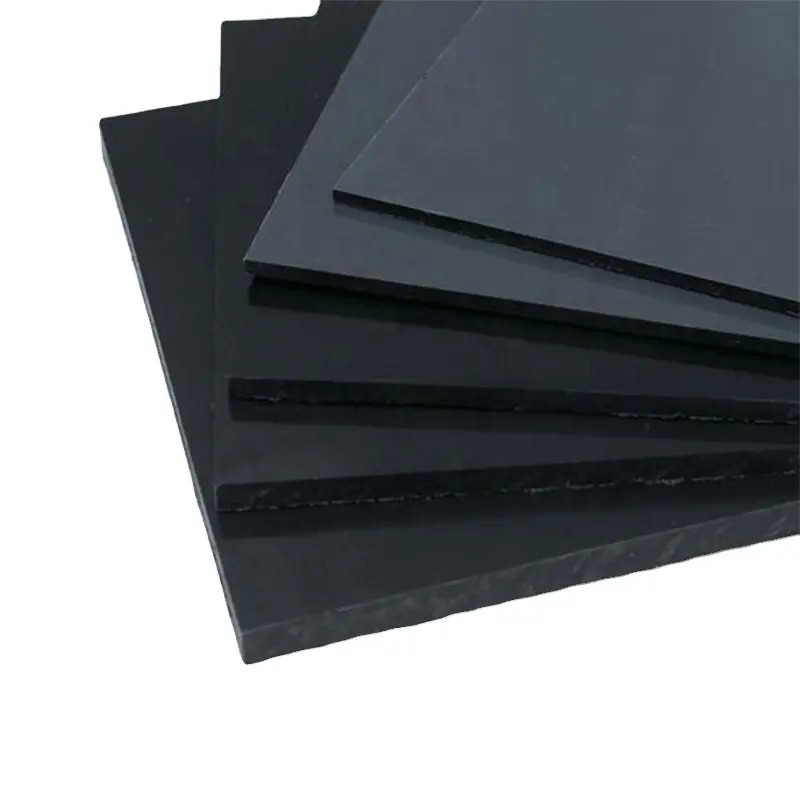

Carbon fiber reinforced PEEK sheet

Has higher elastic modulus, mechanical strength, creep resistance, and wear resistance.

Read more

正浩239 Ceramic reinforced PEEK

Excellent corrosion resistance and high mechanical strength

Read more

Shipping & Payment

We can accept US dollars, rubles, and Chinese yuan

We can ship by sea,by air and express.

UPS

DHL

FEDEX

Certifications

Data Sheet

Test Item	Test Method	Conditions	Units	Test Data
Mechanical Data
Tensile Strength	ISO 527	Yield, 23℃	MPa	100
Tensile Elongation	ISO 527	Break, 23℃	%	45
Flexural Strength	ISO 178	Yield,23℃	MPa	165
Flexural Modulus	ISO 178	23℃	GPa	4.1
Compressive Strength	ISO 604	23℃	MPa	125
Charpy Impact Strength	ISO 179/1eA	Notched	kJ m-2	7
Charpy Impact Strength	ISO 179/1U	Unnotched	kJ m-2	-
Mould Shrinkage	ISO 294-4	Along Flow	%	1
Mould Shrinkage	ISO 294-4	Across Flow	%	1.3
Thermal Data
Melting Point	ISO 11357	-	℃	343
Glass Transition (Tg)	ISO 11357	Onset	℃	143
Special Heat Capacity	DSC	23℃	kJ kg-1 ℃-1	2.2
Coefficient of ThermalExpansion	ISO 11359	Along flow below Tg	ppm K-1	45
Coefficient of ThermalExpansion	ISO 11359	Along flow above Tg	ppm K-1	120
Heat DeflectionTemperature	ISO 75	1.8 Mpa	℃	152
Thermal Conductivity	ISO 22007-4	23℃	W m-1 K-1	0.29
Flow
Melt Index	ISO 1133	380℃,5kg	g 10min-1	10
Miscellaneous
Density	ISO 1183	Crystalline	g cm-3	1.3
Density	ISO 1183	Amorphous	g cm-3	1.26
Shore D Hardness	ISO 868	23℃		85
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	24h, 23℃	%	0.07
Water Absorption（3.2mmthick Tensile Bar）（by immersion）	ISO 62	Equilibrium, 23℃	%	0.4
