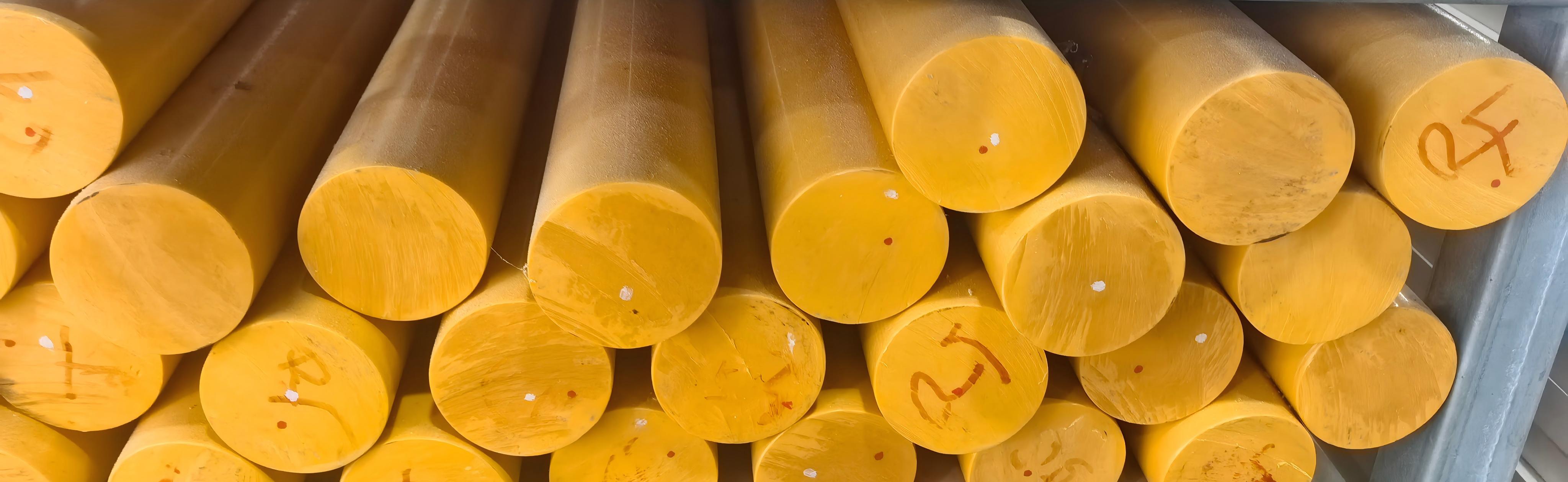

As a premier supplier of high-performance engineering plastics, we offer PPSU rods manufactured from 100% virgin pure resin.
Unlike standard plastics, our PPSU stock shapes deliver exceptional toughness, outstanding thermal stability, and inherent flame resistance.

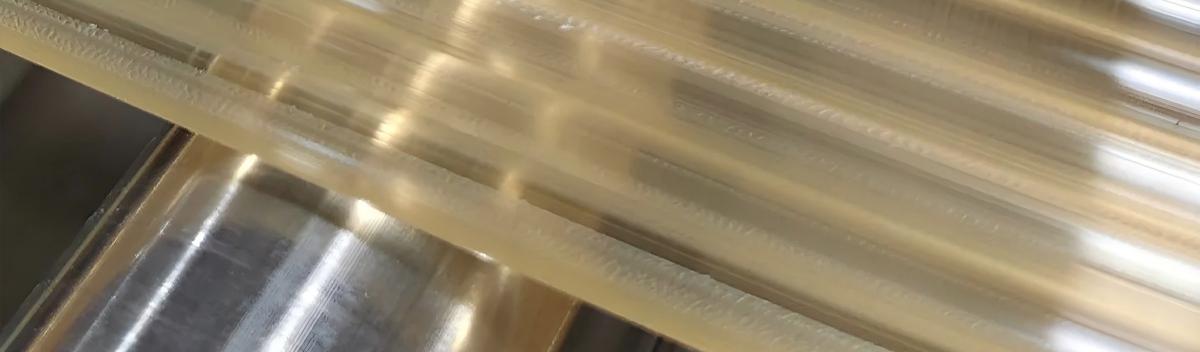

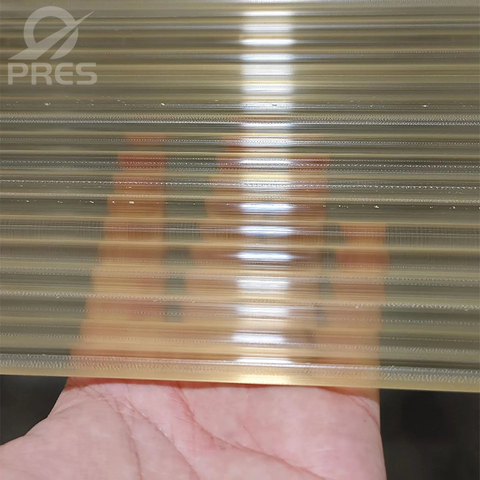

Whether you require the standard natural amber tone, easy-identification blue, or specialized purple for medical traceability, our extensive inventory ensures you find the perfect material for your precision machining and manufacturing needs.
| Feature | Specification / Description; | Benefit |
|---|---|---|
| High-Temperature Resistance | Continuous service up to 180°C (356°F). | Ideal for autoclaving, steam sterilization, and high-heat environments. |
| Hydrolysis Resistance | Exceptional resistance to hot water and steam over long periods. | Perfect for hot water fittings, medical instruments, and food processing. |
| Impact Strength | One of the highest impact strengths among all thermoplastics. | Resists cracking during machining or under heavy mechanical stress. |
| Chemical Resistance | Resistant to acids, alkalis, and various aqueous solutions. | Suitable for laboratory ware and chemical processing equipment. |
| Biocompatibility | Compliant with FDA, ISO 10993, and USP Class VI. | Safe for direct contact with food and bodily fluids. |
| Inherent Flame Resistance | UL94 V-0 rating without added halogens. | Enhances safety in electrical and transportation applications. |
While the base material properties remain consistent, we offer PPSU rods in three distinct colors to meet specific industry requirements for identification, traceability, and aesthetics.
All PPSU rods are precision-extruded to standard stock lengths of 1000mm and 3000mm, with a full diameter range from Ø5mm to Ø250mm and tight h11/h13 dimensional tolerances for roundness and straightness.
⚠️ Standard Cutting Allowance: We reserve a 3mm universal machining allowance on all saw-cut PPSU rod blanks. This ensures sufficient material for final CNC turning/milling to achieve your required finished dimensions without stress-induced deformation. For diameters exceeding 150mm, a 4mm allowance is recommended to account for additional thermal expansion during machining.
All stock shapes are supplied ready for dry machining or air-cooled cutting—never use liquid coolants during sawing or CNC processing to avoid stress cracking.
Pre-Treatment: Dry at 140–160°C for 4–6h (max. moisture 0.02%) prior to machining. Stress-relieve annealed stock at 120–150°C for 2–4h, then cool slowly to prevent post-machining cracking.
Cutting Data: Turning speed 100–200 m/min; feed 0.1–0.2 mm/r (rough) / 0.05–0.1 mm/r (finish); depth of cut 0.5–2.0 mm (rough) / 0.1–0.5 mm (finish). Use uncoated fine-grain carbide (ISO K10–K20) with 0–5° rake, 6–8° clearance, and nose radius ≥0.5mm.
Execution: Dry cut or compressed-air cooling only—never liquid coolant. Support workpieces with steady rests for L/D >10. Post-machine anneal at 120–150°C for 2–4h to relieve residual stress.
All PPSU rods are extruded from 100% virgin resin; high-temperature stable color masterbatches provide visual traceability without altering base material properties (180°C continuous service, UL94 V-0, 1000+ autoclave cycles). For per-color diameter ranges, certification batches, and application-specific guidance:

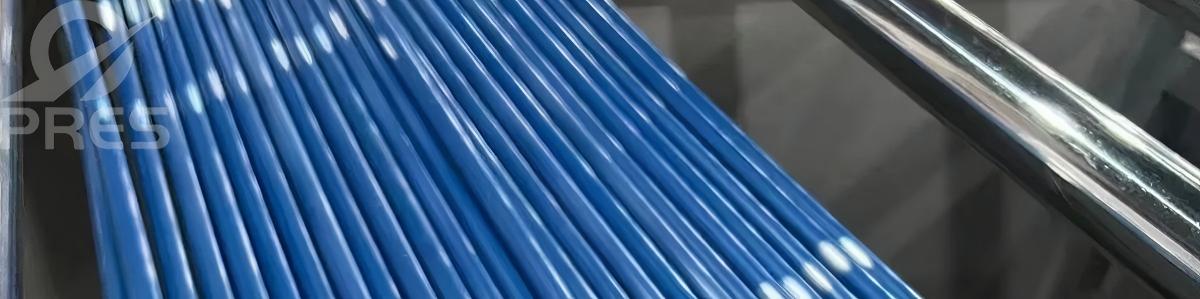

Blue PPSU Rods

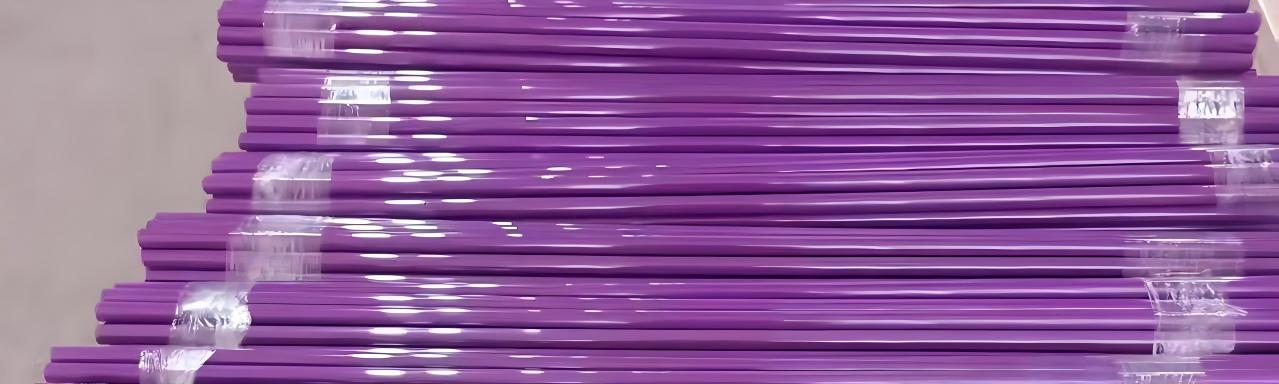

Purple PPSU Rods

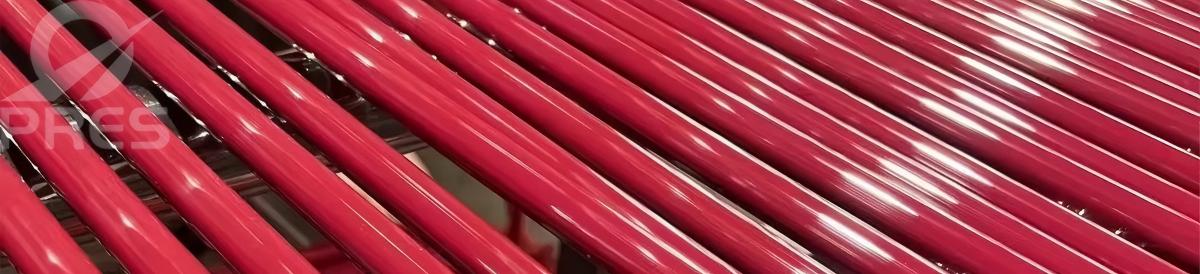

Red PPSU Rods
PPSU rods are premium engineering stock shapes, ideal for CNC machining high-performance components across critical industries.
| PHYSICAL | SI Metric | TEST |
| Specific gravity | 1.30 g/cm³ | ISO 1183 |
| Water absorption | 0.4 % | ISO 62 |
| Rockwell hardness | 122 R | ISO 2039-2 |
| MECHANICAL | SI Metric | TEST |
| Tensile Strength | 77 MPa | ISO 527 |
| Tensile Modulus | 2410 MPa | ISO 527 |
| Tensile Elongation | 8 % | ISO 527 |
| Flexural Strength | 98 MPa | ISO 178 |
| Flexural Modulus | 2460 MPa | ISO 178 |
| Impact Strength, Izod | 62 KJ/m² | ISO 180 |
| THERMAL | SI Metric | TEST |
| (1.8MPa) Heat Deflection Temperature | 198 °C | ISO 75 |
| Max Service Temperature | 220 °C | 20000H |
| Vicat softening temperature | - °C | ISO 306 |
| Melting point | 385 °C | ISO 3147 |
| Flammability | V-0 @ 3mm | UL94 |
| ELECTRICAL | SI Metric | TEST |
| Surface Resistivity | ≥1E15 Ω | IEC 600093 |
| Volume resistivity | ≥1E16 Ω | IEC 600093 |
| Dielectric constant | 3.8 | IEC 60250 |
| Dielectric strength | 44 KV/mm | IEC 60243 |
100% Virgin Resin: We guarantee no recycled or regrind material is used, ensuring consistent performance.
Strict Dimensional Control: Precision extrusion ensures roundness and straightness.
Technical Support: Our engineering team provides expert advice on machining and material selection.
Global Logistics: Fast shipping from our strategically located warehouses.
